Powermatic
1285, 12" Jointer, 3HP 1PH 230V
1285, 12" Jointer, 3HP 1PH 230V
Product SKU: 1791241
MSRP Price: $7299.99
Free Shipping Available!
Couldn't load pickup availability

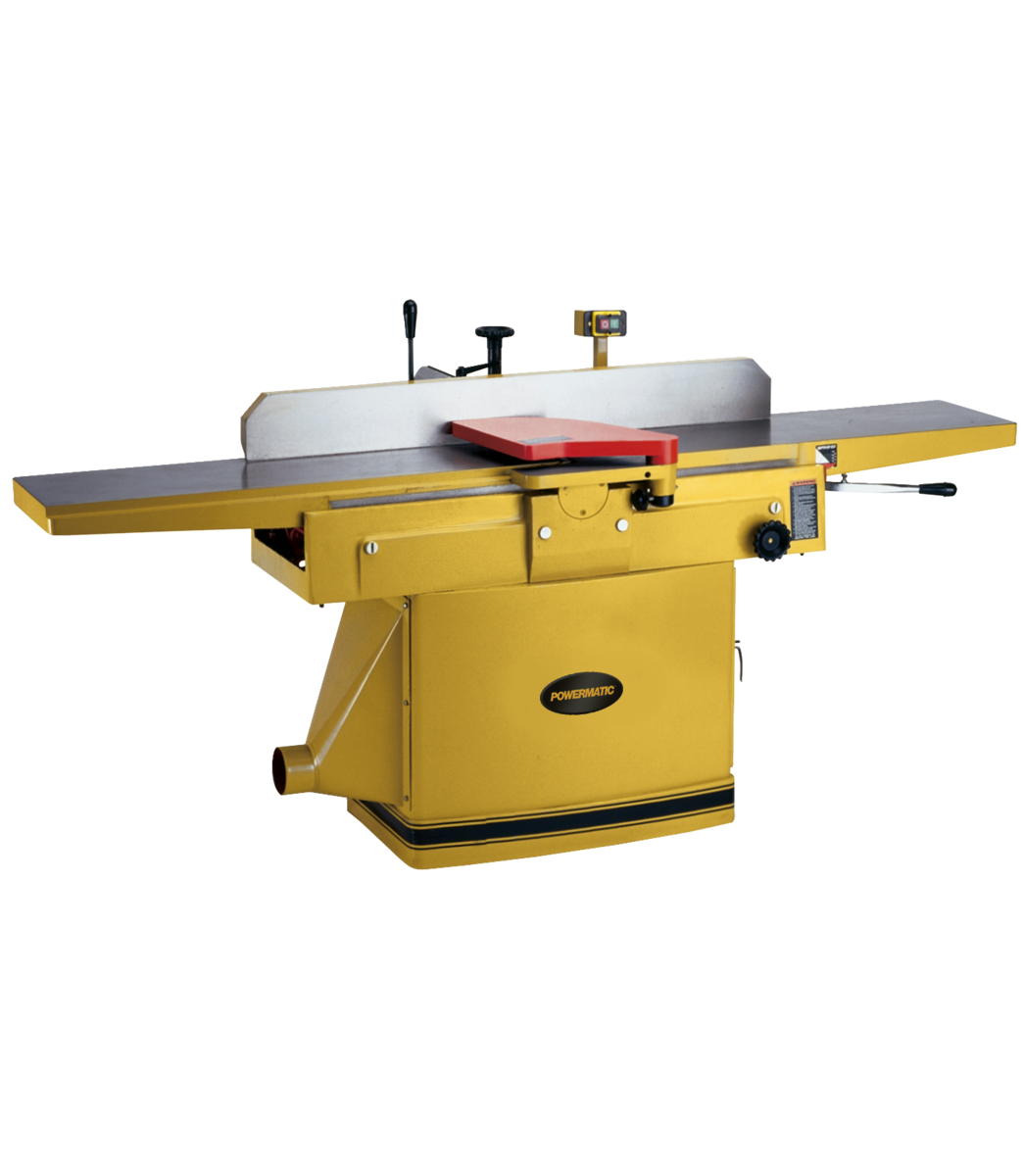

This 12" Jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. Choose either the standard straight knife cutterhead or the helical cutterhead.
SPECIFICATIONS:
| Stock Number | PM9-1791241 |
|---|---|
| Model Number | 1285 |
| Warranty | 5 Year |
| Type of Cutterhead | Straight Knife |
| Maximum Cutting Depth (In.) | 1/8" |
| Cuts Per Minute | 15,000 |
| Cutterhead Speed (RPM) | 5000.0000 |
| Cutting Capacity (W x D) (In.) | 11-3/4 x 3/4 |
| Dust Collection Minimum CFM Required (CFM) | 800 |
| Dust Port Outside Diameter (In.) | 4 |
| Number of Knives | 3 |
| Motor Power (HP) | 3 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Motor Phase | 1 |
| Recommended Circuit Size (Amps.) | 30 |
| Max.Rabbeting Capacity (In.) | 3/4" |
| Gross Weight | 880.0 |
| Net weight | 762.0 |
| Prop 65 | Cancer and Reproductive Harm |
Powermatic - 1285, 12" Jointer, 3HP 1PH 230V
Product Details
Features
Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments
Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play
Straight knife cutterhead with 3 high speed steel knives create a clean cut
Shipping Details
Shipping Type: LTL
Warranty & Legal
Warranty: 5 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
