Jet

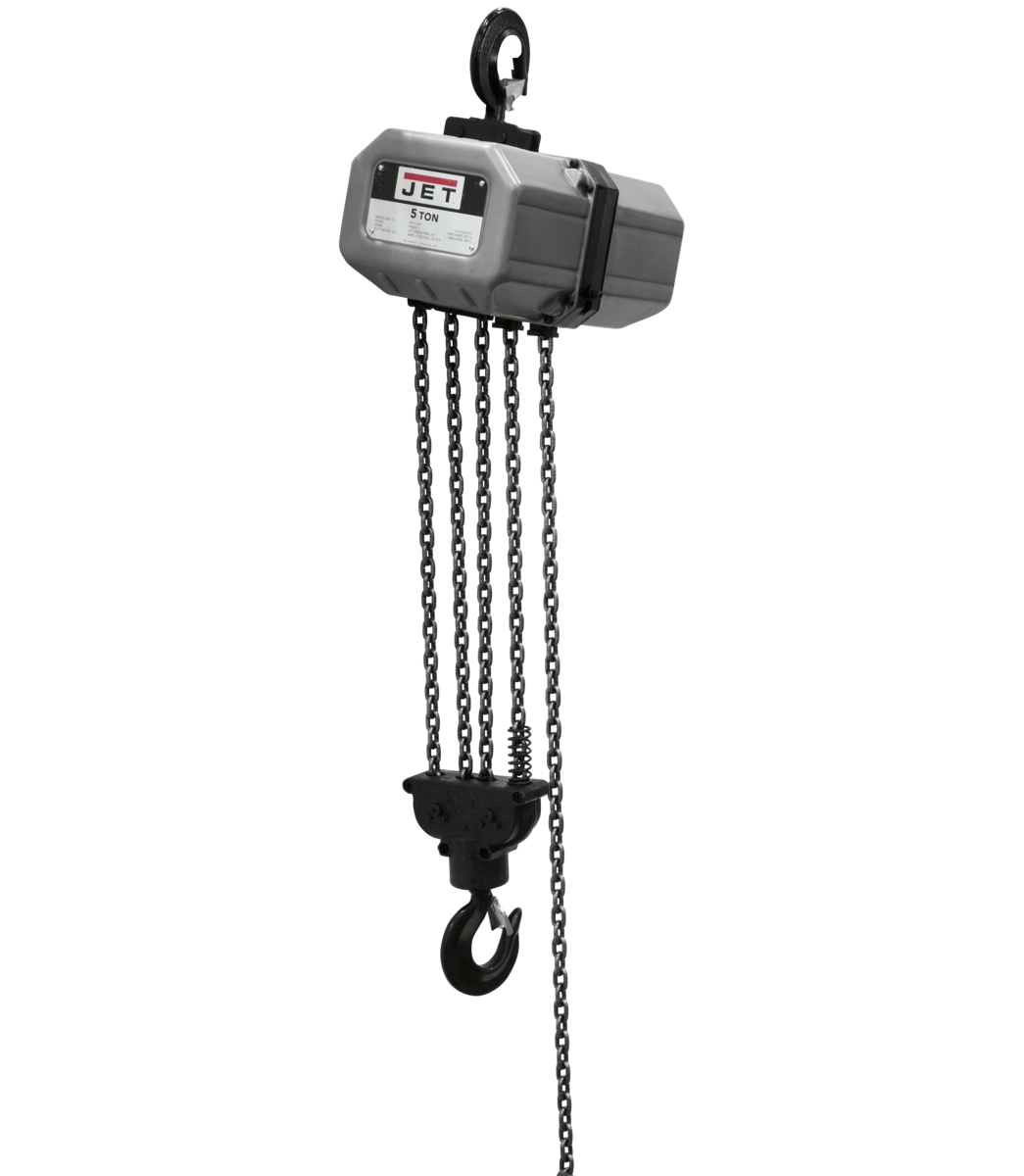

5SS-1C-15, 5 Ton, 1Ph, 15' Lift, 115/230V, Prewired 230V

5SS-1C-15, 5 Ton, 1Ph, 15' Lift, 115/230V, Prewired 230V

Product SKU: 511500

MSRP Price: $6103

Regular price $6,103.00 USD
Regular price $6,103.00 USD Sale price $6,103.00 USD
Sale Sold out

Free Shipping Available!

JET® SSC Series Electric Hoists combines safety and durability to operate in commercial and industrial applications. All models incorporate a slip clutch overload protection mechanism that prevents the hoist from lifting damaging loads above its rated capacity. They are available in single or three phase configurations to suit your electrical needs. Single phase models have a thermal overload protection design that keeps the hoist from overheating, while the three phase models feature a reverse phase relay that protects the hoist from incorrect wiring. The industry proven DC electro-magnetic brake increases safety by holding the load even when power is interrupted. The maintenance-free gear train incorporates a sealed oil bath, for reliability and durability. The JET® SSC Series Electric Hoist is available in ½ ton to 5 ton capacities with standard lifts of 10, 15, and 20 feet (custom lifts available).

Stock Number 511500
Capacity (Lbs.) 6600
Duty Cycle (%) 25
Duty Cycle Rating H3
Lift (Ft.) 15
Lifting Speed (FPM) 4.9
Load Capacity (Tons) 5
Max. Number of Starts (Per Hr.) 150
Max. On Time (Min. / Hr.) 15
Model Number 5SS-1C-15
Motor (HP) 1-3/4 HP, 230V, 1 Ph
Prop 65 Cancer and Reproductive Harm
Weight (Lbs.) 238
Headroom (In.) 30-11/16
Overall Width (In.) 11.81
Motor Current (Amps) 16
Enhanced Bullet 4 ELECTROMAGNETIC BRAKE: An industry-proven safety feature that secures the load even if power is interrupted to the hoist.
View full details

Jet - 5SS-1C-15, 5 Ton, 1Ph, 15' Lift, 115/230V, Prewired 230V

Product Details

Features

- 24 volt push button controller with cable strain relief system for durability and reliability
- All steel construction
- NEMA 4X compliant push button control pendants
- Durable powder coat finish
- Grade 80 Load Chain- Grade 80 black oxide coated load chain for durability
- Limit Switches- Upper and lower limiting switches increase safety by preventing the load chain from over traveling
- Sealed Gear Train- Maintenance-free gear train incorporates a sealed oil bath that eliminates upkeep
- Thermal overload protection
-
-

Shipping Details

Shipping Type: LTL

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
