Powermatic
64B, 1.75 HP 115/230V, 30" Fence with Riving Knife
64B, 1.75 HP 115/230V, 30" Fence with Riving Knife
Product SKU: 1791229K
MSRP Price: $2199.99
Free Shipping Available!
Couldn't load pickup availability

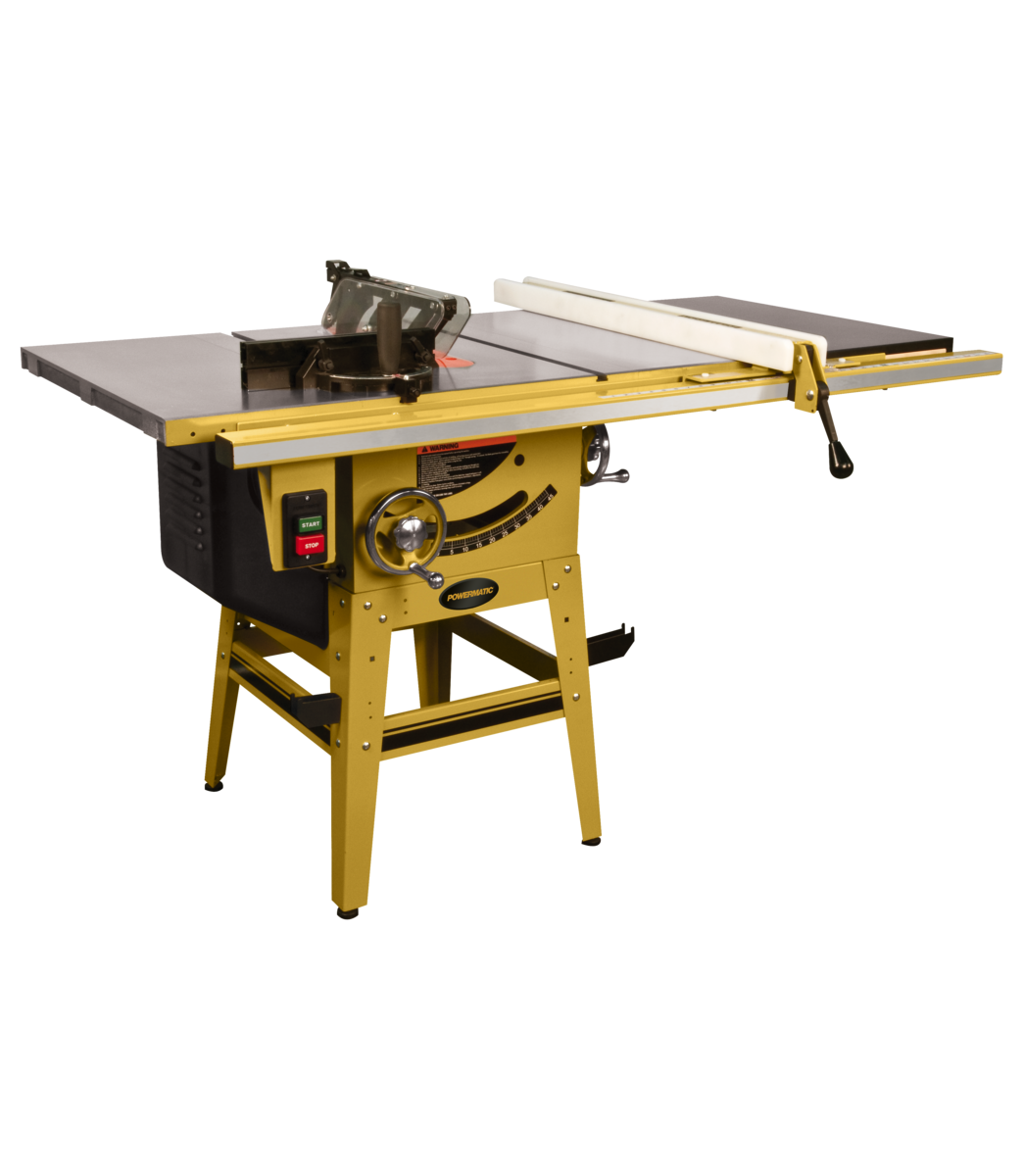

The 64B table saw, with left tilt arbor, offers 1-3/4 horsepower in dual voltage to meet the demands of the professional contractor. The transparent blade guard has independent leaves, and the quick release riving knife reduces chance of kickback. A low profile riving knife is included for non-through cuts. An arbor lock is accessed from above the table, eliminating the need for dual blade wrenches. The T-slot miter gauge has rack-and-pinion angle setting, positive stops and extension plate for expanded workpiece support. The 64B has cast iron table and wings with front edge bevel, and the working area is further expanded by the melamine-surfaced wood extension table. The exclusive Accu-Fence® system is available in 30” or 50” rip cut capacity. Storage hooks on the stand keep your accessories within reach.
SPECIFICATIONS:
| Stock Number | PM9-1791229K |
|---|---|
| Arbor Diameter (In.) | 5/8 |
| Arbor Speed (RPM) | 3800 |
| Blade Diameter (In.) | 10 |
| Dust Collection Minimum CFM Required (CFM) | 350 |
| Dust Port Outside Diameter (In.) | 4 |
| Gross Weight (Lbs) | 304 |
| Maximum Depth of Cut at 45 Degrees (In.) | 2-1/8 |
| Maximum Depth of Cut (In.) | 2-1/8 or 3-1/8 |
| Maximum Diameter of Dado (In.) | 8 |
| Maximum Rip Left of Blade (In.) | 12 |
| Maximum Rip Right of Blade (In.) | 30 |
| Maximum Width of Dado (In.) | 13/16 |
| Miter Gauge Type | T-Slot with Stops |
| Model Number | 64B-30 |
| Motor Amps | 6 |
| Motor Phase | 1 |
| Motor Power (HP) | 1-3/4 |
| Motor Voltage (V.) | 115/230 |
| Overall Dimensions (L x W x H) (In.) | 71-1/4 x 43 x 42 |
| Prewired Voltage (V.) | 115 |
| Prop 65 | None |
| Recommended Circuit Size (Amps.) | 20 |
| Style (Type) | Contractor |
| Table Height from Floor (In.) | 36 |
| Table Size (L x W) (In.) | 44-1/4 x 27 |
| Table Type | Cast Iron |
| Warranty | 5 Year |
| Gross Weight | 421.85 |
| Net weight | 366.85 |
Powermatic - 64B, 1.75 HP 115/230V, 30" Fence with Riving Knife
Product Details
Features
Blade guard and riving knife have quick release for tool-less mounting and removal
Built-in dust port increases dust collection efficiency
Cast iron trunnion ensures smooth blade positioning
Shipping Details
Shipping Type: LTL
Warranty & Legal
Warranty: 5 Year
Prop 65 (CA Only): N/A
