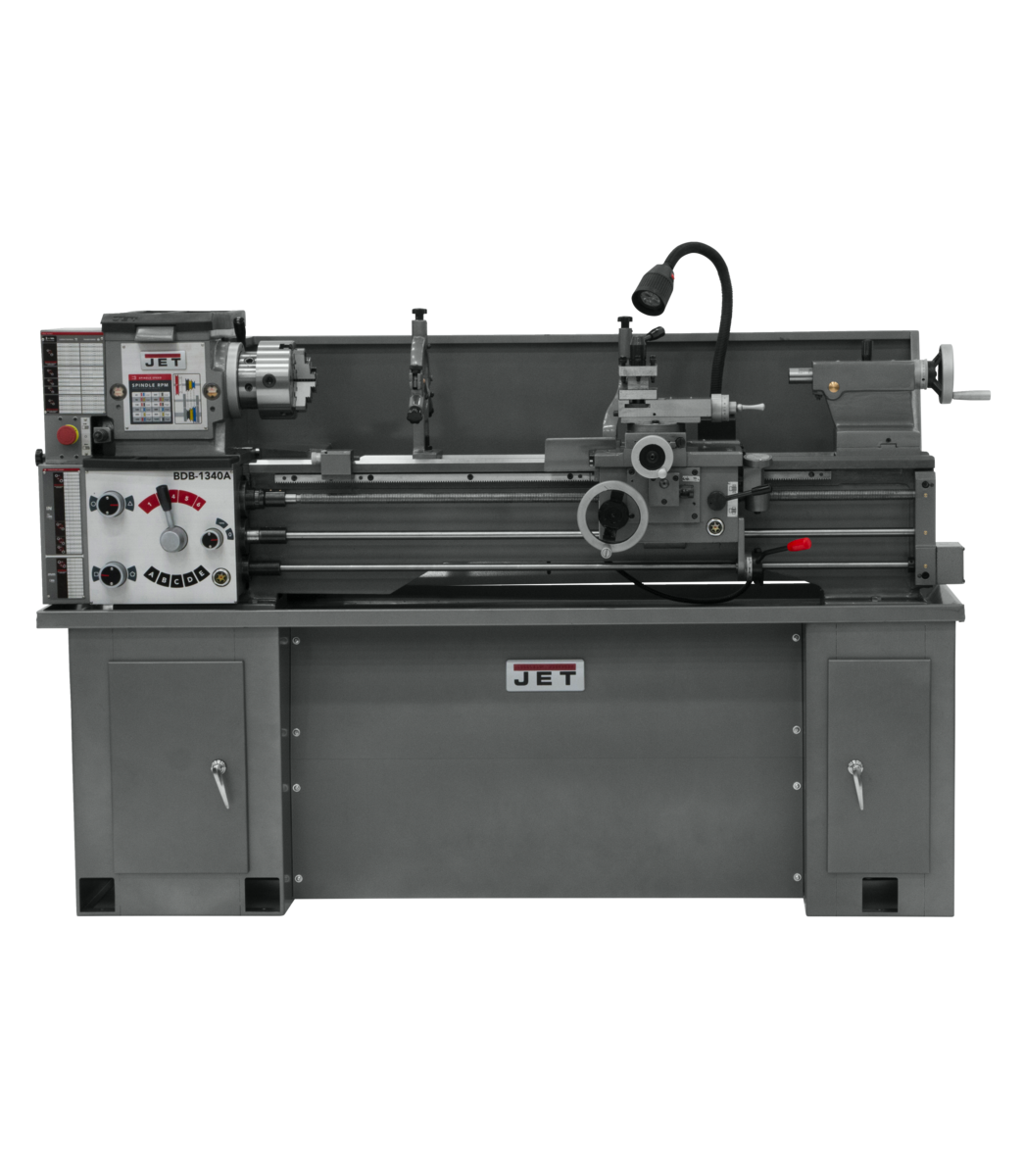

BDB-1340A With Newall DP700 DRO

BDB-1340A With Newall DP700 DRO

Product SKU: 321130

MSRP Price: $11899

Regular price $11,899.00 USD
Regular price $11,899.00 USD Sale price $11,899.00 USD
Sale Sold out

Free Shipping Available!

JET Belt Drive Bench Lathes feature an enclosed gearbox with helical cut gears for noise reduction and smooth operation. The full-length splash guard on all sizes prevents hot chips and fluid from contaminating the work area and the quick-change gearbox allows for fast and easy gear changes for metric threading. The optional bench shown in the image is compatible with JET Lathes and is available for purchase. Each JET Lathe comes loaded with features you’ve come to expect, all backed by the industry leading JET Two Year Warranty.

Stock Number 321130
Carriage Travel (In.) 35
Compound Slide Travel (In.) 2-11/16
Drive Belt
Length of Gap (In.) 8
Max Tool Size (In.) 5/8 x 5/8
Model Number BDB-1340A
Motor (HP) 2 HP, 230V, 1Ph
Number of Inch Threads 38.0000
Number of Longitudinal and Cross Feed Rates 38
Number of Metric Threads 23.0000
Number of Spindle Speeds 12
Overall Dimensions (L x W x H) (In.) 71 x 32 x 45
Prop 65 Cancer and Reproductive Harm
Range of Cross Feeds (IPR) 0.0006-0.013
Range of Inch Threads (TPI) 3-1/2 - 80
Range of Longitudinal Feeds (IPR) 0.0018-0.0374
Range of Metric Threads 0.45-10
Range of Spindle Speeds (RPM) 60 - 1,240
Size 13 x 40
Spindle Bore (In.) 1-3/8
Spindle Mount D1-4
Spindle Taper with Sleeve MT-5 (MT-3)
Steady Rest Capacity (In.) 2-5/8
Style (Type) Bench
Swing Over Bed (In.) 13
Swing Over Cross Slide (In.) 7-25/32
Swing Through Gap (In.) 18-3/4
Tailstock Spindle Travel (In.) 3-3/4
Taper in Tailstock Spindle MT-3
Weight (Lbs.) 1175
Width of Bed (In.) 7-3/8
View full details

Jet - BDB-1340A With Newall DP700 DRO

Product Details


- 6" 3-jaw direct mount scroll chuck with top reversing jaws
- Automatic feeding and threading are fully interlocked
- Carriage mounted spindle control lever
- Centers and headstock center sleeves
- Feed selectors travel in grooved ways
- Independent lead screw and feed rod
- Low voltage motor controls
- Spindle is supported by precision tapered roller bearings
- Tailstock may be offset for turning taper
- Tolerance test certificate included

Shipping Details

Shipping Type: LTL - Doc Del Only

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
