Jet

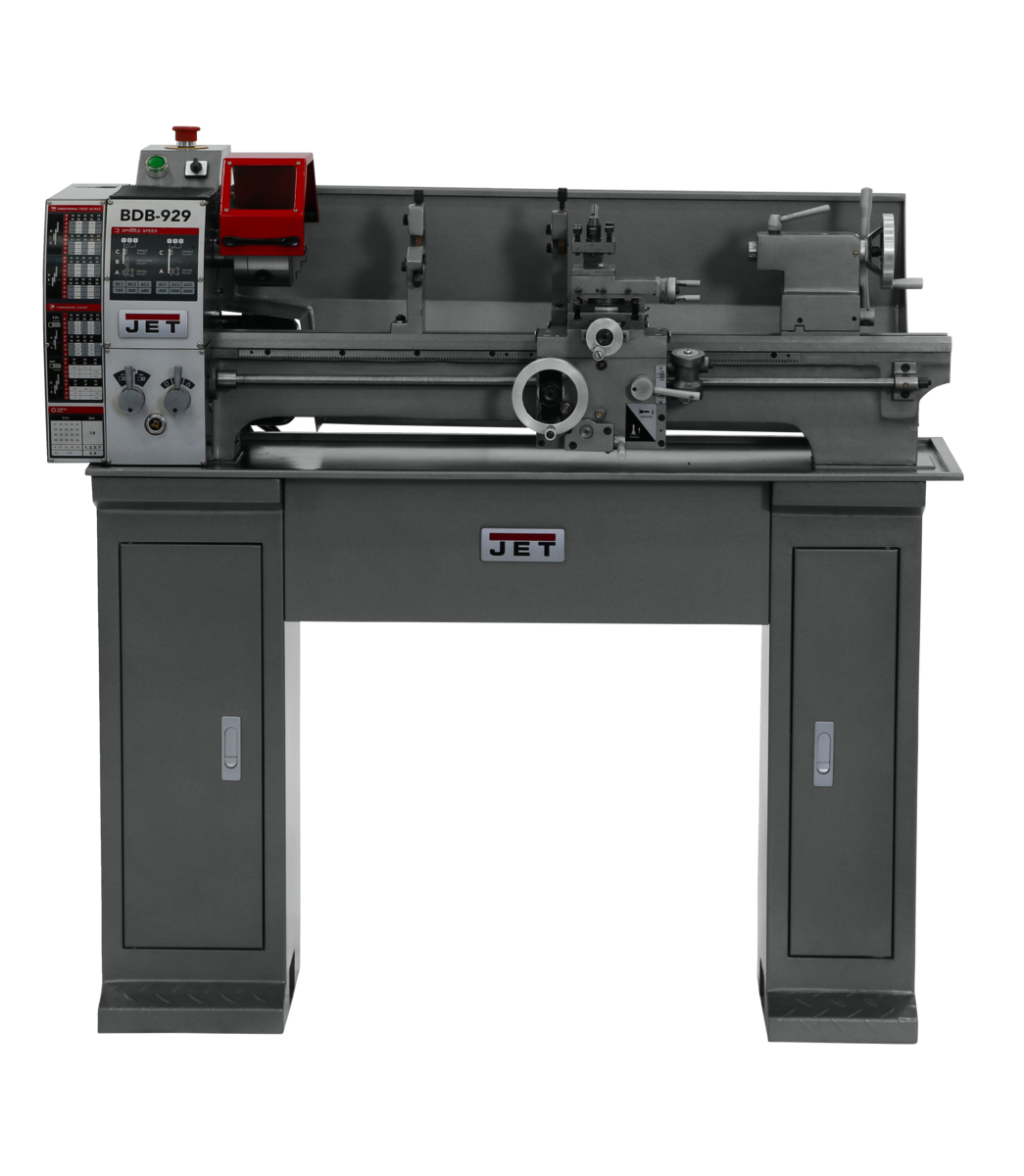

BDB-929 Belt Drive Bench Lathe 3/4HP, 115V, Single Phase with Stand

BDB-929 Belt Drive Bench Lathe 3/4HP, 115V, Single Phase with Stand

Product SKU: 321372K

MSRP Price: $4269

Regular price $4,269.00 USD
Regular price $4,269.00 USD Sale price $4,269.00 USD
Sale Sold out

Free Shipping Available!

The BDB-929 benchtop lathe is the essential step to improving your shop’s capabilities. Engineered with precision induction hardened ground bed-ways and precision tapered roller bearings the BDB-929 delivers the smooth operation and rigidity needed to craft professional pieces.

Stock Number 321372K
Carriage Travel (In.) 26.5
Compound Slide Travel (In.) 1-7/8
Max Tool Size (In.) 1/2
Model Number BDB-929
Motor (HP) 3/4 HP, 115V, 1PH
Number of Inch Threads 27.0000
Number of Longitudinal and Cross Feed Rates 60
Number of Metric Threads 12.0000
Number of Spindle Speeds 6
Overall Dimensions (L x W x H) (In.) 51x22x20
Prop 65 Cancer and Reproductive Harm
Range of Inch Threads (TPI) 8 - 56
Range of Longitudinal Feeds (IPR) 0.0006-0.0368
Range of Metric Threads 0.5 - 3.5
Range of Spindle Speeds (RPM) 130-2000
Spindle Bore (In.) 3/4
Spindle Mount 1-1/2 x 8TPI
Spindle Taper with Sleeve MT-3
Steady Rest Capacity (In.) 1-3/4
Swing Over Bed (In.) 8-3/4
Swing Over Cross Slide (In.) 5
Tailstock Spindle Travel (In.) 1-9/16
Taper in Tailstock Spindle MT-2
Weight (Lbs.) 287
Width of Bed (In.) 4-1/2
View full details

Jet - BDB-929 Belt Drive Bench Lathe 3/4HP, 115V, Single Phase with Stand

Product Details

Features

- Backlash adjustments provided throughout the carriage
- Emergency stop within easy reach of the Operator
- Full Length Splash Guard
- Induction hardened and ground bedway
- Power longitudinal feed allows threading and reverse threading
- Quick change gearbox provides wide range of inch and metric threads
- Reversing switch for added versatility
- Safety on/off switch
- Spindle supported by precision tapered roller bearings
- Standard Accessories

Shipping Details

Shipping Type: Parcel

Warranty & Legal

Warranty: N/A
Prop 65 (CA Only): Cancer and Reproductive Harm
