Jet

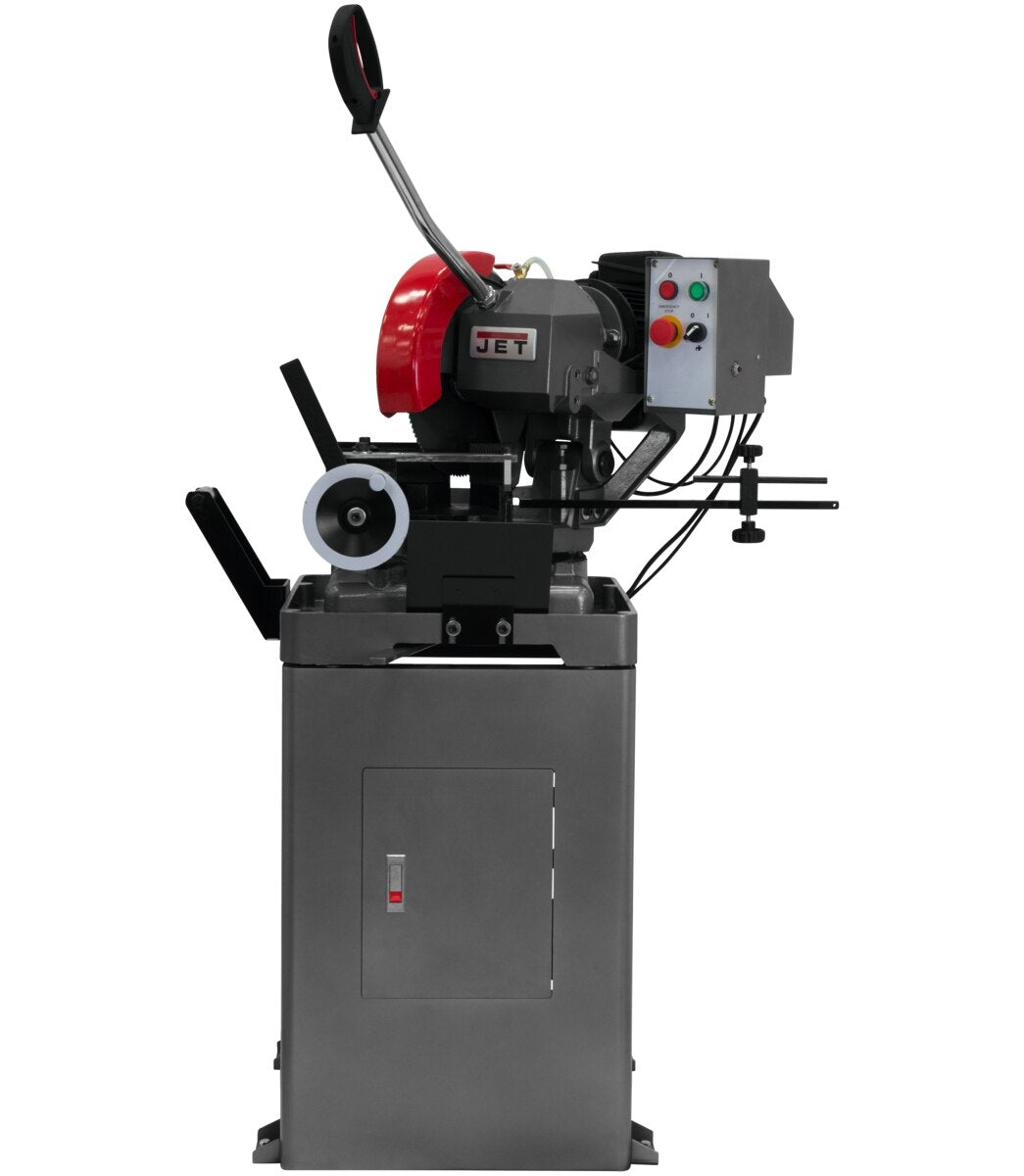

CS-315, 315mm 1-Phase Ferrous Manual Cold Saw

CS-315, 315mm 1-Phase Ferrous Manual Cold Saw

Product SKU: 414229

MSRP Price: $4278.57

Regular price $3,299.00 USD
Regular price $3,299.00 USD Sale price $3,299.00 USD
Sale Sold out

Free Shipping Available!

JET Cold Saws deliver clean, burr-free cuts and offer machine shop and fabrication professionals a list of features and standard design characteristics that you’ve come to expect from JET. Designed with heavy-duty cast iron frame base which offers easy access storage and provides a stable cutting platform. All backed by the industry leading full service Two Year Warranty.

Stock Number 414229
Blade Speeds (RPM) 54.0000
Maximum Vise Opening (In.) 4-11/16
Model Number CS-315-1
Motor (HP) 2HP, 230V, 1Ph, 13.2Amps
Prop 65 Cancer and Reproductive Harm
Solid Rectangle at 45 Degrees (In.) 3-3/16 x 2-19/32
Solid Rectangle at 90 Degrees (In.) 4 x 3-3/16
Solid Round at 45 Degrees (In.) 3-1/2
Solid Round at 90 Degrees (In.) 3-1/2
Solid Square at 45 Degrees (In.) 2-19/32 x 2-19/32
Solid Square at 90 Degrees (In.) 3-3/16 x 3-3/16
Style (Type) Ferrous
Tubing Rectangle at 90 Degrees (In.) 4 x 3-3/16
Tubing Round at 45 Degrees (In.) 3-1/2
Tubing Round at 90 Degrees (In.) 3-1/2
Weight (Lbs.) 420
Enhanced Bullet 4 MAXIMUM TORQUE: Hardened and ground direct-drive worm shaft, and bronze worm wheel, transmits maximum torque to the saw blade.
View full details

Jet - CS-315, 315mm 1-Phase Ferrous Manual Cold Saw

Product Details

Features

- 315mm (12") Ferrous Cold Saw for steel, stainless and tough to cut alloys
- Blade drive reduction gearbox operates in an oil bath for increased durability
- Flood coolant system with a 1-1/3 Gallon coolant reservoir and pump with flow control system extends blade life
- Fully adjustable material depth stop for sawing repeatability and increased production
- Hardened and ground direct drive worm shaft and bronze worm wheel transmits maximum torque to the saw blade
- Quick clamping cam-action vise with adjustable gib and material support bar for burr-free cutting operations
- Quick tension and release mitering capabilities with stops at 45° right, 45° left
- Spring loaded whole hand trigger starts or stops the sawing process for easy smooth cutting and increased user safety
- Two-piece cast iron blade guard system permits quick and easy blade changes without removing the guards
-

Shipping Details

Shipping Type: LTL

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
