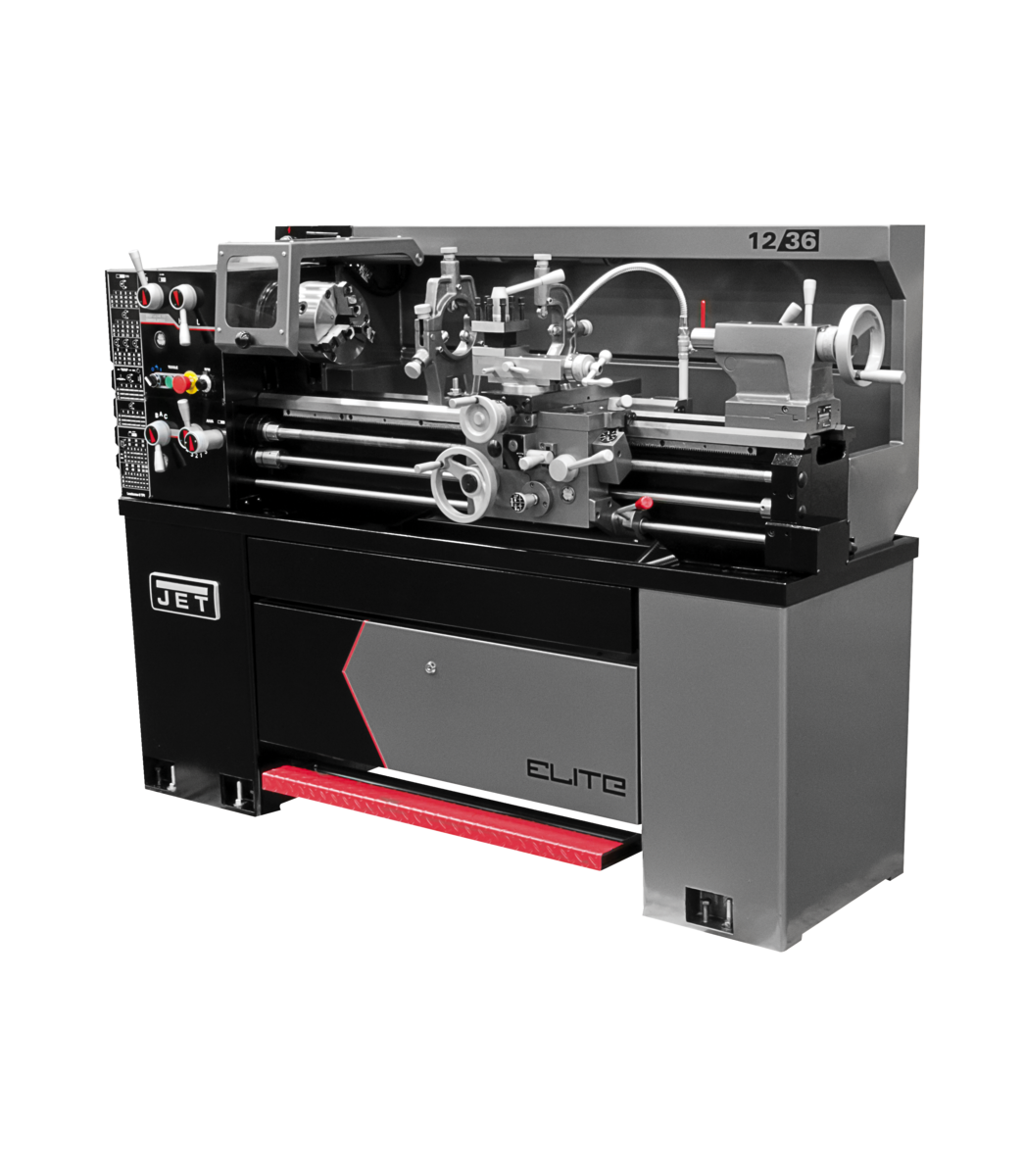

E-1236VS With ACU-RITE 303 CSS DRO With Collet Closer

E-1236VS With ACU-RITE 303 CSS DRO With Collet Closer

Product SKU: JT9-892317

MSRP Price: $19299.99

$19,299.99 USD
$19,299.99 USD $19,299.99 USD
Sale Sold out

Free Shipping Available!

Compact, powerful, perfection. These lathes have a compact footprint and feature certified Meehanite® castings, an electromagnetic brake, 3-jaw chuck, ball bearing-mounted steady and follow rests, and CNC-style lighting with enclosed splash guard. The two-speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM. Perfect for schools, small shops, and engineering labs, these lathes are CSA/CUS Certified and truly are Elite!

Stock Number 892317
Compound Slide Travel (In.) 3-1/2
Drive EVS
Length of Gap (In.) 9-1/2
Max Tool Size (In.) 1/2 x 1/2
Model Number E-1236VS
Motor (HP) 2HP, 230V,3ph
Number of Inch Threads 34.0000
Number of Longitudinal and Cross Feed Rates 50
Number of Metric Threads 33.0000
Overall Dimensions (L x W x H) (In.) 71 x 30 x 60
Prop 65 Cancer and Reproductive Harm
Range of Cross Feeds (IPR) 0.0005 - 0.015
Range of Inch Threads (TPI) 2 - 56
Range of Longitudinal Feeds (IPR) 0.0016 - 0.046
Range of Metric Threads 0.5 - 12
Range of Spindle Speeds (RPM) 0 - 2,000
Size 12 x 36
Spindle Bore (In.) 1-9/16
Spindle Mount D1-4
Spindle Taper with Sleeve MT-5
Steady Rest Capacity (In.) 1/4 - 2-1/2
Style (Type) ELITE EVS
Swing Over Bed (In.) 12
Swing Over Cross Slide (In.) 7-5/16
Swing Through Gap (In.) 17-1/2
Tailstock Spindle Travel (In.) 4
Taper in Tailstock Spindle MT-3
Weight (Lbs.) 1212
Width of Bed (In.) 7-1/2
View full details

Jet - E-1236VS With ACU-RITE 303 CSS DRO With Collet Closer

Product Details

Features

- 4-Position Carriage Stop
- Chuck guards are standard equipment on all ELITE lathes for increased safety
- Front facing chip pan allows easy chip removal from the front of the machine
- Hardened and ground gears in headstock reduce vibration and deflection
- Integrated locking tool cabinet in stand on 12" Lathe
- Inverter drive system provides infinitely variable spindle speeds
- LED RPM readout allows for precise turning speeds
- Overload clutch at feed shaft prevents the carriage from crashing into the chuck
- Steady Rest-Ball Bearing
- Variable spindle speeds

Shipping Details

Shipping Type: LTL

Warranty & Legal

Warranty: 3 Year Elite
Prop 65 (CA Only): Cancer and Reproductive Harm
