Jet

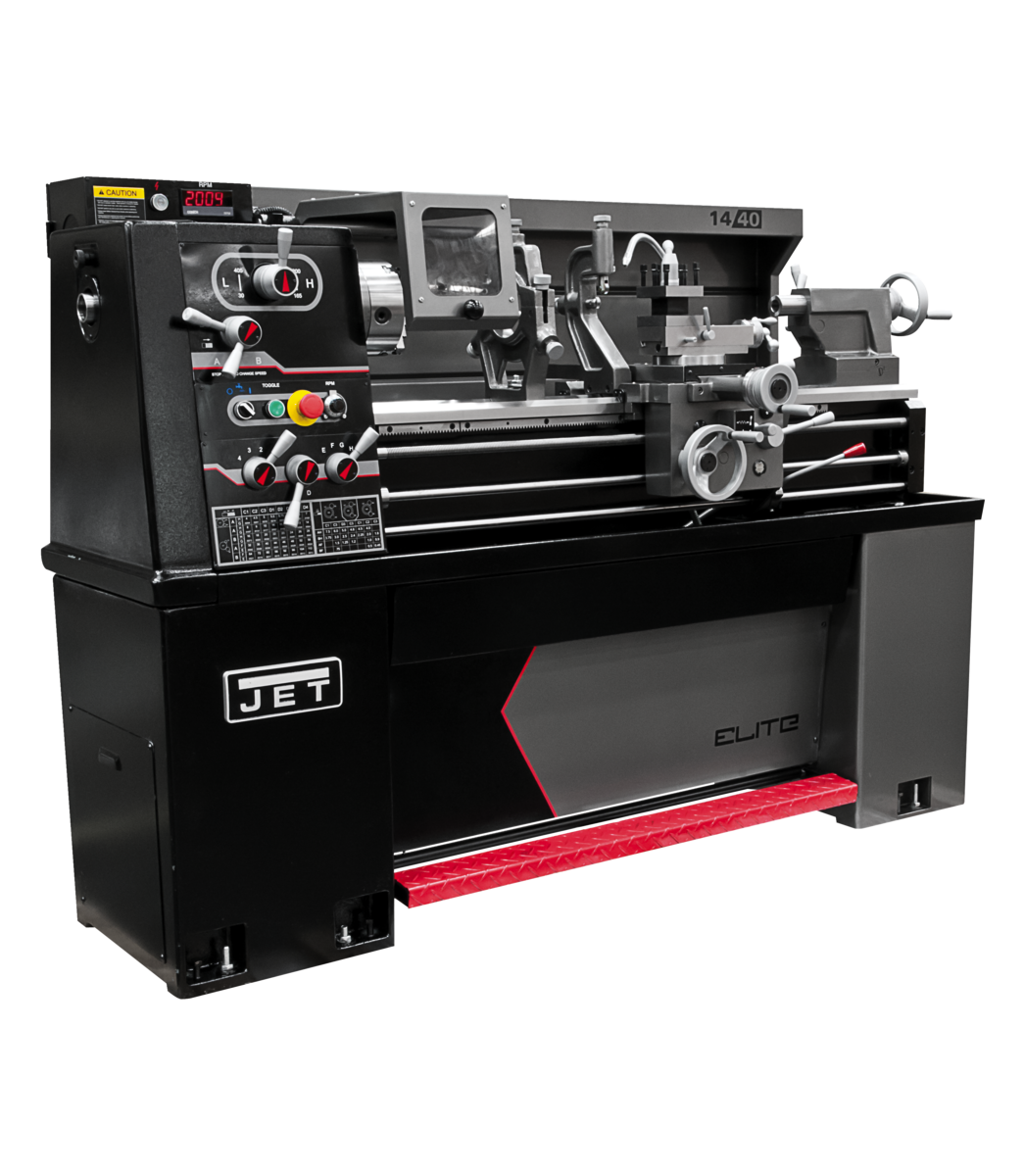

E-1340VS With Newall DP700 DRO With Taper Attachment

E-1340VS With Newall DP700 DRO With Taper Attachment

Product SKU: 892420

MSRP Price: $24886.98

$24,886.98 USD
$24,886.98 USD $24,886.98 USD
Sale Sold out

Free Shipping Available!

Compact, powerful, perfection. These lathes have a compact footprint and feature certified Meehanite® castings, an electromagnetic brake, 3-jaw chuck, ball bearing-mounted steady and follow rests, and CNC-style lighting with enclosed splash guard. The two-speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM. Perfect for schools, small shops, and engineering labs, these lathes are CSA/CUS Certified and truly are Elite!

Stock Number 892420
Amperage Draw @ 230V 3Ph 19
Compound Slide Travel (In.) 3-1/2
Drive EVS
Length of Gap (In.) 9
Max Tool Size (In.) 5/8 x 5/8
Model Number E-1340VS
Motor (HP) 3 HP, 230V, 3Ph
Number of Inch Threads 40.0000
Number of Longitudinal and Cross Feed Rates 80
Number of Metric Threads 22.0000
Overall Dimensions (L x W x H) (In.) 67 x 30 x 57
Prop 65 Cancer and Reproductive Harm
Range of Cross Feeds (IPR) 0.0003 - 0.01
Range of Inch Threads (TPI) 4 - 112
Range of Longitudinal Feeds (IPR) 0.0012 - 0.0294
Range of Metric Threads 0.45 - 7.5
Range of Spindle Speeds (RPM) 0 - 2,200
Size 13 x 40
Spindle Bore (In.) 1-1/2
Spindle Mount D1-4
Spindle Taper with Sleeve MT-5
Steady Rest Capacity (In.) 1/4 - 2-3/4
Style (Type) ELITE EVS
Swing Over Bed (In.) 13
Swing Over Cross Slide (In.) 7-5/8
Swing Through Gap (In.) 19
Tailstock Spindle Travel (In.) 4-3/4
Taper in Tailstock Spindle MT-3
Weight (Lbs.) 1433
Width of Bed (In.) 8-1/2
View full details

Jet - E-1340VS With Newall DP700 DRO With Taper Attachment

Product Details

Features

- 4-Position Carriage Stop
- Chuck guards are standard equipment on all ELITE lathes for increased safety
- Front facing chip pan allows easy chip removal from the front of the machine
- Hardened and ground gears in headstock reduce vibration and deflection
- Heavy-duty stand with full length foot brake
- Inverter drive system provides infinitely variable spindle speeds
- LED RPM readout allows for precise turning speeds
- Overload clutch at feed shaft prevents the carriage from crashing into the chuck
- Steady Rest-Ball Bearing
- Variable spindle speeds

Shipping Details

Shipping Type: LTL

Warranty & Legal

Warranty: 3 Year Elite
Prop 65 (CA Only): Cancer and Reproductive Harm
