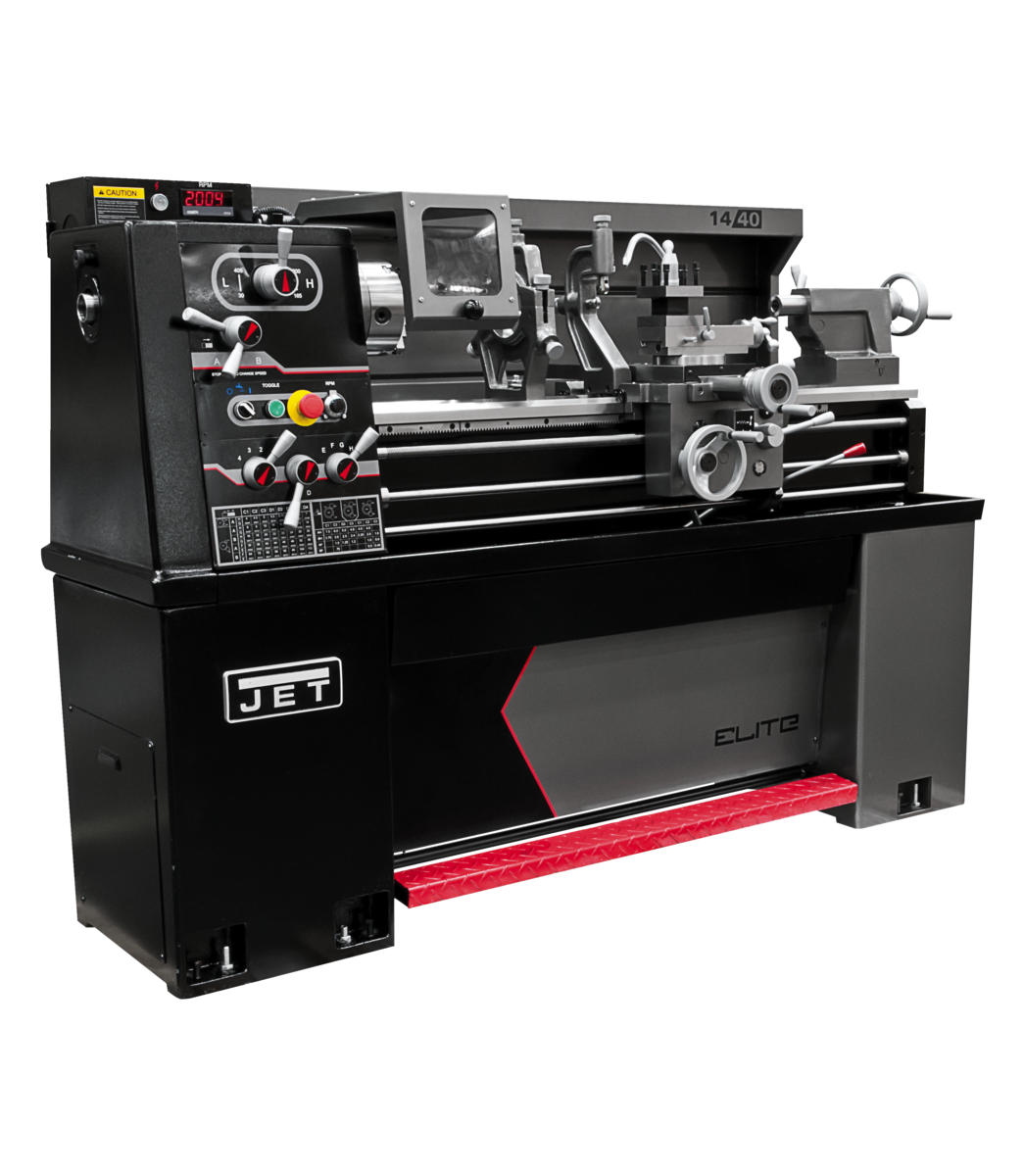

E-1440VS With ACU-RITE 203 DRO With Taper Attachment
E-1440VS With ACU-RITE 203 DRO With Taper Attachment
Product SKU: JT9-892454
Couldn't load pickup availability
Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.
| Stock Number | 892454 |
|---|---|
| Amperage Draw @ 230V 3Ph | 9 |
| Compound Slide Travel (In.) | 4 |
| Cross Slide Travel (In.) | 7 |
| Drive | EVS |
| Length of Gap (In.) | 9 |
| Model Number | E-1440VS |
| Motor (HP) | 3 HP, 230V, 3Ph |
| Number of Inch Threads | 40.0000 |
| Number of Longitudinal and Cross Feed Rates | 80 |
| Number of Metric Threads | 22.0000 |
| Overall Dimensions (L x W x H) (In.) | 77 x 30 x 58 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Cross Feeds (IPR) | 0.0003 - 0.01 |
| Range of Inch Threads (TPI) | 4 - 112 |
| Range of Longitudinal Feeds (IPR) | 0.0012 - 0.0294 |
| Range of Metric Threads | 0.45 - 7.5 |
| Range of Spindle Speeds (RPM) | 0 - 2,200 |
| Size | 14 x 40 |
| Spindle Bore (In.) | 1-1/2 |
| Spindle Mount | D1-4 |
| Spindle Taper with Sleeve | MT-5 |
| Steady Rest Capacity (In.) | 1/4 - 2-3/4 |
| Style (Type) | ELITE EVS |
| Swing Over Bed (In.) | 14 |
| Swing Over Cross Slide (In.) | 8-5/8 |
| Swing Through Gap (In.) | 20 |
| Tailstock Spindle Travel (In.) | 4-3/4 |
| Taper in Tailstock Spindle | MT-3 |
| Weight (Lbs.) | 1653 |
| Width of Bed (In.) | 8-1/2 |
Product Specifications
Jet - E-1440VS With ACU-RITE 203 DRO With Taper Attachment
Click Here for Product SpecsSKU: JT9-892454
