Jet

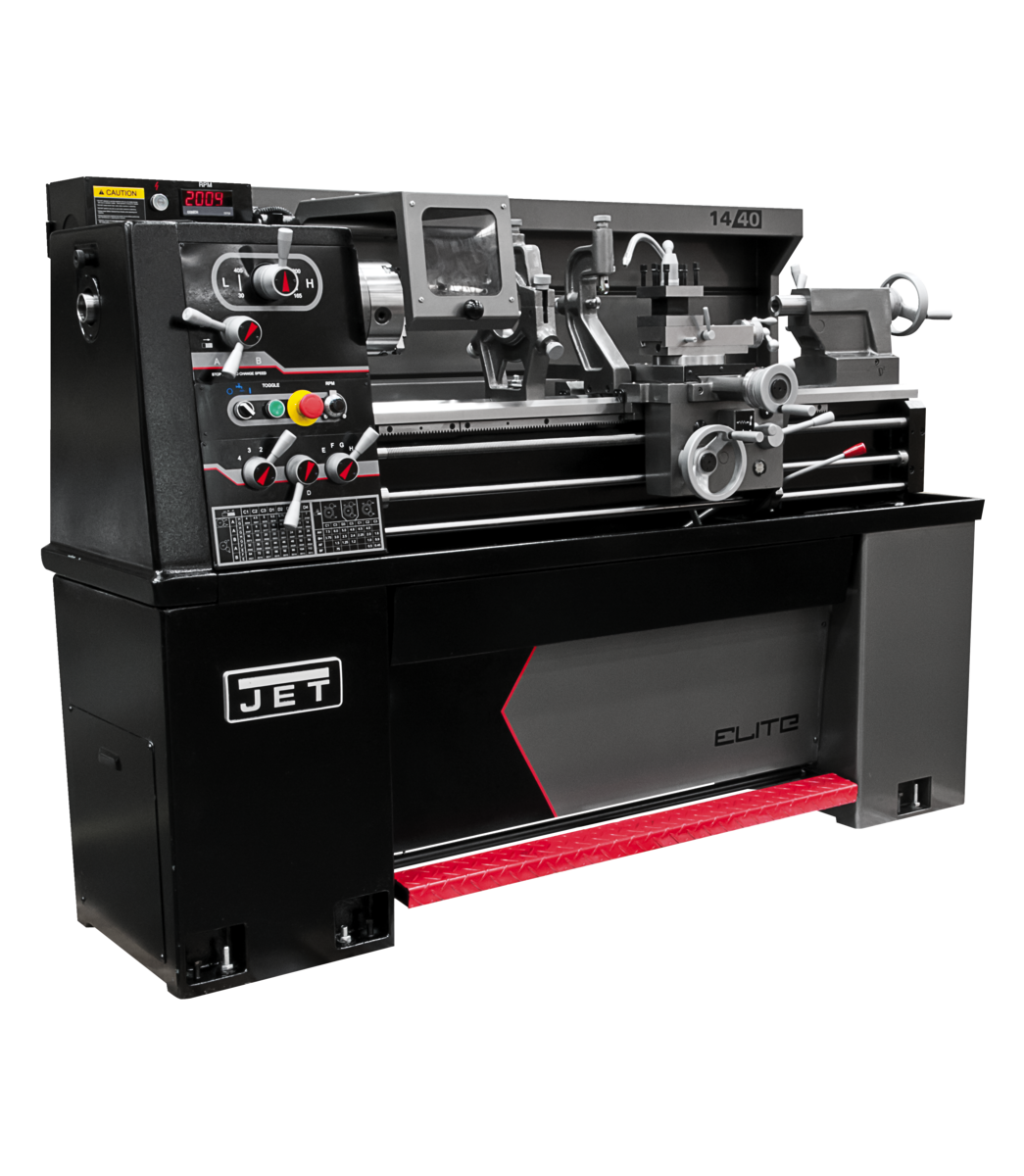

E-1440VS With Taper Attachment and Collet Closer

E-1440VS With Taper Attachment and Collet Closer

Product SKU: JT9-892452

MSRP Price: $26299.99

$26,299.99 USD
$26,299.99 USD $26,299.99 USD
Sale Sold out

Free Shipping Available!

Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.

Stock Number 892452
Amperage Draw @ 230V 3Ph 9
Compound Slide Travel (In.) 4
Cross Slide Travel (In.) 7
Drive EVS
Length of Gap (In.) 9
Model Number E-1440VS
Motor (HP) 3 HP, 230V, 3Ph
Number of Inch Threads 40.0000
Number of Longitudinal and Cross Feed Rates 80
Number of Metric Threads 22.0000
Overall Dimensions (L x W x H) (In.) 77 x 30 x 58
Prop 65 Cancer and Reproductive Harm
Range of Cross Feeds (IPR) 0.0003 - 0.01
Range of Inch Threads (TPI) 4 - 112
Range of Longitudinal Feeds (IPR) 0.0012 - 0.0294
Range of Metric Threads 0.45 - 7.5
Range of Spindle Speeds (RPM) 0 - 2,200
Size 14 x 40
Spindle Bore (In.) 1-1/2
Spindle Mount D1-4
Spindle Taper with Sleeve MT-5
Steady Rest Capacity (In.) 1/4 - 2-3/4
Style (Type) ELITE EVS
Swing Over Bed (In.) 14
Swing Over Cross Slide (In.) 8-5/8
Swing Through Gap (In.) 20
Tailstock Spindle Travel (In.) 4-3/4
Taper in Tailstock Spindle MT-3
Weight (Lbs.) 1653
Width of Bed (In.) 8-1/2
View full details

Jet - E-1440VS With Taper Attachment and Collet Closer

Product Details

Features

- 4-Position Carriage Stop
- Chuck guards are standard equipment on all ELITE lathes for increased safety
- Front facing chip pan allows easy chip removal from the front of the machine
- Hardened and ground gears in headstock reduce vibration and deflection
- Inverter drive system provides infinitely variable spindle speeds
- LED RPM readout allows for precise turning speeds
- Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
-
-
-

Shipping Details

Shipping Type: LTL

Warranty & Legal

Warranty: 3 Year Elite
Prop 65 (CA Only): Cancer and Reproductive Harm
