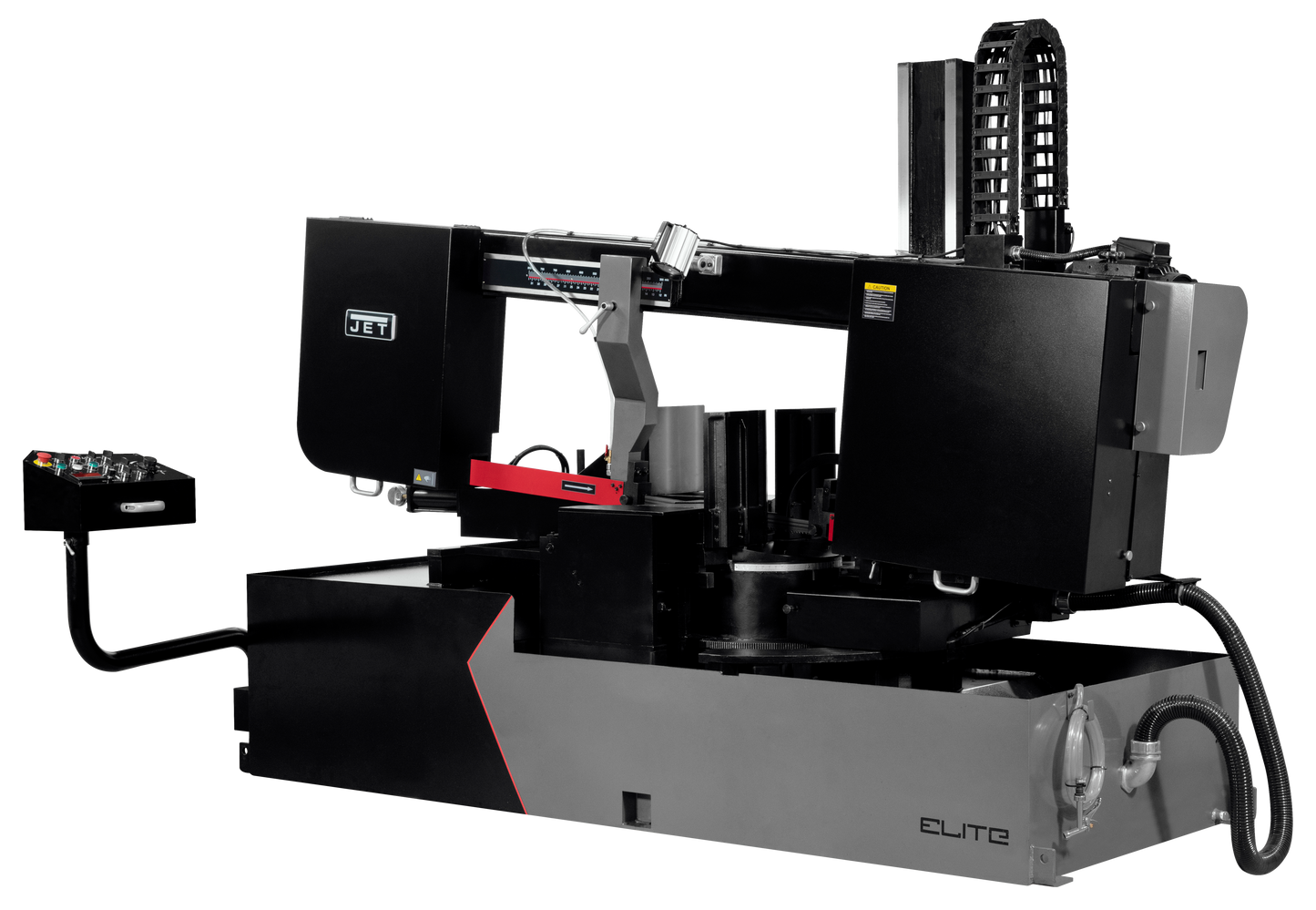

ECB-1833DMEVS-230 Elite 18" x 33" Dual Mitering EVS Semi-Auto Horizontal Bandsaw 7-1/2HP, 230V, 3-Ph

ECB-1833DMEVS-230 Elite 18" x 33" Dual Mitering EVS Semi-Auto Horizontal Bandsaw 7-1/2HP, 230V, 3-Ph

Product SKU: JT9-891170

MSRP Price: $58903.99

$58,903.99 USD
$58,903.99 USD $58,903.99 USD
Sale Sold out

Free Shipping Available!

With features unmatched, the JET Dual Mitering , Semi-Automatic, EVS Bandsaw is the perfect solution for cutting structural steel with ease.

Stock Number 891170
Bed Height (In.) 33-15/32
Blade Length (In.) 240
Blade Speed (SFPM) 150-300
Blade Speeds (SFPM) 50 - 300
Blade Wheel Diameter (In.) 22-53/64
Cutting Capacity (W x D) (In.) 18 x 33
Drive EVS
Electrics 7-1/2HP, 230V, 3Ph
Floor Space Required (In.) 110 x 74 x 82-5/8
Gross Weight (Lbs) 5500
Maximum Vise Opening (In.) 31-1/2
Model Number ECB-1833DMEVS-230
Motor (HP) 7-1/2
Net Weight (Lbs.) 5060
Overall Dimensions (L x W x H) (In.) 110 x 75 x 83
Overall Height (In.) 82-5/8
Prewired Voltage (V.) 230
Prop 65 Cancer and Reproductive Harm
Rectangle at 45 Degrees (In.) 18 x 20-13/16
Rectangle at 60 Degrees (In.) 18 x 14-29/32
Rectangle at 90 Degrees (In.) 18 x 31-1/2
Round at 45 Degrees (In.) 18
Round at 60 Degrees (In.) 18
Round at 90 Degrees (In.) 15
Shipping Weight (Lbs.) 5500
Square at 45 Degrees (In.) 18 x 18
Square at 60 Degrees (In.) 15 x 15
Square at 90 Degrees (In.) 18 x 18
Throat Depth (In.) 18
Weight (Lbs.) 5060
Blade Size (In.) 1.61 x 0.051 x 240
Coolant Pump Motor 1/8HP, 230V, 3PH
Mitering Angle Motor 1/5HP, 460V, 3Ph
Oil Pump Motor 1HP, 230V, 3Ph
View full details

Jet - ECB-1833DMEVS-230 Elite 18" x 33" Dual Mitering EVS Semi-Auto Horizontal Bandsaw 7-1/2HP, 230V, 3-Ph

Product Details

Features

- Electronic variable speed from 50-297 SFPM
- Heavy duty construction reduces vibration and deflection
- Hydraulic assist descent control
- Auto table swivel
- Blade tension gauge helps to ensure the blade is in the correct cutting position
- Semi-auto on saw bow lifting and hydraulic vise
- Swing away control box allows Operator to use in any position
-
-
-

Shipping Details

Shipping Type: LTL-Dock

Warranty & Legal

Warranty: 3 Year Elite
Prop 65 (CA Only): Cancer and Reproductive Harm
