Jet

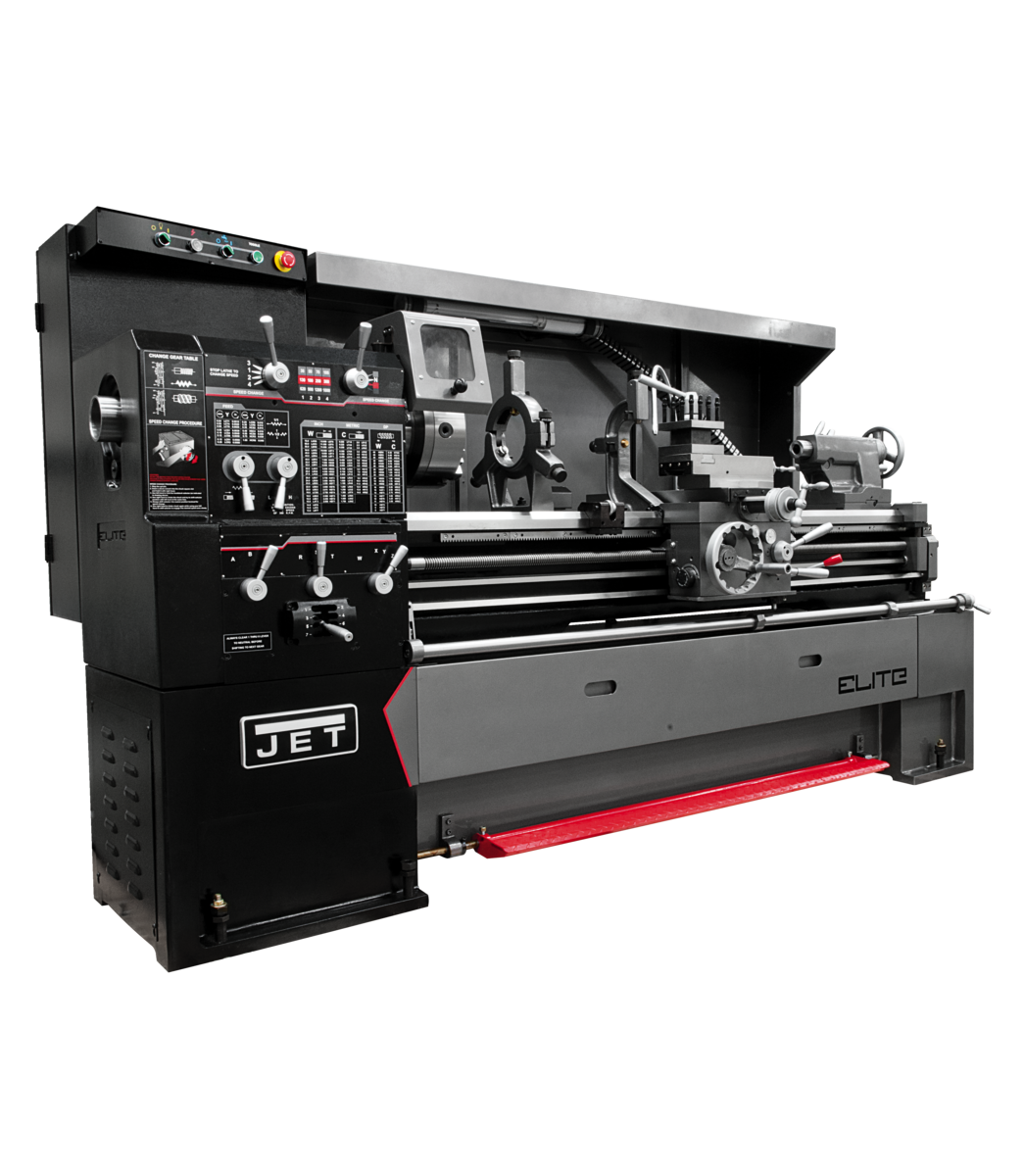

EGH-1740 With Newall DP700 DRO With Taper Attachment

EGH-1740 With Newall DP700 DRO With Taper Attachment

Product SKU: 892512

MSRP Price: $43889

Regular price $43,889.00 USD
Regular price $43,889.00 USD Sale price $43,889.00 USD
Sale Sold out

Free Shipping Available!

Dependable, reliable, quality. Combining the durability and strength of Meehanite® castings with precision engineering, Elite Geared Head Lathes turn out high quality components turn after turn. Fully lit with CNC style lighting, the enclosed full-length splash guard is expertly designed to contain all chips and coolant. Hardened and ground bedways and gears help reduce vibration, deflection, and provide accurate longitudinal movements. Designed with a universal gearbox to allow for a wide range of threading without gear changes, and Turcite-B coatings between the bed and carriage to provide smooth and accurate movement, these machines provide the perfect blend of performance and reliability you can come to expect from JET Elite.

Stock Number 892512
Amperage Draw @ 230V 3Ph 22
Amperage Draw @ 460V 3Ph 11
Compound Slide Travel (In.) 6-2/7
Diametral Pitch Threads Number 21.0000
Drive Geared Head
Length of Gap (In.) 7-2/3
Max Tool Size (In.) 1 x 1
Model Number EGH-1740
Modular Pitch Threads Number 18.0000
Number of Inch Threads 45.0000
Number of Metric Threads 39.0000
Number of Spindle Speeds 12
Overall Dimensions (L x W x H) (In.) 94 x 44 x 68
Prop 65 Cancer and Reproductive Harm
Range of Cross Feeds (IPR) 0.00075 - 0.02
Range of Inch Threads (TPI) 2 - 72
Range of Longitudinal Feeds (IPR) 0.0015 - 0.04
Range of Metric Threads 0.2 - 14
Range of Spindle Speeds (RPM) 36 - 1,800
Size 17 x 40
Spindle Bore (In.) 3-1/8
Spindle Mount D1-6
Spindle Taper with Sleeve MT-5
Steady Rest Capacity (In.) 3/8 - 6-3/4
Style (Type) Engine
Swing Over Bed (In.) 17
Swing Over Cross Slide (In.) 11
Tailstock Spindle Travel (In.) 5
Weight (Lbs.) 3747
Width of Bed (In.) 12
View full details

Jet - EGH-1740 With Newall DP700 DRO With Taper Attachment

Product Details

Features

- 4-Position Carriage Stop
- Anti-Float design eliminates backlash in the cross slide
- Enclosed coolant system contains excess coolant for increased safety
- Front facing chip pan allows easy chip removal from the front of the machine
- Full Length Splash Guard
- Nylon safety gears in the end train prevent overloading, increasing safety
- One-Shot lubrication in the carriage reduces maintenance
- Shear pin in the lead screw disengages the feed when overloaded, preventing damage to the apron and headstock
- Steady rests feature ball bearing guides for smooth material movements
-

Shipping Details

Shipping Type: LTL - Doc Del Only

Warranty & Legal

Warranty: 3 Year Elite
Prop 65 (CA Only): Cancer and Reproductive Harm
