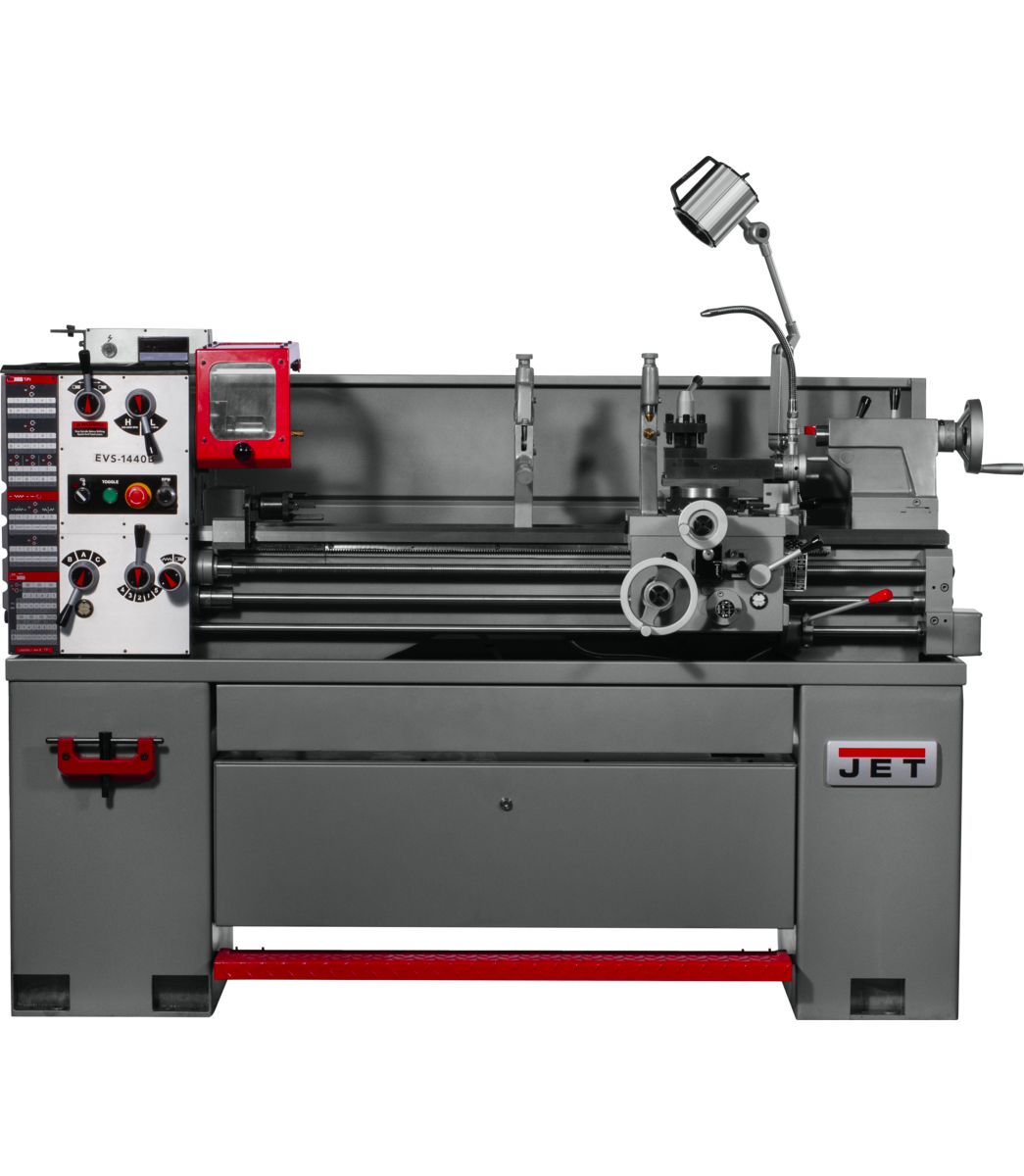

EVS-1440B EVS Lathe 3HP, 230V, Single or 3 Phase
EVS-1440B EVS Lathe 3HP, 230V, Single or 3 Phase
Product SKU: 311440
MSRP Price: $15499
Free Shipping Available!
Couldn't load pickup availability
The EVS-1440B is engineered to maximize your shop’s output. The D1 4 Spindle is precision ground for accuracy and supported by class 7 tapered roller bearings capable of a run out maximum of .0004’’. The spindle also features an apron-mounted actuation control and jog button for easy gear engagement and spindle inching. The two-speed gearbox allows operators to easily work at low speeds from 40 to 365 RPM, and at high speeds from 220 to 2,000 RPM. Additionally, the tailstock may be offset for turning taper. Meehanite castings retain their tolerance and remain rigid over many years of machining.
| Stock Number | 311440 |
|---|---|
| Compound Slide Travel (In.) | 3-1/2 |
| Cross Slide Travel (In.) | 7 |
| Distance Between Centers (In.) | 40 |
| Drive | EVS |
| Gross Weight (Lbs) | 1584 |
| Input Power | 230V 3ph |
| Length of Gap (In.) | 9-1/2 |
| Max Tool Size (In.) | 3/4 x 3/4 |
| Model Number | EVS-1440B |
| Motor (HP) | 3 HP, 230V, 3-Phase |
| Motor Power (HP) | 3 |
| Motor Voltage (V.) | 230 |
| Net Weight (Lbs.) | 1320 |
| Number of Inch Threads | 34.0000 |
| Number of Longitudinal and Cross Feed Rates | 25 |
| Number of Metric Threads | 34.0000 |
| Number of Spindle Speeds | Variable |
| Overall Dimensions (L x W x H) (In.) | 68.5 x 28.3 x 50 |
| Prewired Voltage (V.) | 230 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Cross Feeds (IPR) | 25 |
| Range of Inch Threads (TPI) | 2-56 |
| Range of Longitudinal Feeds (IPR) | 0.0016-0.0460 |
| Range of Metric Threads | 0.5-12 |
| Range of Spindle Speeds (RPM) | 40-2000 |
| Shipping Dimensions (L x W x H) (In.) | 76 x 30 x 61 |
| Spindle Bore (In.) | 1-1/2 |
| Spindle Mount | D1-4 |
| Spindle Taper | Morse #5 |
| Spindle Taper with Sleeve | MT-5 |
| Spindle Thread (In./TPI) | 2 - 56 |
| Steady Rest Capacity (In.) | 0.23-0.61 Copper Shaft ( Standard) 0.20-2.36 Bearing Roller(OP) |
| Swing Over Bed (In.) | 14 |
| Swing Over Cross Slide (In.) | 9-1/16 |
| Tailstock Spindle Travel (In.) | 6-1/8 |
| Taper in Tailstock Spindle | MT-3 |
| Weight (Lbs.) | 1584 |
| Width of Bed (In.) | 7.48 |
Jet - EVS-1440B EVS Lathe 3HP, 230V, Single or 3 Phase
Product Details
Features
-
- 6" 3-Jaw Chuck
- Threading Dial Indictor
- Steady & Follow Rest
-
-
-
-
-
-
Shipping Details
Shipping Type: LTL
Warranty & Legal
Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
