Jet

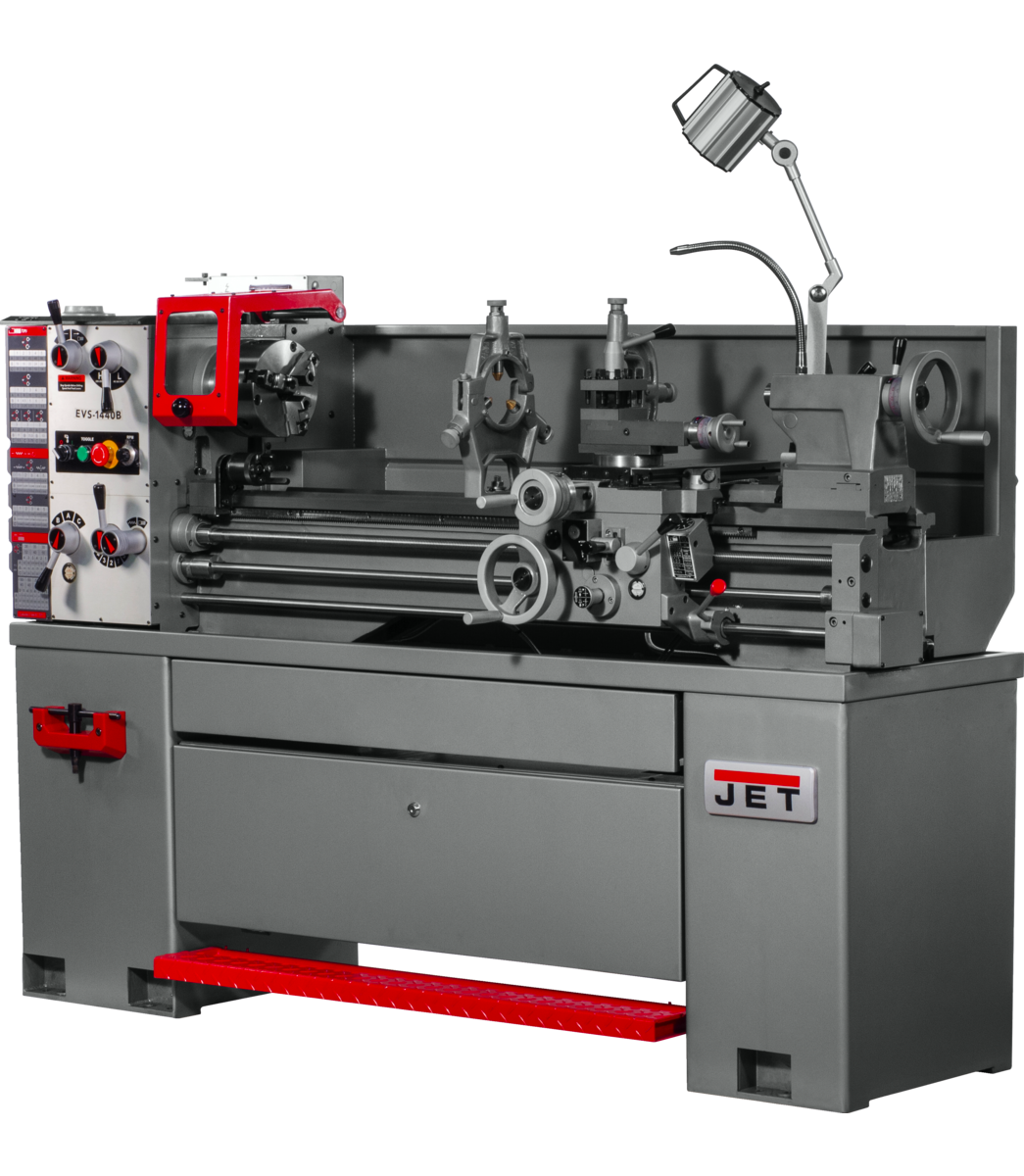

EVS-1440B EVS Lathe with Acu-Rite 203 DRO & Collet Closer

EVS-1440B EVS Lathe with Acu-Rite 203 DRO & Collet Closer

Product SKU: 311446

MSRP Price: $19999

$20,799.00 USD
$20,799.00 USD $20,799.00 USD
Sale Sold out

Free Shipping Available!

The EVS-1440B is engineered to maximize your shop’s output. The D1 4 Spindle is precision ground for accuracy and supported by class 7 tapered roller bearings capable of a run out maximum of .0004’’. The spindle also features an apron-mounted actuation control and jog button for easy gear engagement and spindle inching. The two-speed gearbox allows operators to easily work at low speeds from 40 to 365 RPM, and at high speeds from 220 to 2,000 RPM. Additionally, the tailstock may be offset for turning taper. Meehanite castings retain their tolerance and remain rigid over many years of machining.

Stock Number 311446
Compound Slide Travel (In.) 3-1/2
Cross Slide Travel (In.) 7
Length of Gap (In.) 9-1/2
Max Tool Size (In.) 3/4 x 3/4
Model Number EVS-1440B
Motor (HP) 3HP, 230V, 3Ph
Number of Inch Threads 34.0000
Number of Longitudinal and Cross Feed Rates 25
Number of Metric Threads 34.0000
Overall Dimensions (L x W x H) (In.) 68.5 x 28.3 x 50
Prop 65 None
Range of Cross Feeds (IPR) 25
Range of Inch Threads (TPI) 2-56
Range of Longitudinal Feeds (IPR) 0.0016-0.0460
Range of Metric Threads 0.5-12
Range of Spindle Speeds (RPM) 40-2000
Spindle Bore (In.) 1-1/2
Spindle Mount D1-4
Spindle Taper with Sleeve MT-5
Steady Rest Capacity (In.) 0.23-0.61 Copper Shaft ( Standard) 0.20-2.36 Bearing Roller(OP)
Swing Over Bed (In.) 14
Swing Over Cross Slide (In.) 9-1/16
Swing Through Gap (In.) 19-1/2
Tailstock Spindle Travel (In.) 6-1/8
Taper in Tailstock Spindle MT-3
Width of Bed (In.) 7.48
View full details

Jet - EVS-1440B EVS Lathe with Acu-Rite 203 DRO & Collet Closer

Product Details

Features

- Compound and cross slide have backlash elimination
- Electronic Chuck Key Docking Station
- Front Removable Chip Tray
- Full Length Splash Guard
- Independent lead screw and feed rod
- Integrated locking tool storage cabinet in the stand
- LED RPM readout allows for precise turning speeds
- Safety on/off switch
- Treading Dial Indicator
- V-Way bed design is induction hardened and ground

Shipping Details

Shipping Type: LTL

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): N/A
