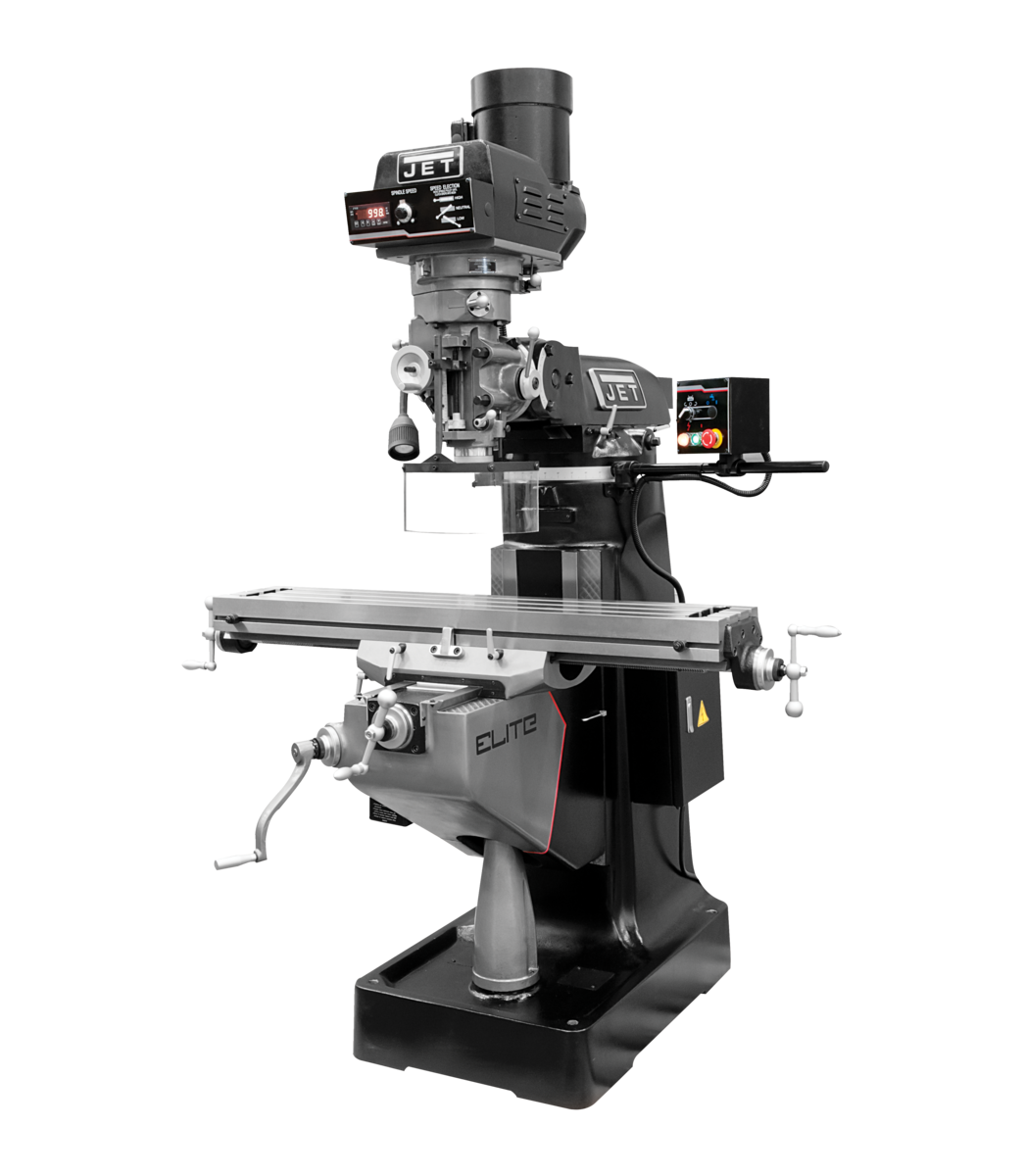

EVS-949 Mill with Y-Axis JET Powerfeed
EVS-949 Mill with Y-Axis JET Powerfeed
Product SKU: JT9-894301
MSRP Price: $26499.99
Free Shipping Available!
Couldn't load pickup availability
Elite offers world class mills fully loaded with features. With Certified Meehanite® castings, an electronic spindle brake that prevents accidental startups, and a hardened and ground table, this mill provides reliability and durability for milling a diverse variety of materials. Our patented vari-disc key provides up to 10 times the wear resistance than aluminum or brass keys. The fully hardened Chromium Molybdenum spindle meets strict tolerance requirements and utilizes class 7210 (P4, ABEC-7) precision angular bearings for the industry-leading spindle taper runout of 0.00012". The Y- and Z-axis ways are hand scraped to a minimum of 16 points per square inch for greater oil retention and smooth movements. Additionally, every 30 minutes, your Elite mill is automatically lubricated with a flow of 3 to 6 cc/cy. For operator safety, all Elite Mills are CSA/CUS Certified and come with a spindle safety guard.
| Stock Number | 894301 |
|---|---|
| Amperage Draw @ 230V 3Ph | 18 |
| Collet Capacity | 1/8 - 7/8 |
| Distance Spindle to Column (Max.) (In.) | 21-2/5 |
| Max Distance Spindle to Table (In.) | 18-3/4 |
| Model Number | ETM-949EVS |
| Motor (HP) | 3 HP, 230V, 3 Ph |
| Overall Dimensions (L x W x H) (In.) | 68 x 63 x 84 |
| Powerfeed | Y-Axis |
| Prop 65 | Cancer |
| Quill Diameter (In.) | 3-3/8 |
| Quill Down Feed Rates (IPR) | 0.0015 - 0.003 - 0.006 |
| Range of Spindle Speeds (RPM) | 60 - 5,000 |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel (In.) | 5 |
| Style (Type) | Variable Speed |
| T-Slot Centers (In.) | 2-1/2 |
| Table Cross Travel (In.) | 12 |
| Table Longitudinal Travel (In.) | 36 |
| Table Size (L x W) (In.) | 9 x 49 |
| Travel of Knee (In.) | 16 |
| Travel of Ram (In.) | 14 |
| Weight (Lbs.) | 2300 |
| Work Table Weight Capacity (Lbs.) | 550 |
Jet - EVS-949 Mill with Y-Axis JET Powerfeed
Product Details
Features
-
- Heat treated and polished lead screws are supported by thrust bearings ensuring smooth, incremental movements of the table under load
- Seamless, one-piece, steel quill is induction hardened and chromed for increased strength and precision ground for greater accuracy
- Spindle utilizes class 7210 (P4, ABEC-7) precision angular bearings for the industry-leading spindle taper runout of 0.00012"
-
-
-
-
-
-
Shipping Details
Shipping Type: LTL
Warranty & Legal
Warranty: 3 Year Elite
Prop 65 (CA Only): Cancer
