Jet

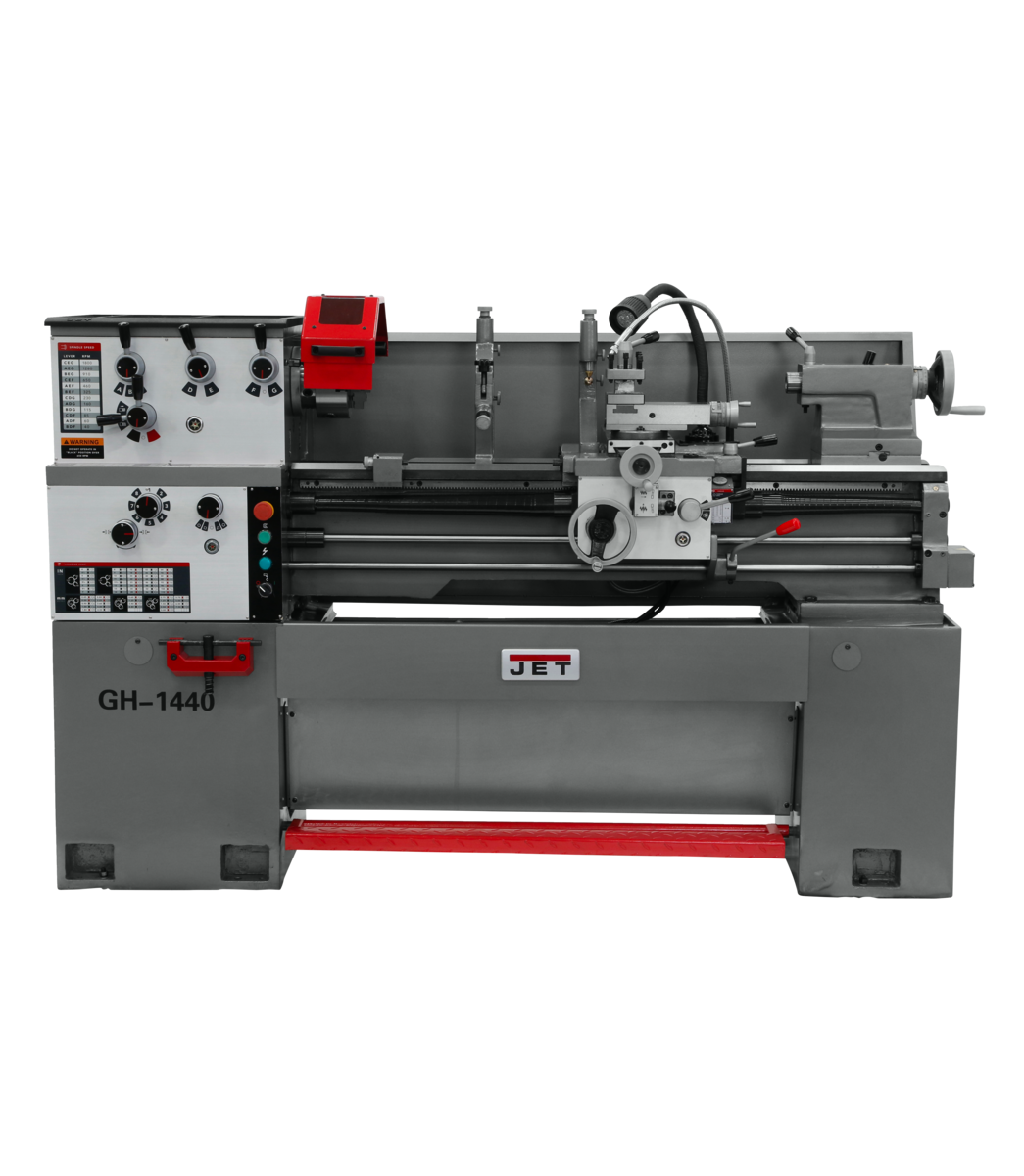

GH-1440-1 With Newall DP700 DRO With Taper Attachment

GH-1440-1 With Newall DP700 DRO With Taper Attachment

Product SKU: 323384

MSRP Price: $24159

Regular price $24,159.00 USD
Regular price $24,159.00 USD Sale price $24,159.00 USD
Sale Sold out

Free Shipping Available!

The new JET GH-1440-1 and GH-1440-3 Geared Head Engine Lathes weigh over one ton and come equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for the ultimate working durability. The enclosed gearbox design, standard coolant system, and lead screw and feed rod provide a smooth and quiet operation while maintaining peak performance. The GH-1440-1 and GH-1440-3 also includes a patented electronic chuck key docking station that prevents startup without the chuck key when safely docked as well as an emergency stop within easy reach of the Operator.

Stock Number 323384
Carriage Travel (In.) 37-1/2
Compound Slide Travel (In.) 3-1/2
Length of Gap (In.) 9-3/8
Max Tool Size (In.) 5/8 x 5/8
Model Number GH-1440-1
Motor (HP) 3HP, 230V, 1PH
Number of Inch Threads 40.0000
Number of Longitudinal and Cross Feed Rates 40
Number of Metric Threads 23.0000
Number of Spindle Speeds 12
Overall Dimensions (L x W x H) (In.) 74-4/5 x 28 x 46
Prop 65 Cancer and Reproductive Harm
Range of Cross Feeds (IPR) 0.0004 - 0.0103
Range of Inch Threads (TPI) 4-112
Range of Longitudinal Feeds (IPR) 0.0012 - 0.0294
Range of Metric Threads 0.45-7.5
Range of Spindle Speeds (RPM) 40-1800
Spindle Bore (In.) 1-1/2
Spindle Mount D1-4
Spindle Taper with Sleeve MT-5
Steady Rest Capacity (In.) 3-1/2
Swing Over Bed (In.) 14
Swing Over Cross Slide (In.) 8-1/5
Swing Through Gap (In.) 20
Tailstock Spindle Travel (In.) 4-3/4
Taper in Tailstock Spindle MT-3
Weight (Lbs.) 2336
Width of Bed (In.) 10-1/5
View full details

Jet - GH-1440-1 With Newall DP700 DRO With Taper Attachment

Product Details

Features

- Compound and cross slide have backlash elimination
- Front Removable Chip Tray
- Full Length Splash Guard
- Gearbox provides larger threading and feed capabilities with no gear changes
- Inch-metric dials are standard
- Safety on/off switch
- Spindle actuation control is apron mounted
- Spindle jog button for easy gear engagement and spindle inching
- Splined, not keyed, shafts are utilized
- Tailstock may be offset for turning taper

Shipping Details

Shipping Type: LTL - Doc Del Only

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
