Jet

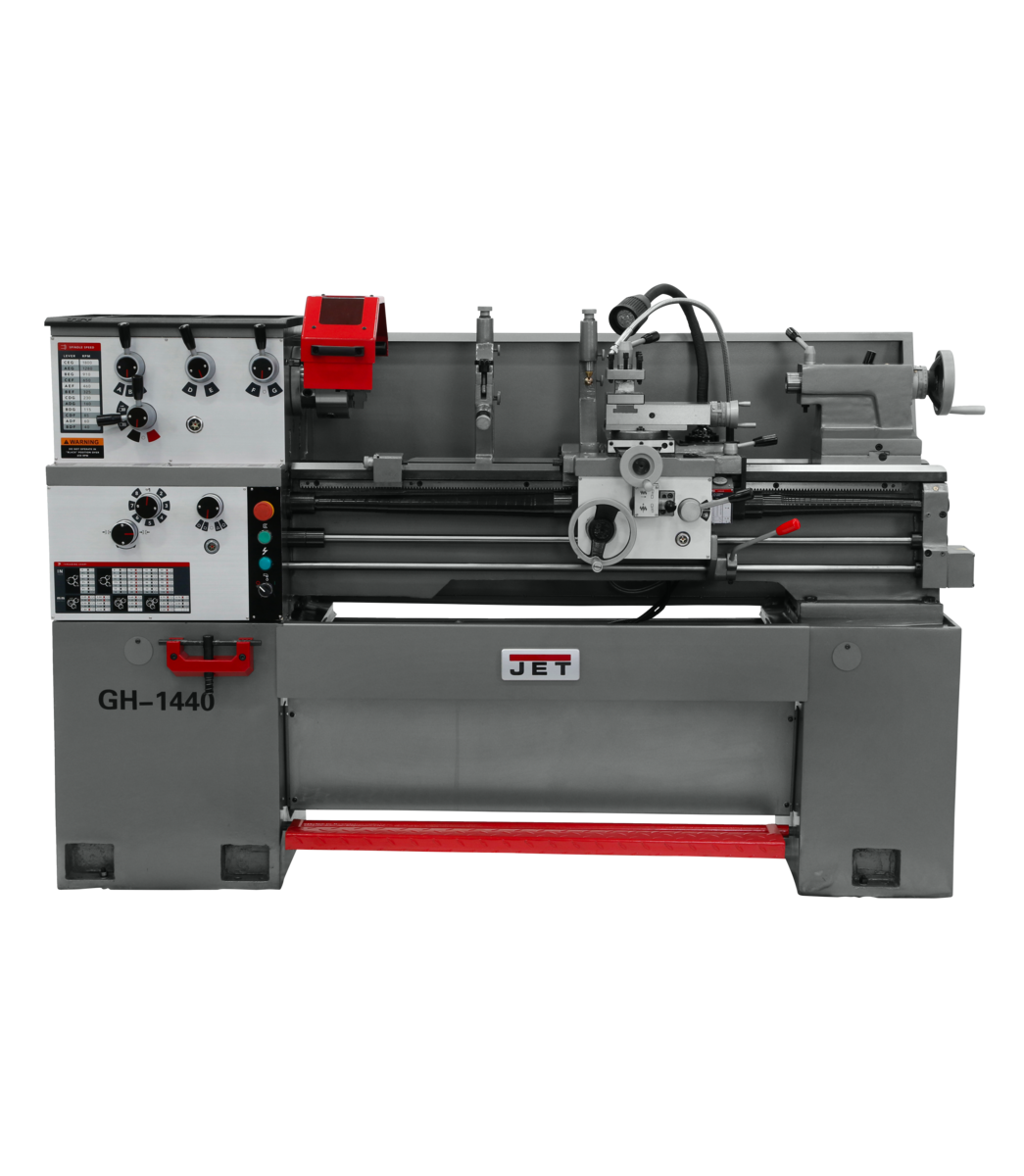

GH-1440-3 Lathe with Newall NMS300 DRO and Collet Closer

GH-1440-3 Lathe with Newall NMS300 DRO and Collet Closer

Product SKU: 323416

MSRP Price: $28874.29

Regular price $23,799.00 USD
Regular price $23,799.00 USD Sale price $23,799.00 USD
Sale Sold out

Free Shipping Available!

The new JET GH-1440-1 and GH-1440-3 Geared Head Engine Lathes weigh over one ton and come equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for the ultimate working durability. The enclosed gearbox design, standard coolant system, and lead screw cover provide a smooth and quiet operation while maintaining peak performance. The GH-1440-1 and GH-1440-3 also includes an emergency stop within easy reach of the operator as well as a patented Electronic Chuck Key Docking Station that prevents startup without the chuck key when safely docked.

Stock Number 323416
Carriage Travel (In.) 37-1/2
Compound Slide Travel (In.) 3-1/2
Length of Gap (In.) 9-3/8
Max Tool Size (In.) 5/8 x 5/8
Model Number GH-1440-3
Motor (HP) 3HP, 230/460V, 3PH
Number of Inch Threads 40.0000
Number of Longitudinal and Cross Feed Rates 40
Number of Metric Threads 23.0000
Number of Spindle Speeds 12
Overall Dimensions (L x W x H) (In.) 74-4/5 x 28 x 46
Prop 65 Cancer and Reproductive Harm
Range of Cross Feeds (IPR) 0.0004 - 0.0103
Range of Inch Threads (TPI) 4-112
Range of Longitudinal Feeds (IPR) 0.0012 - 0.0294
Range of Metric Threads 0.45-7.5
Range of Spindle Speeds (RPM) 40-1800
Shipping Dimensions (L x W x H) (In.) 78-2/5 x 30 x 55
Spindle Bore (In.) 1-1/2
Spindle Mount D1-4
Spindle Taper with Sleeve MT-5
Steady Rest Capacity (In.) 3-1/2
Swing Over Bed (In.) 14
Swing Over Cross Slide (In.) 8-1/5
Swing Through Gap (In.) 20
Tailstock Spindle Travel (In.) 4-3/4
Taper in Tailstock Spindle MT-3
Weight (Lbs.) 2336
Width of Bed (In.) 10-1/5
View full details

Jet - GH-1440-3 Lathe with Newall NMS300 DRO and Collet Closer

Product Details

Features

- Compound and cross slide have backlash elimination
- Front Removable Chip Tray
- Full Length Splash Guard
- Inch-metric dials are standard
- Independent lead screw and feed rod
- Safety on/off switch
- Spindle actuation control is apron mounted
- Spindle jog button for easy gear engagement and spindle inching
- Splined, not keyed, shafts are utilized
- Tailstock may be offset for turning taper

Shipping Details

Shipping Type: LTL

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
