Jet

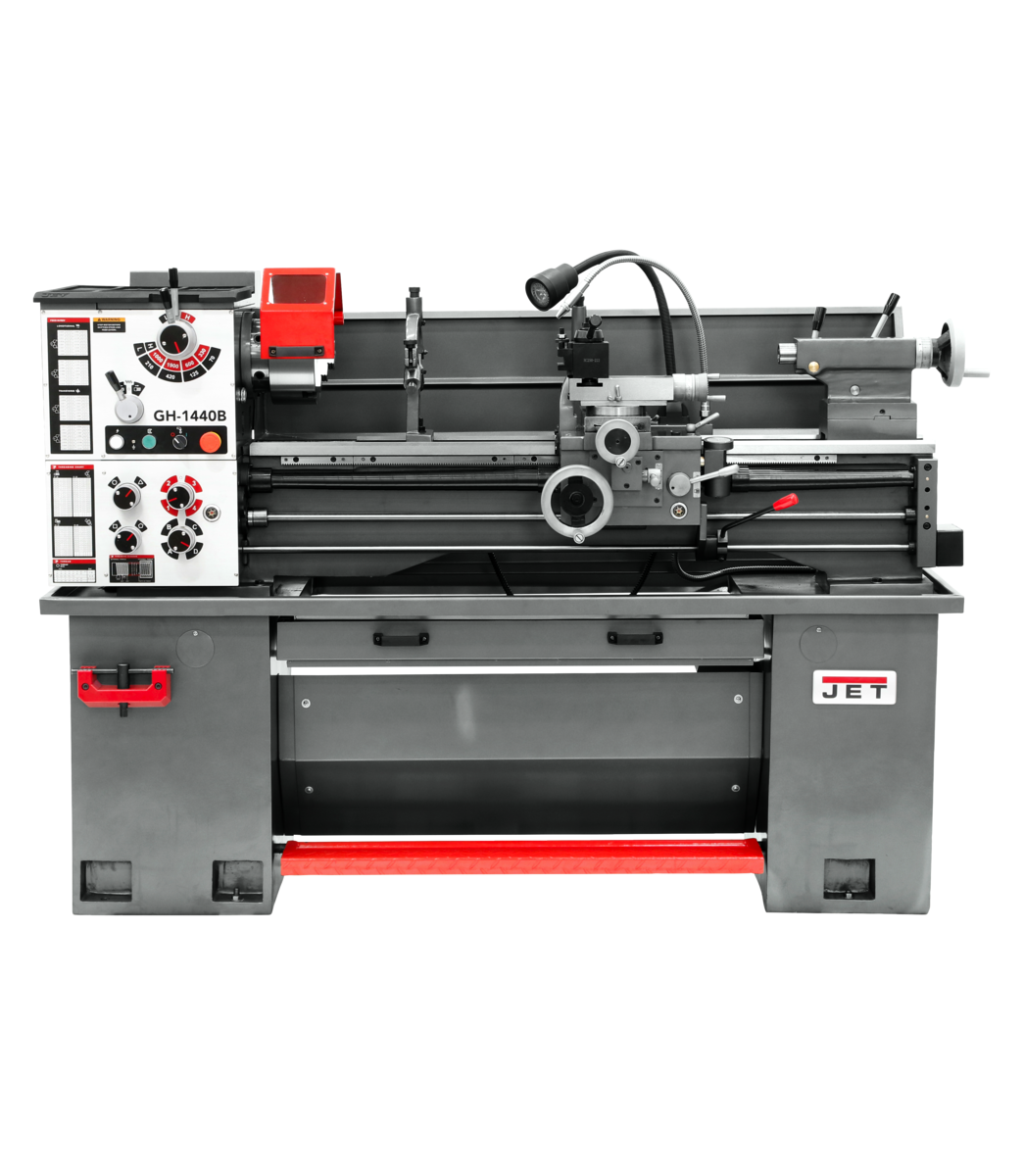

GH-1440B Geared Head Bench Lathe with Stand & Foot Brake with Newall NMS300 DRO & Taper Attachment

GH-1440B Geared Head Bench Lathe with Stand & Foot Brake with Newall NMS300 DRO & Taper Attachment

Product SKU: 323448

MSRP Price: $20451.43

Regular price $17,599.00 USD
Regular price $17,599.00 USD Sale price $17,599.00 USD
Sale Sold out

Free Shipping Available!

This new JET GH-1440B Geared Head Bench Lathe is engineered for smooth, quiet operation and user versatility. Positioned on a heavy-duty cast iron stand with a newly added built-in footbrake, the GH-1440B includes precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for ultimate working durability. The GH1440B also includes a patented electronic chuck key docking station that prevents startup without the chuck key when safely docked.

Stock Number 323448
Carriage Travel (In.) 37-2/5
Compound Slide Travel (In.) 3-1/2
Cross Slide Travel (In.) 7
Length of Gap (In.) 8
Max Tool Size (In.) 4/5 x 4/5
Model Number GH-1440B
Motor (HP) 2 HP, 230V, Single Phase
Number of Inch Threads 34.0000
Number of Longitudinal and Cross Feed Rates 32/32
Number of Metric Threads 26.0000
Number of Spindle Speeds 8
Overall Dimensions (L x W x H) (In.) 76-13/32 x 29-29/32 x 59-13/16
Prop 65 Cancer and Reproductive Harm
Range of Cross Feeds (IPR) 0.007 -0.0187
Range of Inch Threads (TPI) 4-56
Range of Longitudinal Feeds (IPR) 0.002 -0.0548
Range of Metric Threads 0.4-7
Range of Spindle Speeds (RPM) 70-1900
Spindle Bore (In.) 2
Spindle Mount D1-5
Spindle Taper with Sleeve MT6
Steady Rest Capacity (In.) 0.31-2.95
Swing Over Bed (In.) 14
Swing Over Cross Slide (In.) 8
Swing Through Gap (In.) 20
Tailstock Spindle Travel (In.) 4
Taper in Tailstock Spindle MT4
Weight (Lbs.) 1753
Width of Bed (In.) 7.32
View full details

Jet - GH-1440B Geared Head Bench Lathe with Stand & Foot Brake with Newall NMS300 DRO & Taper Attachment

Product Details

Features

- Compound and cross slide have backlash adjustment
- Emergency stop within easy reach of the Operator
- Enclosed gearbox design provides smooth, quiet operation
- Gearbox gives wide range of inch & metric threading & feed capabilities with few gear changes
- Spindle Spider available for ease of turning Gun barrels
- Standard Accessories
- Steady Rest with Roller Bearings
- Tailstock may be offset for turning taper
-
-

Shipping Details

Shipping Type: LTL - Doc Del Only

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
