Jet

GH-1440ZX With Taper Attachment

GH-1440ZX With Taper Attachment

Product SKU: 321467

MSRP Price: $32179.0

$32,179.00 USD
$32,179.00 USD $32,179.00 USD
Sale Sold out

Free Shipping Available!

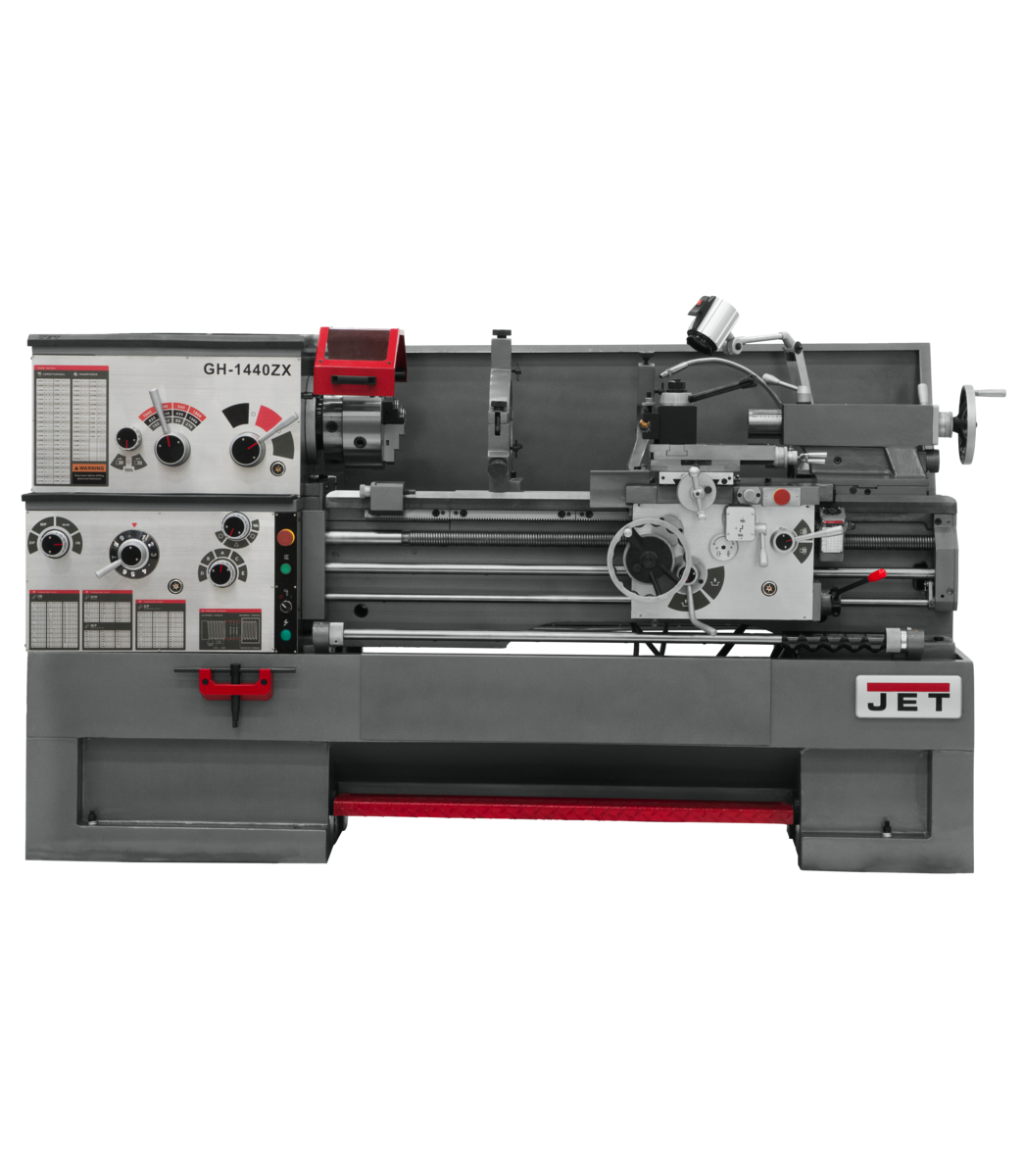

The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency, and reliability to your metal shop. A one-piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the universal gearbox eliminates the need to change gears. This lathe also features a 10” three jaw scroll chuck with top reversing jaws, and an e-stop on the carriage for increased operator safety. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.

Stock Number 321467
Carriage Travel (In.) 36-9/16
Compound Slide Travel (In.) 5-1/8
Cross Slide Travel (In.) 9
Drive Geared Head
Length of Gap (In.) 12
Max Tool Size (In.) 1 x 1
Model Number GH-1440ZX
Motor (HP) 7-1/2 HP, 230/460, 3 Ph
Number of Inch Threads 61.0000
Number of Longitudinal and Cross Feed Rates 46/31
Number of Metric Threads 24.0000
Number of Spindle Speeds 12
Overall Dimensions (L x W x H) (In.) 96 x 44 x 66
Prop 65 Cancer and Reproductive Harm
Range of Cross Feeds (IPR) .0006 - .0360
Range of Inch Threads (TPI) 1-5/8 - 72
Range of Longitudinal Feeds (IPR) .0015 - .0900
Range of Metric Threads .05 - 20
Range of Spindle Speeds (RPM) 42 - 1,800
Size 14 x 40
Spindle Bore (In.) 3-1/8
Spindle Mount D1-8
Spindle Taper with Sleeve MT-7 (MT-5)
Steady Rest Capacity (In.) 3/8 - 7
Style (Type) Engine - Large Spindle Bore
Swing Over Bed (In.) 14
Swing Over Cross Slide (In.) 7-5/8
Swing Through Gap (In.) 23-5/8
Tailstock Spindle Travel (In.) 6
Weight (Lbs.) 5187
Width of Bed (In.) 13-3/8
View full details

Jet - GH-1440ZX With Taper Attachment

Product Details

Features

- Articulating LED work lamp
- Centrally located controls with jog button
- Electronic Chuck Key Holder
- Five position automatic carriage stop increases productivity
- Full length splash guard and coolant return
- Large capacity steady rest with ball bearing tips
- Large easy to use foot brake
- Mounting pads and levelers
- Removable gap allows large diameter work
- Tool box and adjusting tools

Shipping Details

Shipping Type: FB

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
