Jet

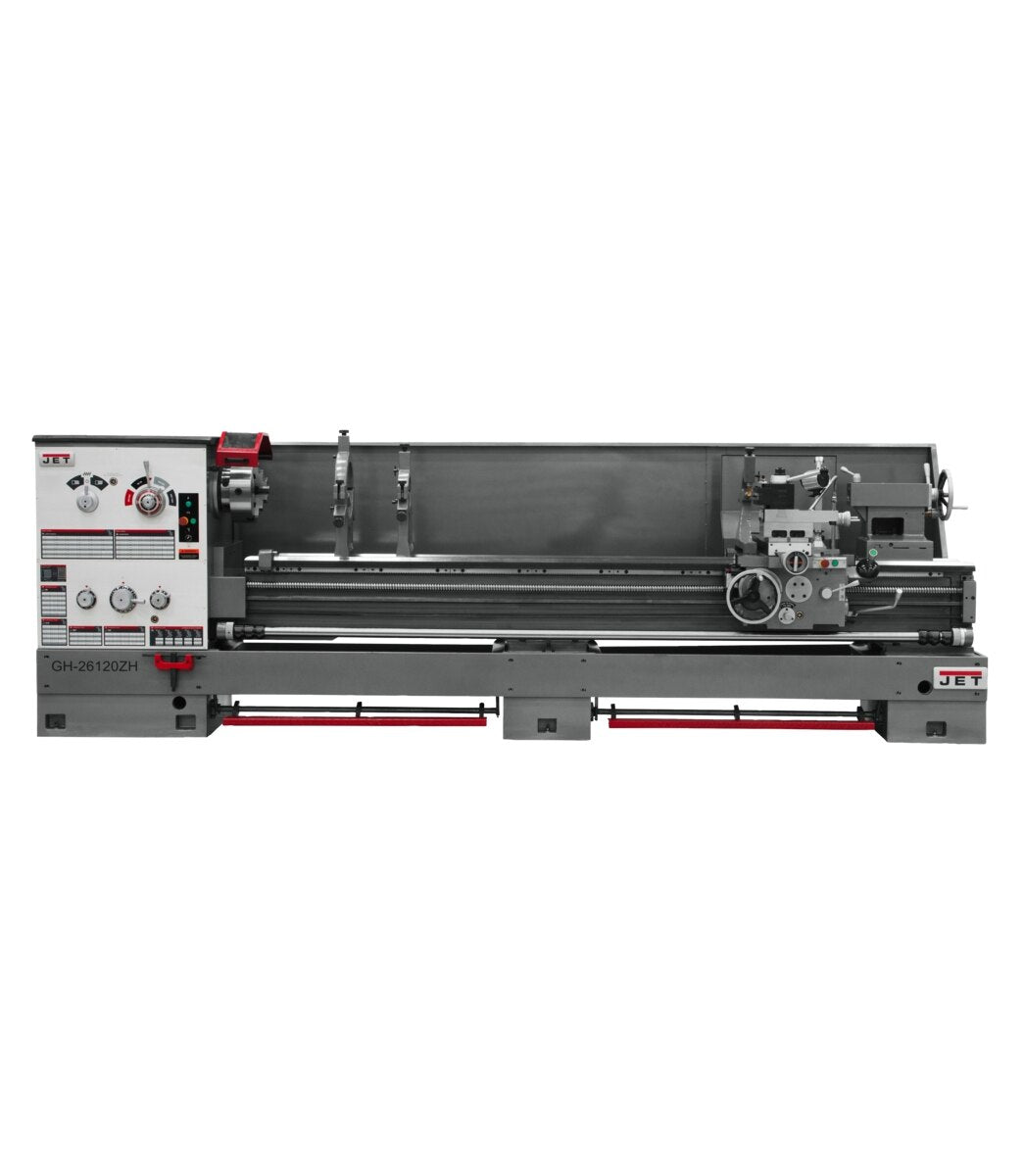

GH-26120ZH, 4-1/8" Spindle Bore Geared Head Lathe

GH-26120ZH, 4-1/8" Spindle Bore Geared Head Lathe

Product SKU: 321890

MSRP Price: $56127.14

Regular price $46,599.00 USD
Regular price $46,599.00 USD Sale price $46,599.00 USD
Sale Sold out

Free Shipping Available!

Constructed using the Certified Meehanite® casting process for added durability, the JET ZH-Series 4-1/8” Spindle Bore Lathes provide consistent and reliable operation. Features include a clutch operated headstock with all headstock gears hardened and ground, a universal gearbox, fully integrated coolant system, and a rapid traverse on the apron that makes the ZH-Series perfect for high-output production applications. These are the features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.

Stock Number 321890
Bed Gap (In.) 8
Carriage Travel (In.) 108-1/4
Compound Slide Travel (In.) 5-1/2
Coolant Pump Motor 1/8
Diametral Pitch Threads Number 22.0000
Drive Geared Head
Gross Weight (Lbs) 9471
Length of Gap (In.) 8
Max Tool Size (In.) 1-1/4 x 1-1/4
Model Number GH-26120ZH
Modular Pitch Threads Number 18.0000
Modular Pitch Threads Range 0.5-7
Motor (HP) 10 HP, 230/460, 3 Ph
Motor Power (HP) 10
Motor Voltage (V.) 230/460
Net Weight (Lbs.) 9362
Number of Inch Threads 48.0000
Number of Longitudinal and Cross Feed Rates 65
Number of Metric Threads 22.0000
Number of Spindle Speeds 12
Overall Dimensions (L x W x H) (In.) 178 x 43 x 57
Overall Height (In.) 57
Prewired Voltage (V.) 176 x 43 x 57
Prop 65 Cancer and Reproductive Harm
Range of Cross Feeds (IPR) .0040 - .0404
Range of Inch Threads (TPI) 2 - 30
Range of Longitudinal Feeds (IPR) .0023 - .0937
Range of Metric Threads 1 - 14
Range of Spindle Speeds (RPM) 36 - 1,600
Shipping Dimensions (L x W x H) (In.) 178 x 43 x 57
Size 26 x 120
Spindle Bore (In.) 4-1/8
Spindle Mount D1-8
Spindle Speeds 12
Spindle Taper MT5
Spindle Taper with Sleeve MT-5
Steady Rest Capacity (In.) Small 25/32 - 4-29/32, Large 3-15/16 - 9-7/16
Style (Type) Engine - Large Spindle Bore
Swing Over Bed (In.) 26
Swing Over Cross Slide (In.) 16-1/2
Swing Through Gap (In.) 34
Tailstock Spindle Travel (In.) 6
Taper in Tailstock Spindle MT-5
Weight (Lbs.) 9362
Width of Bed (In.) 16
Wiring Remarks Additional Fee required to rewire to 460V
View full details

Jet - GH-26120ZH, 4-1/8" Spindle Bore Geared Head Lathe

Product Details

Features

- 12" 3 Jaw scroll chuck with top reversing jaws
- 2 Steady rests with roller bearings
- Bed ways are induction hardened and ground for durability
- E-Stop on Carriage for added safety
- Electronic Chuck Key Holder
- Fitted top mats to hold tooling
- Full Length Splash Guard
- Heavy-duty tailstock and quill
- Large easy to use foot brake
- Rapid power traverse to cross slide and carriage

Shipping Details

Shipping Type: Flatbed

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
