Jet

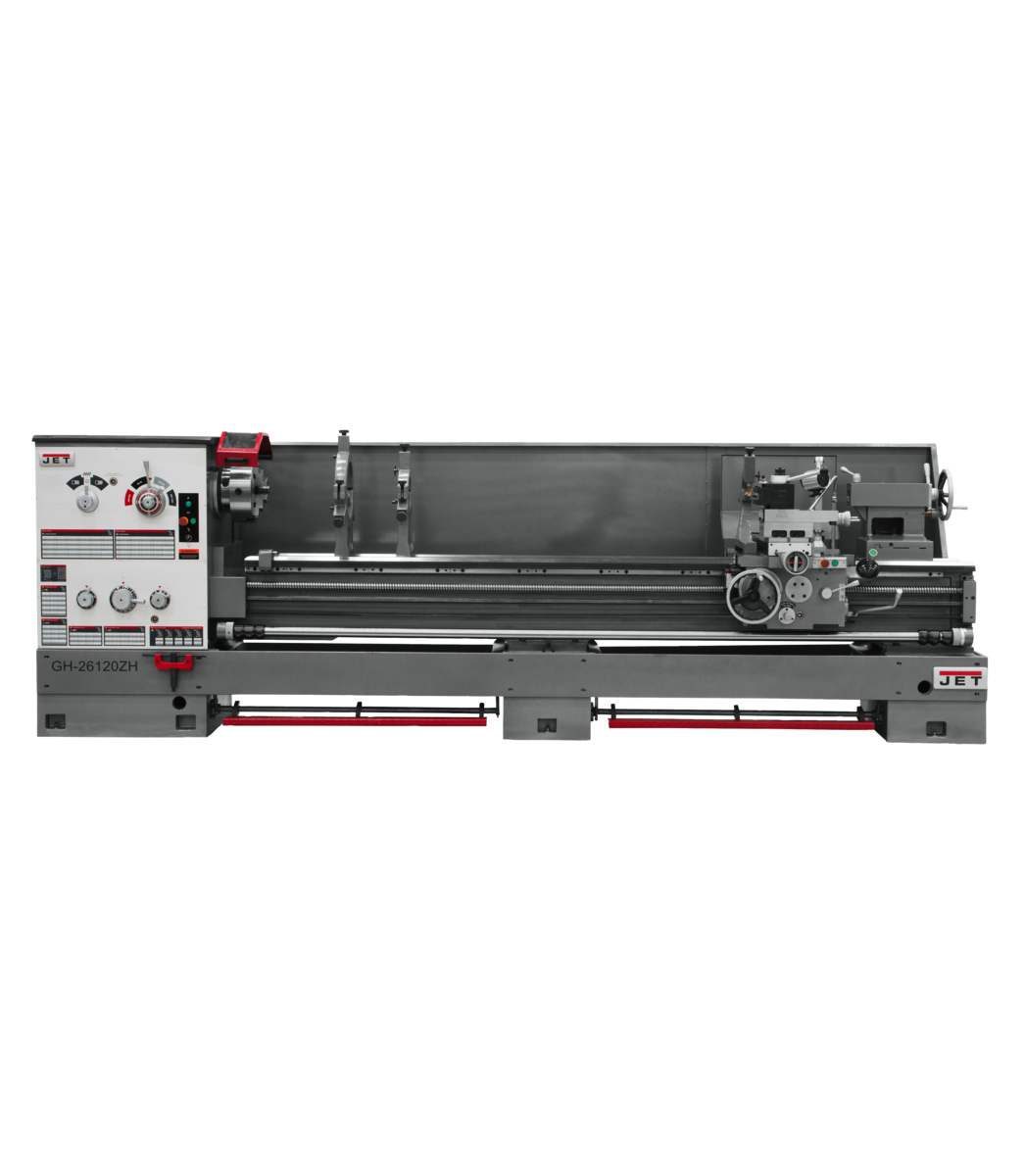

GH-26120ZH With Taper Attachment

GH-26120ZH With Taper Attachment

Product SKU: 321893

MSRP Price: $67327.14

Regular price $54,879.00 USD
Regular price $54,879.00 USD Sale price $54,879.00 USD
Sale Sold out

Free Shipping Available!

Constructed using the Certified Meehanite® casting process for added durability, the JET ZH-Series 4-1/8” Spindle Bore Lathes provide consistent and reliable operation. Features include a clutch operated headstock with all headstock gears hardened and ground, a universal gearbox, fully integrated coolant system, and a rapid traverse on the apron that makes the ZH-Series perfect for high-output production applications. These are the features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.

Stock Number 321893
Carriage Travel (In.) 108-1/4
Compound Slide Travel (In.) 5-1/2
Drive Geared Head
Length of Gap (In.) 8
Max Tool Size (In.) 1-1/4 x 1-1/4
Model Number GH-26120ZH
Motor (HP) 10 HP, 230/460, 3 Ph
Number of Inch Threads 48.0000
Number of Longitudinal and Cross Feed Rates 65
Number of Metric Threads 22.0000
Number of Spindle Speeds 12
Overall Dimensions (L x W x H) (In.) 178 x 43 x 57
Prop 65 Cancer and Reproductive Harm
Range of Cross Feeds (IPR) .0040 - .0404
Range of Inch Threads (TPI) 2-30
Range of Longitudinal Feeds (IPR) .0023 - .0937
Range of Metric Threads 1 - 14
Range of Spindle Speeds (RPM) 36 - 1,600
Size 26 x 120
Spindle Bore (In.) 4-1/8
Spindle Mount D1-8
Spindle Taper with Sleeve MT-5
Steady Rest Capacity (In.) Small 25/32 - 4-29/32, Large 3-15/16 - 9-7/16
Style (Type) Engine - Large Spindle Bore
Swing Over Bed (In.) 26
Swing Over Cross Slide (In.) 16-1/2
Swing Through Gap (In.) 34
Tailstock Spindle Travel (In.) 6
Taper in Tailstock Spindle MT-5
Weight (Lbs.) 9362
Width of Bed (In.) 16
View full details

Jet - GH-26120ZH With Taper Attachment

Product Details

Features

- 12" 3 Jaw scroll chuck with top reversing jaws
- 2 Steady rests with roller bearings
- Bed ways are induction hardened and ground for durability
- E-Stop on Carriage for added safety
- Electronic Chuck Key Holder
- Fitted top mats to hold tooling
- Full Length Splash Guard
- Heavy-duty tailstock and quill
- Large easy to use foot brake
- Rapid power traverse to cross slide and carriage

Shipping Details

Shipping Type: Flatbed

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
