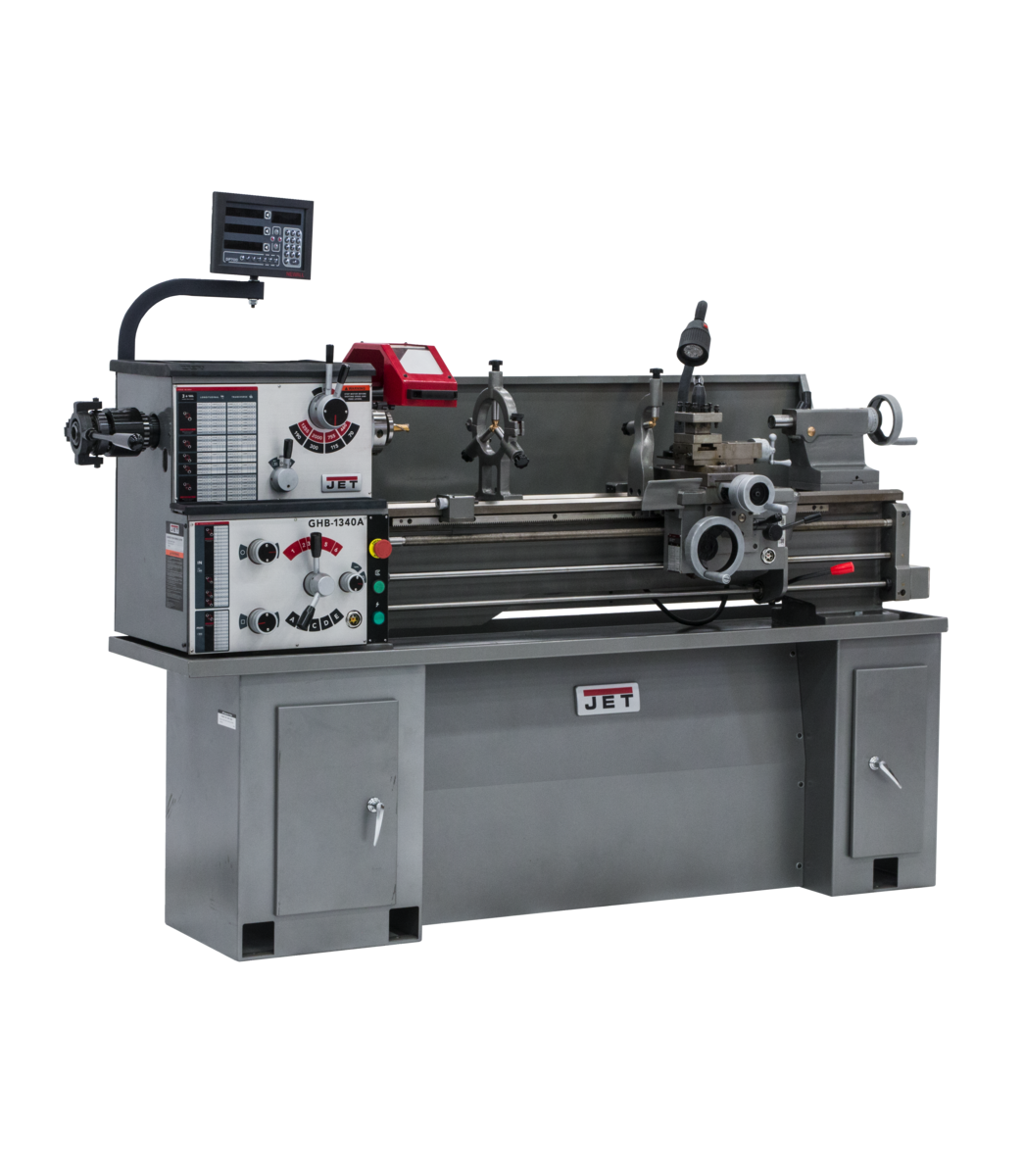

GHB-1340A Lathe With Newall NMS300 DRO With Taper Attachment

GHB-1340A Lathe With Newall NMS300 DRO With Taper Attachment

Product SKU: 323115

MSRP Price: $15199

Regular price $15,199.00 USD
Regular price $15,199.00 USD Sale price $15,199.00 USD
Sale Sold out

Free Shipping Available!

JET Geared Head Bench Lathes feature an enclosed gearbox for smooth, quiet operation. Precision roller bearings support the hardened and ground spindle resulting in tight tolerances. Headstock is constantly oiled during operation to keep down needed maintenance and repair. Each JET Lathe comes loaded with features you’ve come to expect, all backed by the industry leading JET Two Year Warranty.

Stock Number 323115
Carriage Travel (In.) 35
Compound Slide Travel (In.) 2-11/16
Drive Geared Head
Length of Gap (In.) 8
Max Tool Size (In.) 5/8 x 5/8
Model Number GHB-1340A
Motor (HP) 2 HP, 230V, 1Ph
Number of Inch Threads 38.0000
Number of Longitudinal and Cross Feed Rates 40
Number of Metric Threads 23.0000
Number of Spindle Speeds 8
Overall Dimensions (L x W x H) (In.) 79 x 28-1/2 x 30
Prop 65 Cancer and Reproductive Harm
Range of Cross Feeds (IPR) .0006 - .0130
Range of Inch Threads (TPI) 3-1/2 - 80
Range of Longitudinal Feeds (IPR) .0018 - .0374
Range of Metric Threads .45 - 10
Range of Spindle Speeds (RPM) 70 - 2,000
Size 13 x 40
Spindle Bore (In.) 1-3/8
Spindle Mount D1-4
Spindle Taper with Sleeve MT-5 (MT-3)
Steady Rest Capacity (In.) 2-3/4
Style (Type) Bench - Geared Head
Swing Over Bed (In.) 13
Swing Over Cross Slide (In.) 7-25/32
Swing Through Gap (In.) 18-3/4
Tailstock Spindle Travel (In.) 3-3/4
Taper in Tailstock Spindle MT-3
Weight (Lbs.) 1154
Width of Bed (In.) 7-3/8
View full details

Jet - GHB-1340A Lathe With Newall NMS300 DRO With Taper Attachment

Product Details


- 6" 3-jaw direct mount chuck with top reversing jaw
- Compound and cross slide have backlash elimination
- Fast, easy speed changes
- Hardened and ground gears are featured in the headstock and gearbox
- Image shown with optional bench, p/n 321443AK
- Independent lead screw and feed rod
- Spindle actuation control is apron mounted
- Tailstock may be offset for turning taper
- Tolerance test certificate included
- V-Way bed design is induction hardened and ground

Shipping Details

Shipping Type: LTL

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
