Jet

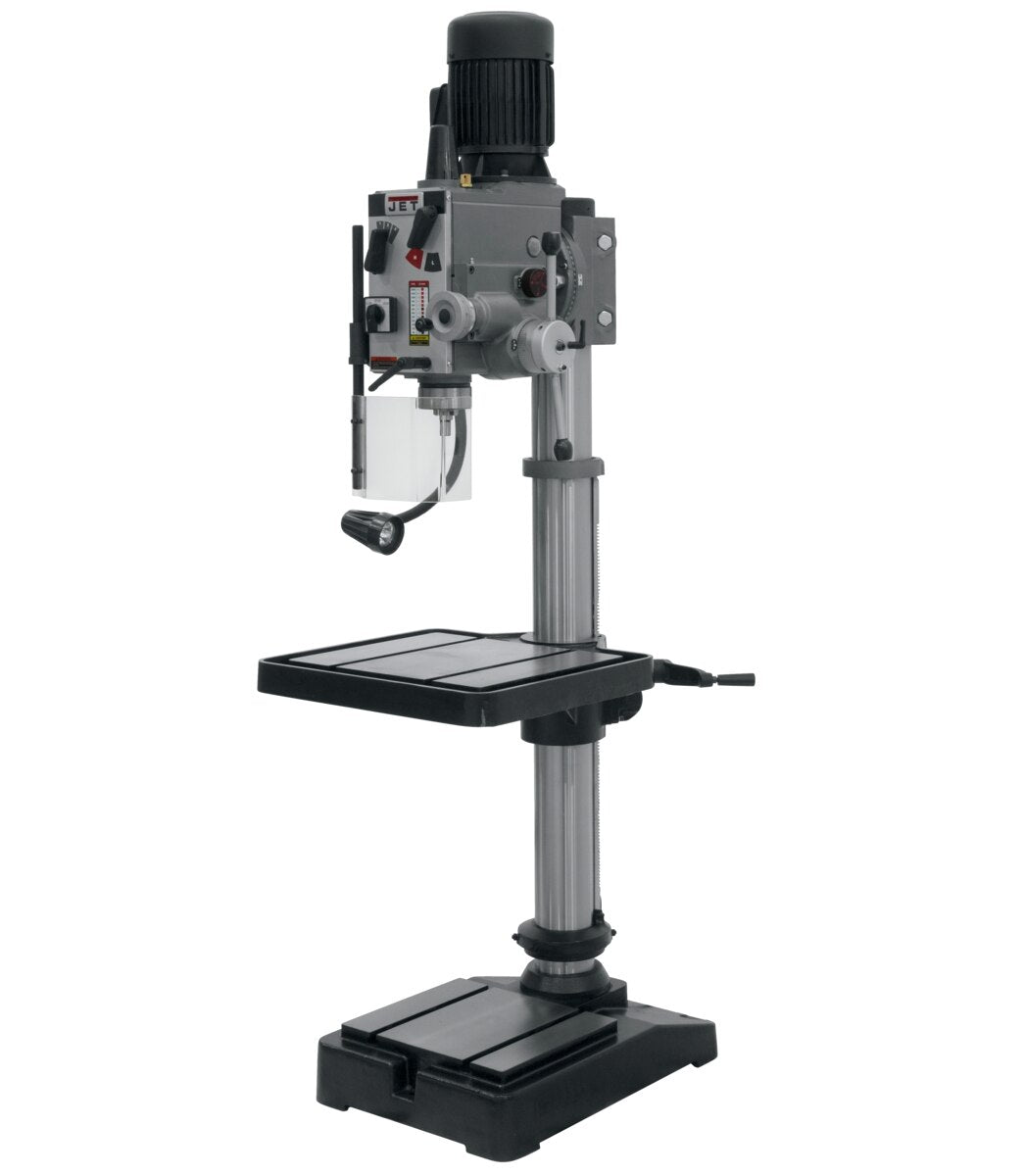

GHD-20PF, 20" Gear Head Drill Press With Power Down feed 230V, 3Ph
GHD-20PF, 20" Gear Head Drill Press With Power Down feed 230V, 3Ph
Product SKU: 354024
MSRP Price: $6299.0
Regular price
$6,299.00 USD
Regular price
$6,299.00 USD
Sale price
$6,299.00 USD
Unit price
per
Free Shipping Available!
Couldn't load pickup availability
Achieve precision drilling from a design that includes an easy-to-read internal depth gauge, three power down feeds, built-in spindle lock and calibrated fine down feed. JET backs this reliable drill press with a Two Year Warranty.
| Stock Number | 354024 |
|---|---|
| Base Dimensions (In.) | 26 x 18 |
| Base Work Table (In.) | 15-1/4 x 13 |
| Column Diameter (In.) | 4-1/2 |
| Distance Column to Spindle (In.) | 10 |
| Drilling Capacity Cast Iron (In.) | 1-1/2 |
| Drilling Capacity Mild Steel (In.) | 1-1/4 |
| Drills to Center of Circle (In.) | 20 |
| Model Number | GHD-20PF |
| Motor (HP) | 2 HP (2 Speed) , 230V, 3Ph |
| Overall Dimensions (L x W x H) (In.) | 32 x 24 x 71 |
| Prop 65 | Cancer and Reproductive Harm |
| Quill Diameter (In.) | 3 |
| Quill Feed | Manual |
| Range of Spindle Speeds (RPM) | 60, 120, 130, 230, 260, 450, 460, 800, 900, 1,500, 1,600, 3,000 |
| Spindle Distance to Base (In.) | 44-15/16 |
| Spindle Distance to Table (Max.) (In.) | 30-1/2 |
| Spindle Taper (In. x TPI) | MT-3 |
| Spindle Travel (In.) | 4-1/2 |
| Style (Type) | Geared Head |
| T-Slot Centers (In.) | 9 |
| Table Size (L x W) (In.) | 21-3/4 x 19-1/2 |
| Table Travel (In.) | 25-1/2 |
| Weight (Lbs.) | 660 |
| Work Table Weight Capacity (Lbs.) | 275 |
Jet - GHD-20PF, 20" Gear Head Drill Press With Power Down feed 230V, 3Ph
Product Details
Features
-
- Head tilts left or right
- Large production table and T-slotted base
- Three power downfeed rates
-
-
-
-
-
-
Shipping Details
Shipping Type: LTL
Warranty & Legal
Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
