Jet

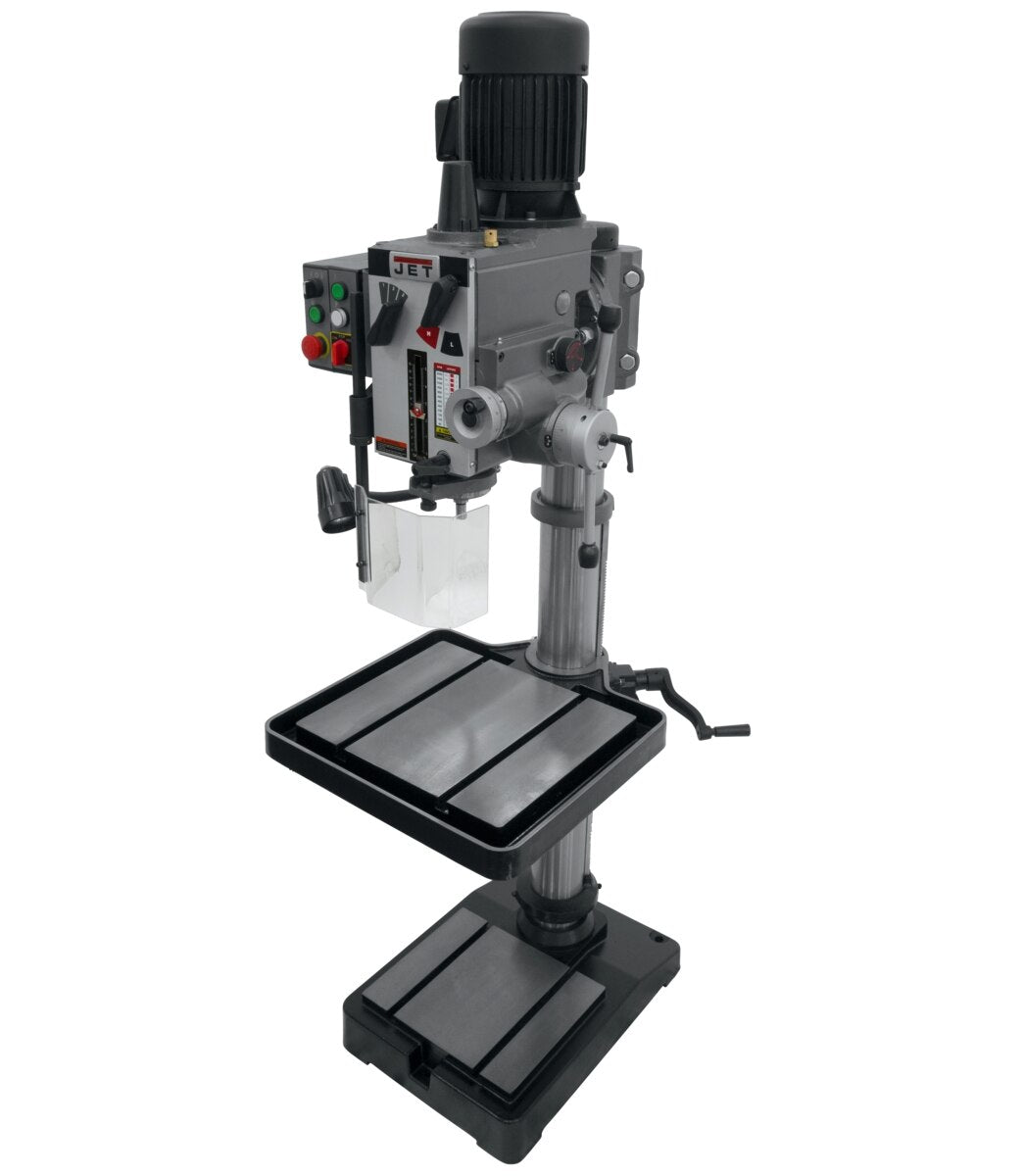

GHD-20PFT, 20" Gear Head Tapping Drill Press With Power Down feed 230V, 3Ph

GHD-20PFT, 20" Gear Head Tapping Drill Press With Power Down feed 230V, 3Ph

Product SKU: 354026

MSRP Price: $8424.29

$6,859.00 USD
$6,859.00 USD $6,859.00 USD
Sale Sold out

Free Shipping Available!

Achieve precision drilling and tapping from a design that includes an easy-to-read internal depth gauge, power downfeed speed selector, built-in spindle lock and calibrated fine down feed. JET backs this reliable combination drilling and tapping press with a Two Year Warranty.

Stock Number 354026
Base Dimensions (In.) 26 x 18
Base Work Table (In.) 15-1/4 x 13
Column Diameter (In.) 4-1/2
Distance Column to Spindle (In.) 10
Drilling Capacity Cast Iron (In.) 1-1/2
Drilling Capacity Mild Steel (In.) 1-1/4
Drills to Center of Circle (In.) 20
Model Number GHD-20PFT
Motor (HP) 2 HP (2 Speed) , 230V, 3Ph
Overall Dimensions (L x W x H) (In.) 32 x 24 x 71
Prop 65 Cancer and Reproductive Harm
Quill Diameter (In.) 3
Quill Feed Manual
Range of Spindle Speeds (RPM) 60, 120, 130, 230, 260, 450, 460, 800, 900, 1,500, 1,600, 3,000
Spindle Distance to Base (In.) 44-5/16
Spindle Distance to Table (Max.) (In.) 30-1/2
Spindle Taper (In. x TPI) MT-3
Spindle Travel (In.) 4-1/2
Style (Type) Geared Head
T-Slot Centers (In.) 9
Table Size (L x W) (In.) 21-3/4 x 19-1/2
Table Travel (In.) 25-1/2
Tapping Capacity Cast Iron (In.) 15/16
Tapping Capacity Mild Steel (In.) 15/16
Weight (Lbs.) 708
Work Table Weight Capacity (Lbs.) 275
View full details

Jet - GHD-20PFT, 20" Gear Head Tapping Drill Press With Power Down feed 230V, 3Ph

Product Details

Features

- Easily accessible table raiser
- Head tilts left or right
- Heavy-duty design allows a variety of precision drilling and tapping applications
- Integrated tapping and reversing controls
- Large production table and T-slotted base
- Power downfeed speed selector
-
-
-
-

Shipping Details

Shipping Type: LTL

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
