Jet

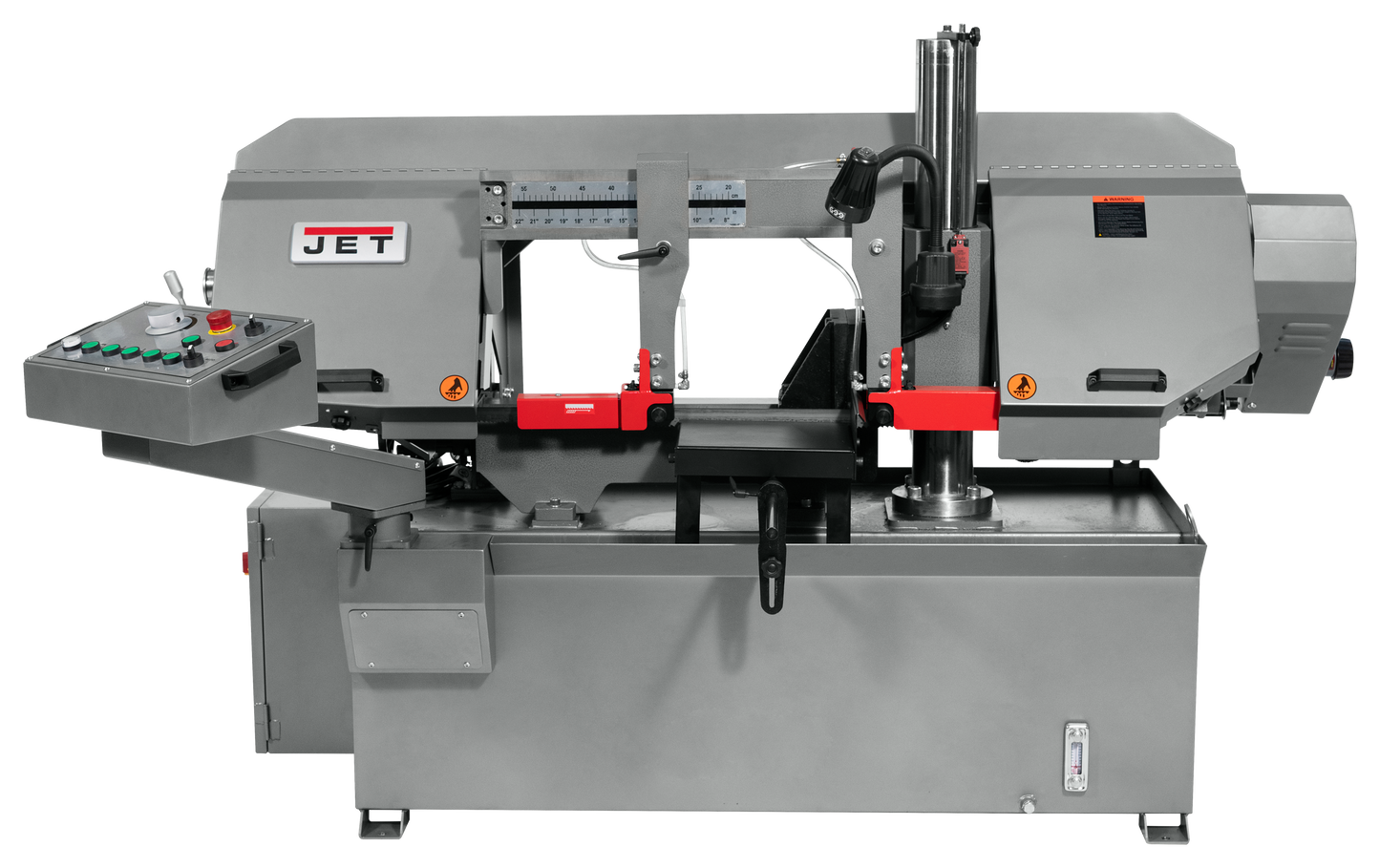

HBS1220DC 12" x 20" Semi Auto Variable Speed Dual Column Bandsaw 3HP, 230460V, 3Ph

HBS1220DC 12" x 20" Semi Auto Variable Speed Dual Column Bandsaw 3HP, 230460V, 3Ph

Product SKU: 413400

MSRP Price: $14969

Regular price $14,969.00 USD
Regular price $14,969.00 USD Sale price $14,969.00 USD
Sale Sold out

Free Shipping Available!

JET Dual Column Bandsaw is great for cutting large parts while keeping the blade as straight as possible while the head is descending during the cut.

Stock Number 413400
Bed Height (In.) 27
Blade Length (In.) 155-1/2
Blade Speed (SFPM) 95 - 295
Blade Speeds (SFPM) 86,157,228,330
Blade Wheel Diameter (In.) 16
Drive Mechanical Variable Speed
Electrics 3HP, 230/460V, 3Ph
Gross Weight (Lbs) 1628
Model Number HBS1220DC
Motor (HP) 3 HP, 230/460V, 1Ph
Net Weight (Lbs.) 1420
Overall Dimensions (L x W x H) (In.) 81 x 42-1/2 x 54-1/2
Prewired Voltage (V.) 230
Prop 65 Cancer and Reproductive Harm
Rectangle at 90 Degrees (In.) 12 x 20
Round at 90 Degrees (In.) 12
Shipping Weight (Lbs.) 1628
Square at 90 Degrees (In.) 12
Throat Depth (In.) 12 x 12
Weight (Lbs.) 1420
Blade Size (In.) 1-1/8 x 0.043 x 155-1/2
Coolant Pump Motor 1/8HP, 230/4660V, 3Ph
Oil Pump Motor 1HP, 230/460V, 3Ph
View full details

Jet - HBS1220DC 12" x 20" Semi Auto Variable Speed Dual Column Bandsaw 3HP, 230460V, 3Ph

Product Details

Features

- Heavy duty construction reduces vibration and deflection
- Coolant is distributed through the blade guides through an integrated coolant system
- Blade tension gauge helps to ensure the blade is in the correct cutting position
- Built-in, self-propelled blade brush prevents chip build up in blade guides
- Motor designed for continuous operation
- Powerful gearbox for long life
- Two column design for more productive cutting
-
-
-

Shipping Details

Shipping Type: LTL

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
