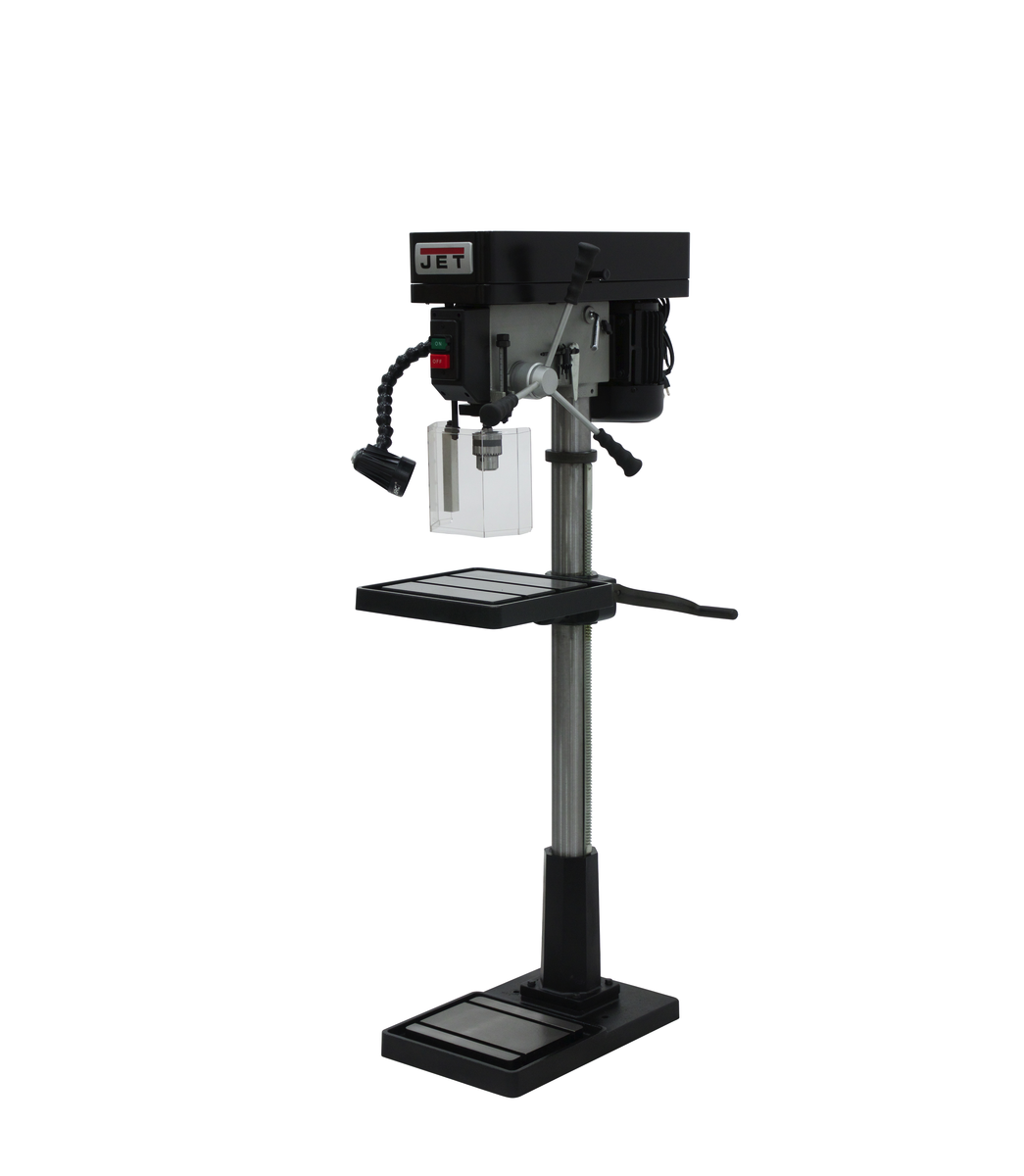

IDP-17, 17" Industrial Floor Model Drill Press

IDP-17, 17" Industrial Floor Model Drill Press

Product SKU: 354300

MSRP Price: $2119

Regular price $2,119.00 USD
Regular price $2,119.00 USD Sale price $2,119.00 USD
Sale Sold out

Free Shipping Available!

Accuracy, stability and versatility are the benchmark features of the JET 17" and 22" Industrial Drill Presses. This heavy-duty industrial line of JET Drill Presses come standard with oversize cast iron tables and base and are CSA/CUS Certified. JET backs their machines with the industry-leading Two Year Warranty.

Stock Number 354300
Base Dimensions (In.) 21-3/4 x 13-3/4 x 2-3/16
Base Work Table (In.) 16-15/16 x 10-13/16
Chuck Size (In.) 5/8
Column Diameter (In.) 3-1/8
Distance Column to Spindle (In.) 8-3/8
Drilling Capacity Cast Iron (In.) 3/4
Drilling Capacity Mild Steel (In.) 5/8
Drills to Center of Circle (In.) 17
Model Number IDP-17
Motor (HP) 1 HP, 115/230V, 1Ph
Number of Spindle Speeds 12
Overall Dimensions (L x W x H) (In.) 27-1/2 x 15-3/4 x 63
Prop 65 Cancer and Reproductive Harm
Range of Spindle Speeds (RPM) 350 - 2,800
Spindle Distance to Base (In.) 50
Spindle Distance to Table (Max.) (In.) 30-1/2
Spindle Taper (In. x TPI) MT-2
Spindle Travel (In.) 3-5/16
Style (Type) Belt Drive
T-Slot Centers (In.) 9/16
T-Slots Number and Size (In.) 2 and 1/2
Table Size (L x W) (In.) 14 x 14
Weight (Lbs.) 276
View full details

Jet - IDP-17, 17" Industrial Floor Model Drill Press

Product Details


- 1/2" diameter external positive depth stop with three nut locking feature for quick adjustment
- Adjustable tension spindle return spring
- Drill chuck and key attach to the side of the drill press always within reach of the operator
- Hinged metal belt and pulley cover
- Large Hand Grips designed with the users comfort in mind
- On/off switch located on front of the drill press head
- Rotating, 45° tilting, crank-operated worktable with quick release clamp
- Spindle is supported by high quality ball bearings
- Table ground for accuracy

Shipping Details

Shipping Type: LTL

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
