Jet

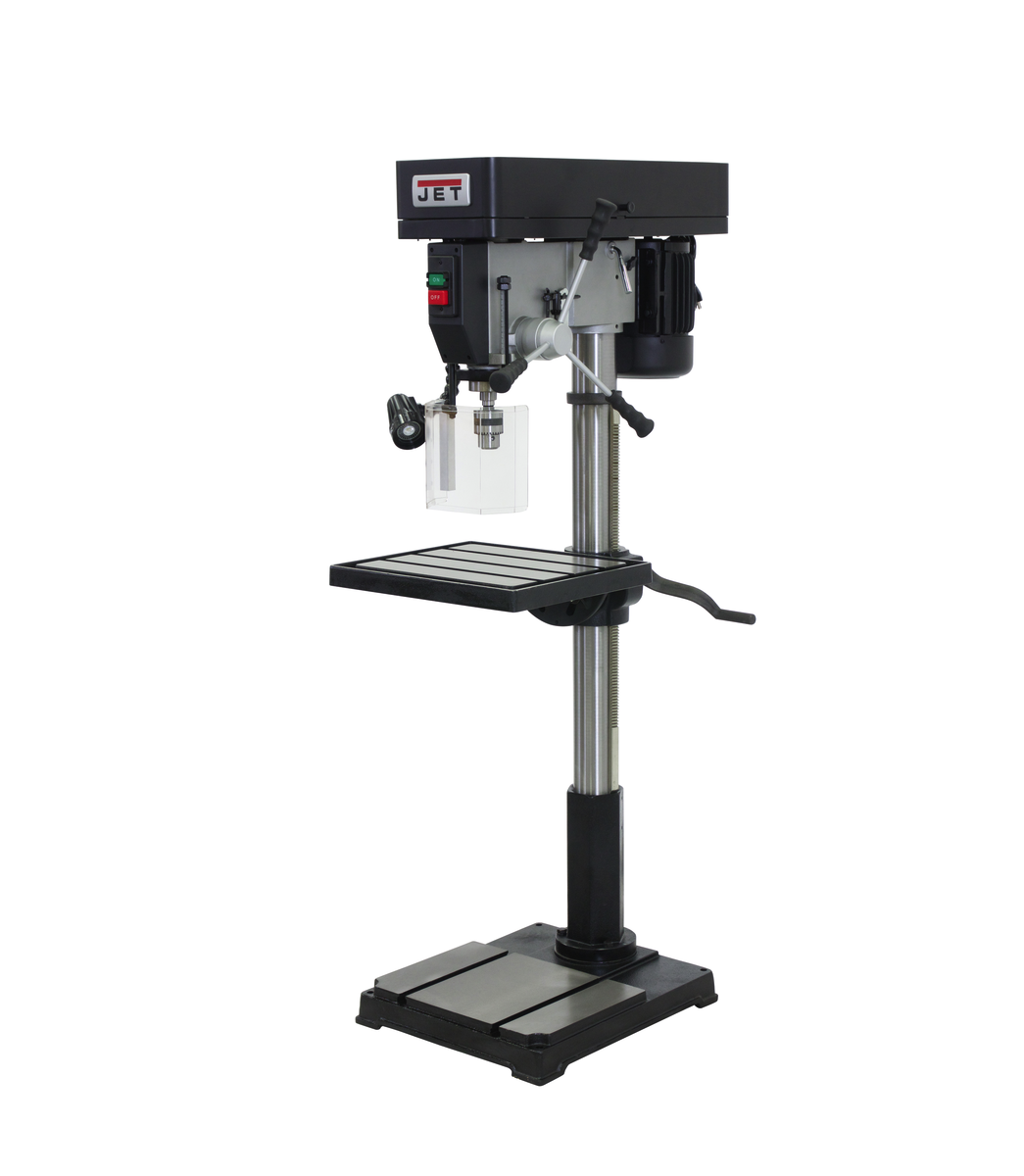

IDP-22, 22" Industrial Floor Model Drill Press

IDP-22, 22" Industrial Floor Model Drill Press

Product SKU: 354301

MSRP Price: $3181.43

Regular price $2,599.00 USD
Regular price $2,599.00 USD Sale price $2,599.00 USD
Sale Sold out

Free Shipping Available!

Accuracy, stability and versatility are the benchmark features of the JET 17" and 22" Industrial Drill Presses. This heavy-duty industrial line of JET Drill Presses come standard with oversize cast iron tables and base and are CSA/CUS Certified. JET backs their machines with the industry-leading Two Year Warranty.

Stock Number 354301
Base Dimensions (In.) 22-5/8 x 19-7/16 x 3-3/8
Base Work Table (In.) 21-1/2 x 18-5/16
Chuck Size (In.) 5/8
Column Diameter (In.) 3-5/8
Distance Column to Spindle (In.) 10-7/8
Drilling Capacity Cast Iron (In.) 1-1/4
Drilling Capacity Mild Steel (In.) 1
Drills to Center of Circle (In.) 22
Model Number IDP-22
Motor (HP) 1-1/2HP, 115/230V, 1Ph
Number of Spindle Speeds 12
Overall Dimensions (L x W x H) (In.) 35 x 19 x 67
Prop 65 Cancer and Reproductive Harm
Range of Spindle Speeds (RPM) 175 - 3,050
Spindle Distance to Base (In.) 48-1/2
Spindle Distance to Table (Max.) (In.) 28
Spindle Taper (In. x TPI) MT-3
Spindle Travel (In.) 4-13/16
Style (Type) Belt Drive
T-Slot Centers (In.) 3/4
T-Slots Number and Size (In.) 2 and 5/8
Table Size (L x W) (In.) 18-5/8 x 16-1/8
Weight (Lbs.) 364
Work Table Weight Capacity (Lbs.) 176
Enhanced Bullet 4 VISIBILITY: Built-in LED worklight provides additional visibility.
View full details

Jet - IDP-22, 22" Industrial Floor Model Drill Press

Product Details

Features

- 1/2" diameter external positive depth stop with three nut locking feature for quick adjustment
- Adjustable tension spindle return spring
- Drill chuck and key attach to the side of the drill press always within reach of the operator
- Hinged metal belt and pulley cover
- Large Hand Grips designed with the users comfort in mind
- On/off switch located on front of the drill press head
- Rotating, 45° tilting, crank-operated worktable with quick release clamp
- Spindle is supported by high quality ball bearings
- Table ground for accuracy
-

Shipping Details

Shipping Type: LTL

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
