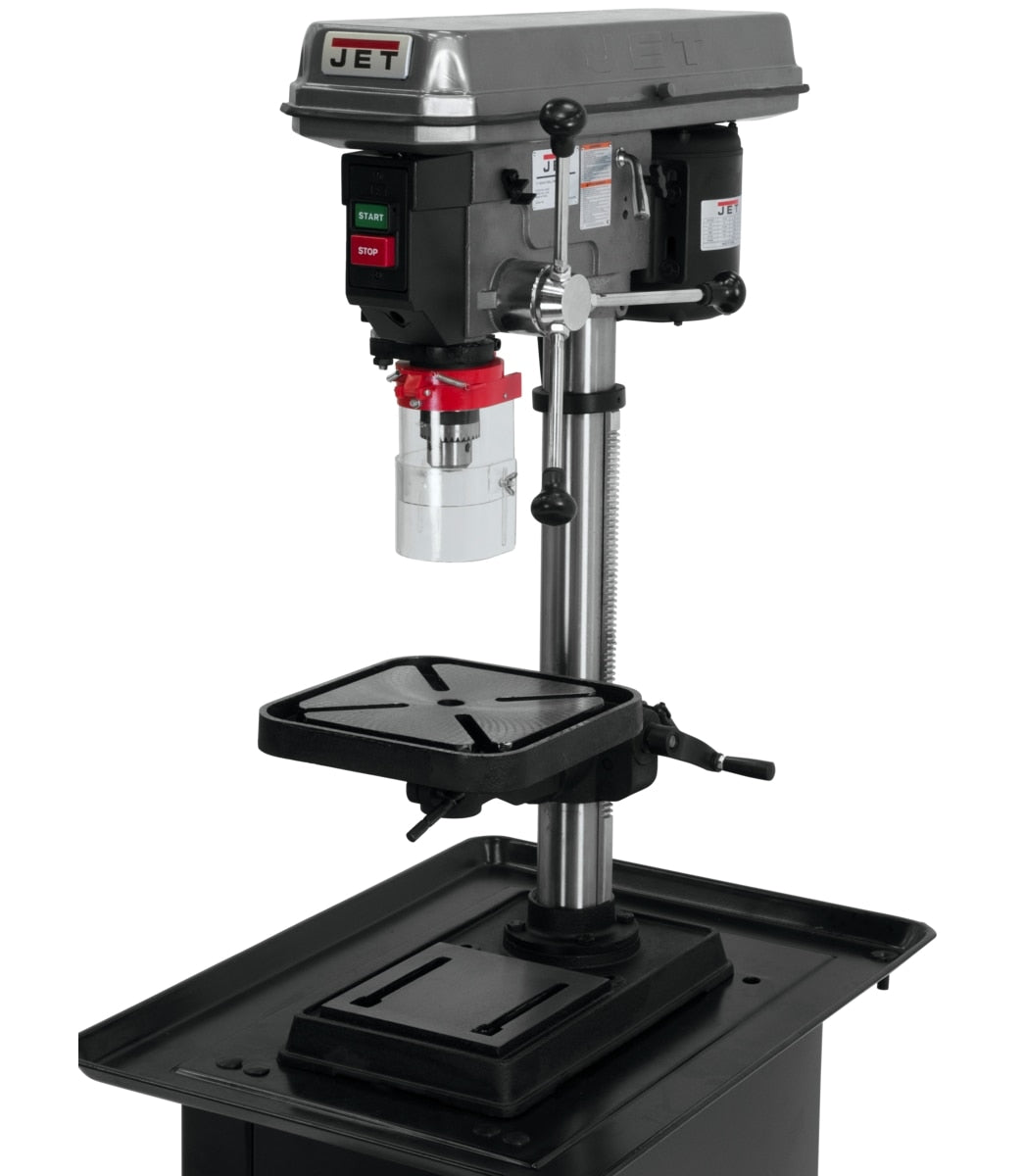

J-2530, 15" Bench Model Drill Press 115V 1Ph
J-2530, 15" Bench Model Drill Press 115V 1Ph
Product SKU: 354401
MSRP Price: $899
Regular price
$899.00 USD
Regular price
$899.00 USD
Sale price
$899.00 USD
Unit price
per
Free Shipping on All Orders Over $1500!
Couldn't load pickup availability
Accuracy, stability and versatility are the benchmark features of the JET 15" and 20" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty.
| Stock Number | 354401 |
|---|---|
| Base Dimensions (In.) | 18 x 10-1/2 |
| Base Work Table (In.) | 8 x 8 |
| Column Diameter (In.) | 2-7/8 |
| Distance Column to Spindle (In.) | 7-1/2 |
| Drilling Capacity Cast Iron (In.) | 5/8 |
| Drilling Capacity Mild Steel (In.) | 1/2 |
| Drills to Center of Circle (In.) | 15 |
| Model Number | J-2530 |
| Motor (HP) | 3/4 HP, 115/230V, 1Ph |
| Number of Spindle Speeds | 16 |
| Overall Dimensions (L x W x H) (In.) | 31 x 13 x 39-1/2 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Spindle Speeds (RPM) | 200, 290 ,350, 430, 500, 580, 640, 720, 800, 870, 1,440, 1,630, 1,820, 2,380, 2,540, 3,630 |
| Spindle Distance to Base (In.) | 24 |
| Spindle Distance to Table (Max.) (In.) | 15 |
| Spindle Taper (In. x TPI) | MT-2 |
| Spindle Travel (In.) | 3-3/8 |
| Style (Type) | Belt Drive |
| T-Slots Number and Size (In.) | 3 - 5/8 |
| Table Size (L x W) (In.) | 11-1/2 x 11-1/2 |
| Table Travel (In.) | 15-1/2 |
| Weight (Lbs.) | 157 |
| Work Table Weight Capacity (Lbs.) | 44 |
| Enhanced Bullet 4 | SAFETY: Telescoping spindle guard. |
Jet - J-2530, 15" Bench Model Drill Press 115V 1Ph
Product Details
Features
-
- Cast iron head
- Constructed to provide a solid base for drilling
- Large ground steel column for maximum head and table support
-
-
-
-
-
-
Shipping Details
Shipping Type: LTL
Warranty & Legal
Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
