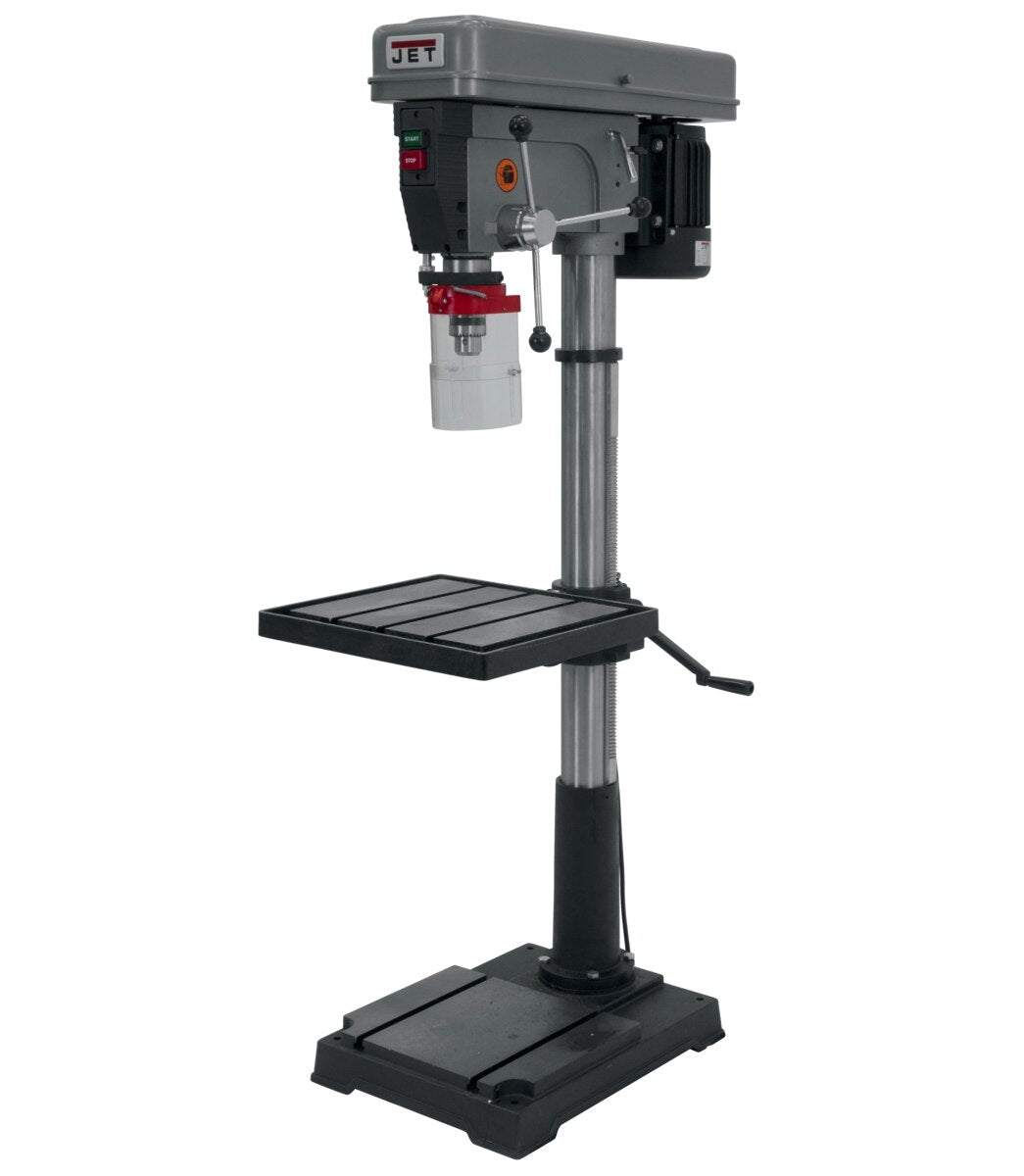

J-2550, 20" Floor Model Drill Press 115V 1Ph

J-2550, 20" Floor Model Drill Press 115V 1Ph

Product SKU: 354402

MSRP Price: $1729

Regular price $1,729.00 USD
Regular price $1,729.00 USD Sale price $1,729.00 USD
Sale Sold out

Free Shipping Available!

Accuracy, stability and versatility are the benchmark features of the JET 15" and 20" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty.

Stock Number 354402
Base Dimensions (In.) 22-3/4 x 17-3/4
Column Diameter (In.) 3-5/8
Distance Column to Spindle (In.) 10
Drilling Capacity Cast Iron (In.) 3/4
Drilling Capacity Mild Steel (In.) 5/8
Drills to Center of Circle (In.) 20
Model Number J-2550
Motor (HP) 1 HP, 115/230V, 1Ph
Number of Spindle Speeds 12
Overall Dimensions (L x W x H) (In.) 33-1/2 x 18-1/2 x 67
Prop 65 Cancer and Reproductive Harm
Range of Spindle Speeds (RPM) 150, 260, 300, 440, 490, 540, 1,150, 1,550, 1,840, 2,220, 2,950, 4,200
Spindle Distance to Base (In.) 43-1/2
Spindle Distance to Table (Max.) (In.) 24
Spindle Taper (In. x TPI) MT-3
Spindle Travel (In.) 4-3/4
Style (Type) Belt Drive
T-Slot Centers (In.) 4
T-Slots Number and Size (In.) 3 and 1/2
Table Size (L x W) (In.) 18-11/16 x 16-3/4
Table Travel (In.) 21-1/2
Weight (Lbs.) 304
Work Table Weight Capacity (Lbs.) 66
Enhanced Bullet 4 PRECISION: Accurate depth stop for precice hole depths.
View full details

Jet - J-2550, 20" Floor Model Drill Press 115V 1Ph

Product Details


- 4-3/4" stroke for deep hole applications
- Cast iron head
- Constructed to provide a solid base for drilling
- Large ground steel column for maximum head and table support
- Large production table tilts 45°
- Large quill allows greater accuracy
- Telescoping safety spindle guard
- The enclosed spindle assembly is supported by four permanently lubricated ball bearings for greater precision and accuracy

Shipping Details

Shipping Type: LTL

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
