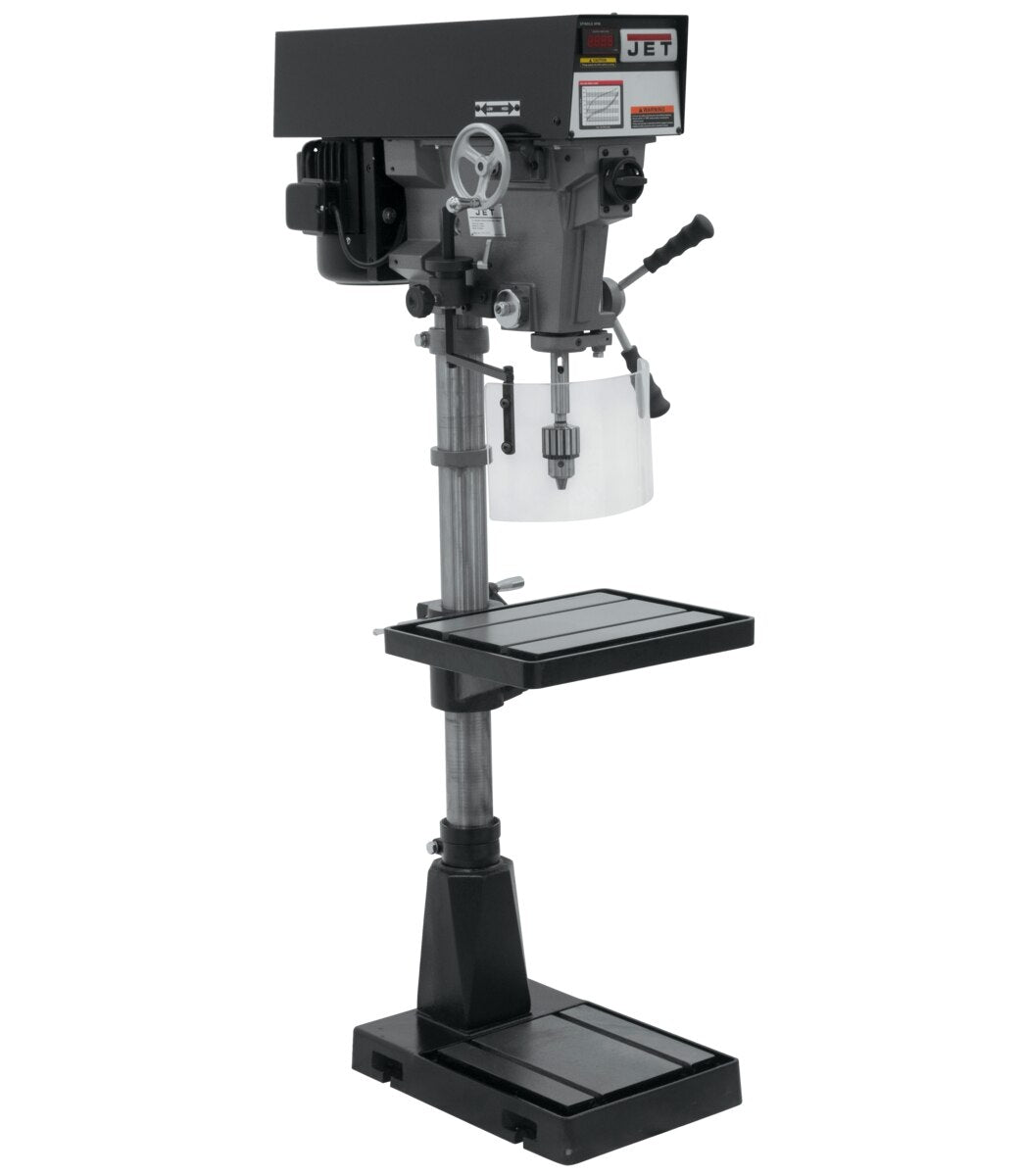

J-A5818 15" Variable Speed Floor Model Drill Press 230/460V
J-A5818 15" Variable Speed Floor Model Drill Press 230/460V
Product SKU: 354551
MSRP Price: $3071.43
Free Shipping Available!
Couldn't load pickup availability
These JET Drill Presses use a variable-speed motor with the stepped-pulley system, and come equipped with a continuously variable transmission. This enables use at a wide range of speeds, as well as the ability to change speed during operation. A scale-marked hand wheel that matches the desired machine speed is mounted to a reduction gearing system for precise operator control. This adjusts the gearing ratio between the motor's fixed pulley and the output shaft's variable pulley, changing the speed of the chuck. A tensioner pulley is implemented in the belt transmission to take up or release the slack in the belt as the speed changes.
| Stock Number | 354551 |
|---|---|
| Base Dimensions (In.) | 20-7/16 x 14-3/16 |
| Base Work Table (In.) | 12-1/8 x 11-13/16 |
| Column Diameter (In.) | 3 |
| Distance Column to Spindle (In.) | 7-1/2 |
| Drilling Capacity Cast Iron (In.) | 5/8 |
| Drilling Capacity Mild Steel (In.) | 1/2 |
| Drills to Center of Circle (In.) | 15 |
| Model Number | J-A5818 |
| Motor (HP) | 1 HP, 230/460V, 3Ph |
| Overall Dimensions (L x W x H) (In.) | 30 x 20 x 71 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Spindle Speeds (RPM) | 400 - 5,000 |
| Spindle Distance to Base (In.) | 44-1/2 |
| Spindle Distance to Table (Max.) (In.) | 25-3/4 |
| Spindle Taper (In. x TPI) | MT-2 |
| Spindle Travel (In.) | 6 |
| Style (Type) | Variable |
| T-Slot Centers (In.) | 5-5/16 |
| T-Slots Number and Size (In.) | 2 and 1/2 |
| Table Size (L x W) (In.) | 15 x 18 |
| Table Travel (In.) | 16-3/4 |
| Weight (Lbs.) | 426 |
| Work Table Weight Capacity (Lbs.) | 90 |
Jet - J-A5818 15" Variable Speed Floor Model Drill Press 230/460V
Product Details
Features
-
- 3" column diameter for maximum head support
- 6" stroke for deep hole application
- Full bearing support on quill for maximum spindle stiffness
-
-
-
-
-
-
Shipping Details
Shipping Type: LTL
Warranty & Legal
Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
