Jet

JB-10R Portable Plate Beveling Machine for Straight & Round Chamfers

JB-10R Portable Plate Beveling Machine for Straight & Round Chamfers

Product SKU: 751010

MSRP Price: $2038.79

$1,679.00 USD
$1,679.00 USD $1,679.00 USD
Sale Sold out

Free Shipping Available!

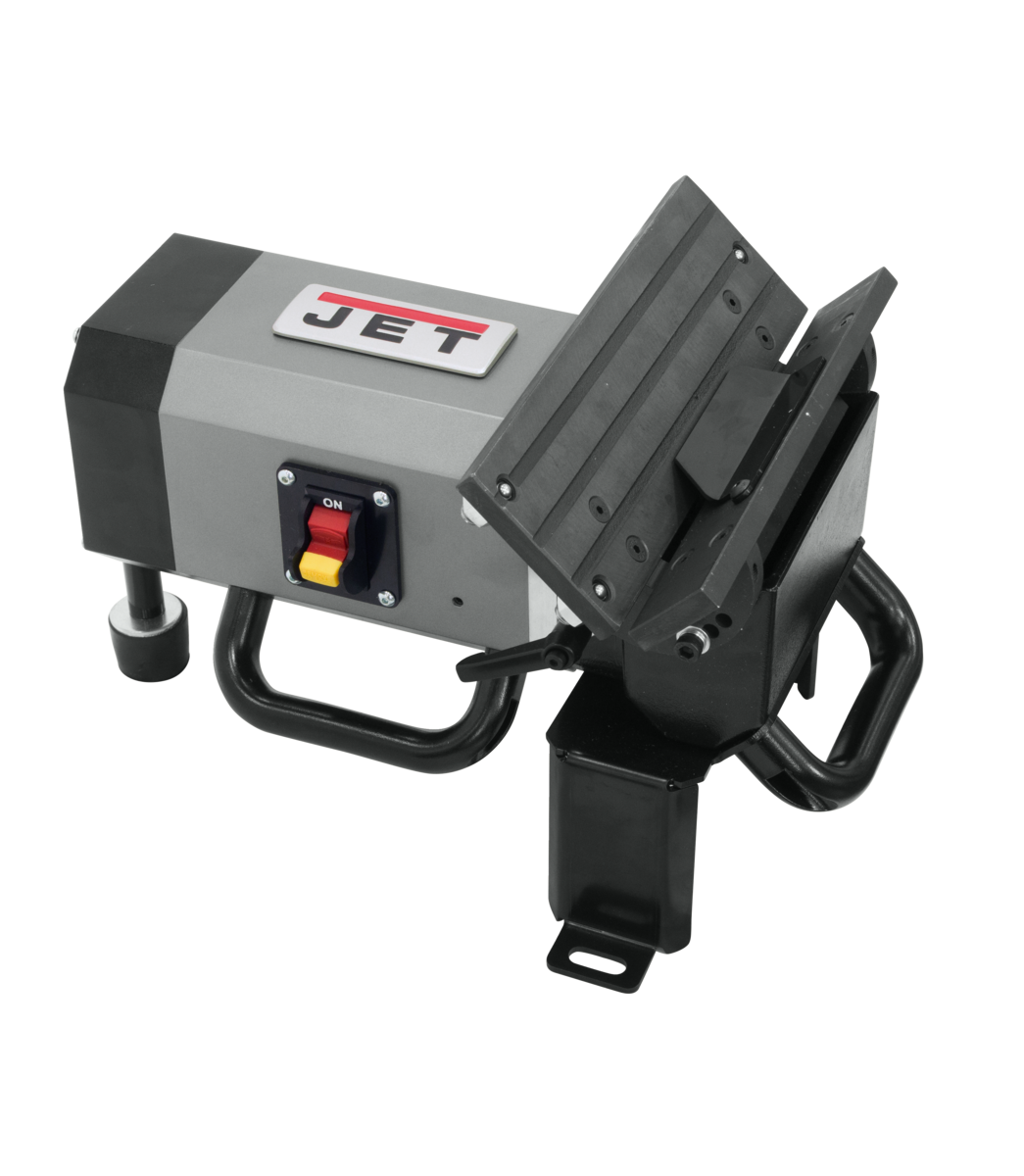

Weighing roughly 20-pounds, the JET JB-10R is portable and easy to move around the shop. Designed to produce both straight and round corner edge bevels, it is equipped with a 1-horsepower brushless motor for powerful torque at every speed. The milling type cutter heads with carbide inserts provide precision beveling giving your piece a pristine finish or a clean cut for a stronger weld. R3 and R5 Indexible Inserts included, providing 2 curved radius beveling options.

Stock Number 751010
Gross Weight (Lbs) 22
Model Number JB-10R
Overall Dimensions (L x W x H) (In.) 15.7 x 11.02 x 11.8
Prop 65 Cancer and Reproductive Harm
View full details

Jet - JB-10R Portable Plate Beveling Machine for Straight & Round Chamfers

Product Details

Features

- CE Certified
- Chamfers both straight and round materials with the change of the blade
- Cooling fan prevents overheating of the motor
- Cutting blade with 5 indexable blades
- Depth of cut is adjustable 15° to 45°
- Eliminates slow grinding, fumes, heat, and smoke, saving both time and strain on the operator
- Temperature protected: If the temperature reaches over 105C (221 F) the machine will automatically shut off
- Three ball pins are added on the guide plate so the contact area can be adjusted at all times, ensuring a smooth chamfering process
- V-Block style creates consistent edge quality
-

Shipping Details

Shipping Type: Parcel

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
