Jet

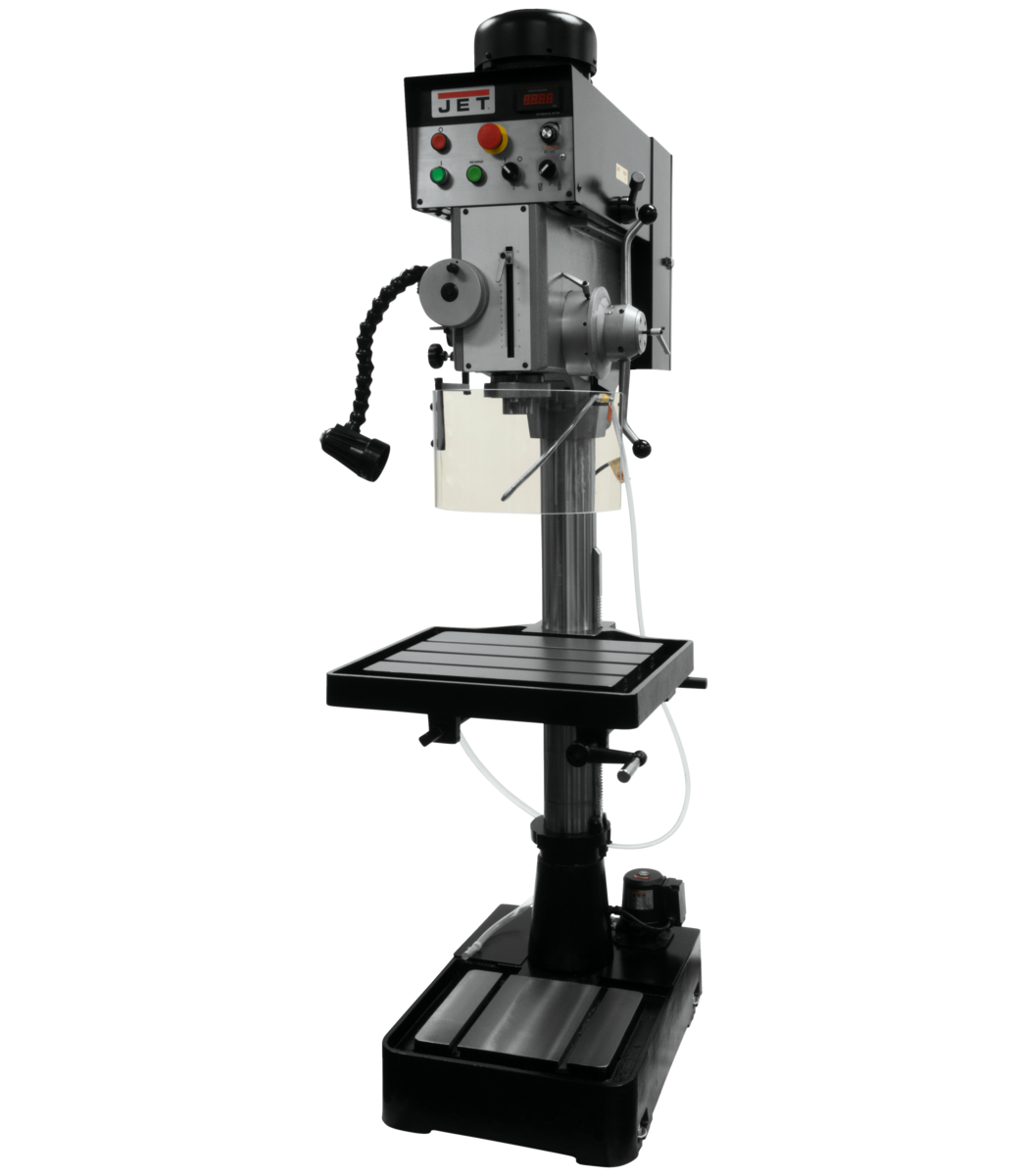

JDP-20EST-460-PDF, 20" EVS Geared Head Drill Press With Tapping & Power Downfeed 460V

JDP-20EST-460-PDF, 20" EVS Geared Head Drill Press With Tapping & Power Downfeed 460V

Product SKU: 354246

MSRP Price: $9745.71

Regular price $7,859.00 USD
Regular price $7,859.00 USD Sale price $7,859.00 USD
Sale Sold out

Free Shipping Available!

Accuracy, stability and versatility are the benchmark features of the JET 20" Drill Presses. This high-quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. The spindle head is supported by high quality ball bearings. Designed to permit continuous speed adjustment - even during operation. Forward and reverse tapping capabilities, an emergency stop, and a heavy-duty casted head are but a few of the features JET includes to enhance overall use and accuracy. JET backs their machines with the industry leading Two Year Warranty and are CSA/CUS Certified.

Stock Number 354246
Base Dimensions (In.) 27 x 19
Base Size (In.) 27 x 19
Column Diameter (In.) 4-1/2
Distance Column to Spindle (In.) 10-7/16
Drilling Capacity Mild Steel (In.) 2
Drills to Center of Circle (In.) 20
Gross Weight (Lbs) 847
Inverter Type B Type 230V 3Ph
Model Number JDP20EVST-460-PDF
Motor (HP) 2 HP, 460V 3ph
Motor Power (HP) 2
Motor Voltage (V.) 460
Net Weight (Lbs.) 808
Overall Dimensions (L x W x H) (In.) 42.5 x 27.16 x 78.74
Prewired Voltage (V.) 460
Prop 65 Cancer and Reproductive Harm
Quill Travel w/ Powerfeed Engaged (In.) 6
Range of Spindle Speeds (RPM) 60 - 2,000(60-540/225-2000)
Spindle Distance to Base (In.) 44.68
Spindle Distance to Table (Max.) (In.) 25.5
Spindle Taper (In. x TPI) MT-4
Spindle Travel Auto (In.) 60-2,000
Spindle Travel (In.) 6
Style (Type) Variable Speed
Swing (In.) 20
T-Slot Centers (In.) 7-7/16
T-Slots Number and Size (In.) 3 - 5/8
Table Size (L x W) (In.) 22x18-3/4
Table Travel (In.) 20
Tapping Capacity Cast Iron (In.) 1
Tapping Capacity Mild Steel (In.) 1
Weight (Lbs.) 847
Work Table Weight Capacity (Lbs.) 154
View full details

Jet - JDP-20EST-460-PDF, 20" EVS Geared Head Drill Press With Tapping & Power Downfeed 460V

Product Details

Features

- CSA Coolant System
- Front Mounted LED Spindle RPM Readout
- Front mounted positive control depth stop
- Heavy-duty steel column for increased precision and rigidity
- High torque at all speeds both forward and reverse
- Large Hand Grips designed with the users comfort in mind
- Large precision ground T-Slot production table for easy set ups
- Latest AC Inverter Variable Speed Technology
-
-

Shipping Details

Shipping Type: LTL

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
