Jet

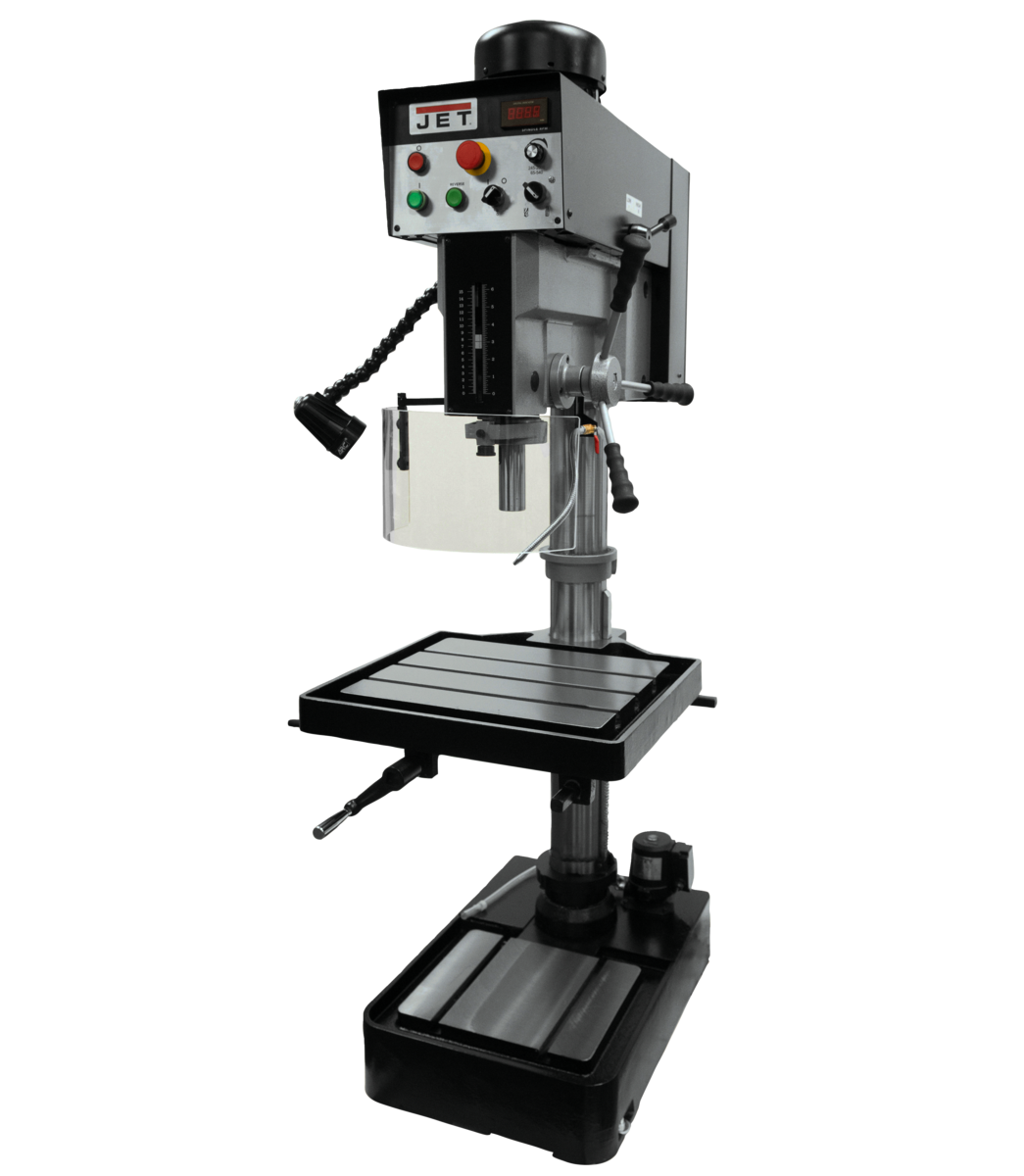

JDP-20EVS-110, 20" EVS Drill Press 120V

JDP-20EVS-110, 20" EVS Drill Press 120V

Product SKU: 354220

MSRP Price: $7352.86

Regular price $5,959.00 USD
Regular price $5,959.00 USD Sale price $5,959.00 USD
Sale Sold out

Free Shipping Available!

JET Electronic Variable Speed Drill Presses offer spindle speed rates between 65 and 2000 RPM for a wide variety of applications. Designed to permit continuous speed adjustment - even during operation. Emergency stop and a heavy-duty casted head are but a few of the features JET includes to enhance overall use and accuracy.

Stock Number 354220
Base Dimensions (In.) 27 x 19
Column Diameter (In.) 4-1/2
Distance Column to Spindle (In.) 10-7/16
Drilling Capacity Cast Iron (In.) 1-1/2
Drilling Capacity Mild Steel (In.) 1-3/8
Drills to Center of Circle (In.) 20
Inverter Type 115V, Single Phase
Model Number JDP-20EVS-110
Motor (HP) 2 HP, 115V 1ph
Overall Dimensions (L x W x H) (In.) 38.18 x 27.16 x 79.52
Prop 65 Cancer and Reproductive Harm
Range of Spindle Speeds (RPM) 65-540 /245- 2,000
Spindle Distance to Base (In.) 44-1/2
Spindle Distance to Table (Max.) (In.) 30-1/4
Spindle Taper (In. x TPI) MT-3
Spindle Travel (In.) 6
Style (Type) Variable Speed
T-Slot Centers (In.) 7-7/16
Table Size (L x W) (In.) 22x18-3/4
Table Travel (In.) 20
Weight (Lbs.) 792
Work Table Weight Capacity (Lbs.) 154
View full details

Jet - JDP-20EVS-110, 20" EVS Drill Press 120V

Product Details

Features

- Coolant system is optional #5512104
- CSA/CUS Certified
- Front Mounted LED Spindle RPM Readout
- Front mounted positive control depth stop
- Heavy-duty steel column for increased precision and rigidity
- High torque at all speeds both forward and reverse
- Large Hand Grips designed with the users comfort in mind
- Large precision ground T-Slot production table for easy set ups
- Latest AC Inverter Variable Speed Technology
- Spindle is supported by high quality ball bearings

Shipping Details

Shipping Type: LTL

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
