Jet

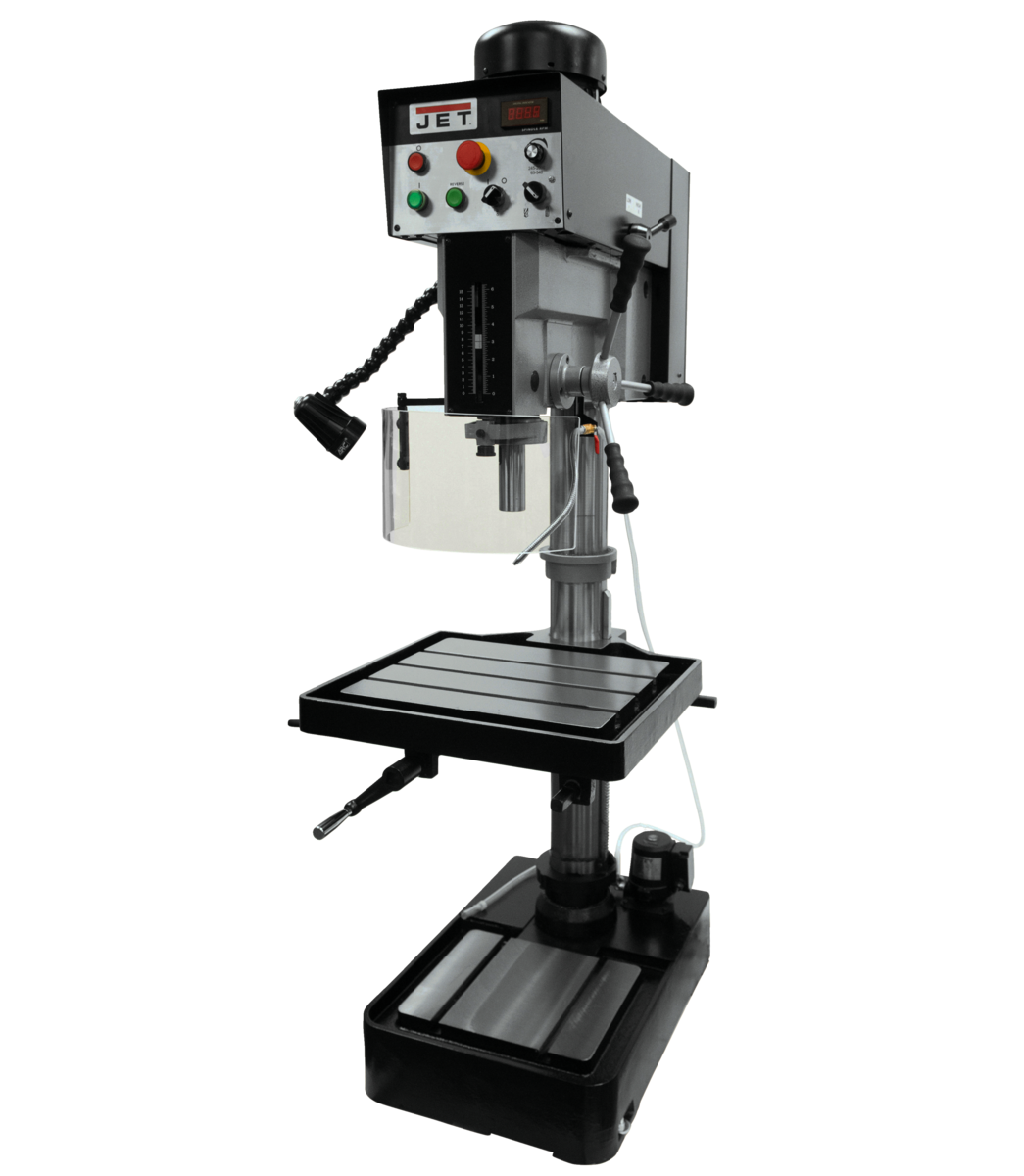

JDP-20EVST-460, 20" EVS Drill Press with Tapping 460V
JDP-20EVST-460, 20" EVS Drill Press with Tapping 460V
Product SKU: 354226
MSRP Price: $8071.43
Free Shipping Available!
Couldn't load pickup availability
JET Electronic Variable Speed Drill Presses offer variable spindle speed rates between 65 and 2000 RPM for a wide variety of applications, supported by high quality ball bearings. Designed to permit continuous speed adjustment - even during operation. Forward and reverse tapping capabilities, an emergency stop, and a heavy-duty casted head are but a few of the features JET includes to enhance overall use and accuracy. CSA/CUS Certified.
| Stock Number | 354226 |
|---|---|
| Base Dimensions (In.) | 27 x 19 |
| Column Diameter (In.) | 4-1/2 |
| Distance Column to Spindle (In.) | 10-7/16 |
| Drilling Capacity Cast Iron (In.) | 1-1/2 |
| Drilling Capacity Mild Steel (In.) | 1-3/8 |
| Drills to Center of Circle (In.) | 20 |
| Inverter Type | M Type 460V 1/3Ph |
| Model Number | JDP-20EVST-460 |
| Motor (HP) | 2HP, 460V, 3 Ph |
| Overall Dimensions (L x W x H) (In.) | 38.18 x27.16 x 79.52 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Spindle Speeds (RPM) | 65-540 /245- 2,000 |
| Spindle Distance to Base (In.) | 44-1/2 |
| Spindle Distance to Table (Max.) (In.) | 30-1/4 |
| Spindle Taper (In. x TPI) | MT-3 |
| Spindle Travel (In.) | 6 |
| Style (Type) | Variable Speed |
| T-Slot Centers (In.) | 7-7/16 |
| Table Size (L x W) (In.) | 22x18-3/4 |
| Table Travel (In.) | 20 |
| Tapping Capacity Cast Iron (In.) | 7/8 |
| Tapping Capacity Mild Steel (In.) | 3/4 |
| Weight (Lbs.) | 792 |
| Work Table Weight Capacity (Lbs.) | 154 |
Jet - JDP-20EVST-460, 20" EVS Drill Press with Tapping 460V
Product Details
Features
-
- Front Mounted LED Spindle RPM Readout
- Front mounted positive control depth stop
- Heavy-duty steel column for increased precision and rigidity
-
-
-
-
-
-
Shipping Details
Shipping Type: LTL
Warranty & Legal
Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
