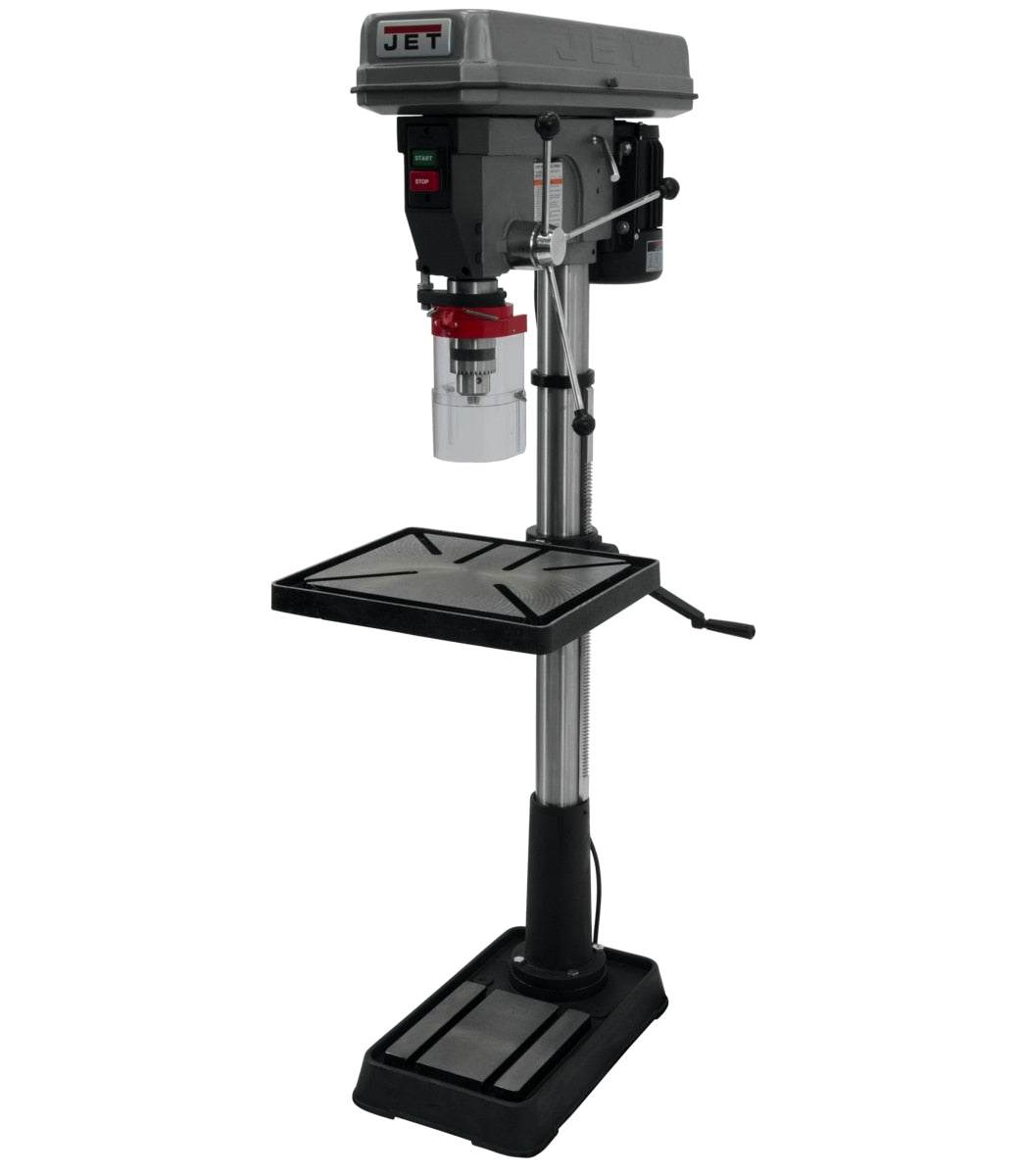

JDP-20MF, 20" Floor Drill Press 115/230V 1Ph

JDP-20MF, 20" Floor Drill Press 115/230V 1Ph

Product SKU: 354170

MSRP Price: $1499

Regular price $1,499.00 USD
Regular price $1,499.00 USD Sale price $1,499.00 USD
Sale Sold out

Free Shipping on All Orders Over $1500!

Accuracy, stability and versatility are the benchmark features of the JET 15" and 20" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty.

Stock Number 354170
Base Dimensions (In.) 13-3/4 x 22-3/4
Base Work Table (In.) 13 x 8-1/2
Column Diameter (In.) 3-3/8
Distance Column to Spindle (In.) 10
Drilling Capacity Cast Iron (In.) 1
Drilling Capacity Mild Steel (In.) 3/4
Drills to Center of Circle (In.) 20
Model Number JDP-20MF
Motor (HP) 1-1/2 HP, 115/230V, 1Ph
Number of Spindle Speeds 12
Overall Dimensions (L x W x H) (In.) 33-1/2 x 18-1/2 x 67
Prop 65 Cancer and Reproductive Harm
Range of Spindle Speeds (RPM) 150 - 4,200
Spindle Distance to Base (In.) 46-3/4
Spindle Distance to Table (Max.) (In.) 29-1/8
Spindle Taper (In. x TPI) MT-3
Spindle Travel (In.) 4-5/8
Style (Type) Variable
T-Slot Centers (In.) 3-1/2
T-Slots Number and Size (In.) 6 and 1/2
Table Size (L x W) (In.) 18-1/2 x 16
Table Travel (In.) 21-1/2
Weight (Lbs.) 282
Work Table Weight Capacity (Lbs.) 80
Enhanced Bullet 4 VISIBILITY: Built-in worklight (bulb not included) provides additional visibility.
View full details

Jet - JDP-20MF, 20" Floor Drill Press 115/230V 1Ph

Product Details


- 1/2" Dia. external depth stop with three nut locking feature for quick adjustment
- Adjustable tension spindle return spring
- Drill chuck and key included
- Hinged metal belt and pulley cover
- On/off switch located on front of drill press head
- Quick adjustment motor mount for rapid changing of spindle speeds
- Telescoping safety spindle guard

Shipping Details

Shipping Type: LTL

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
