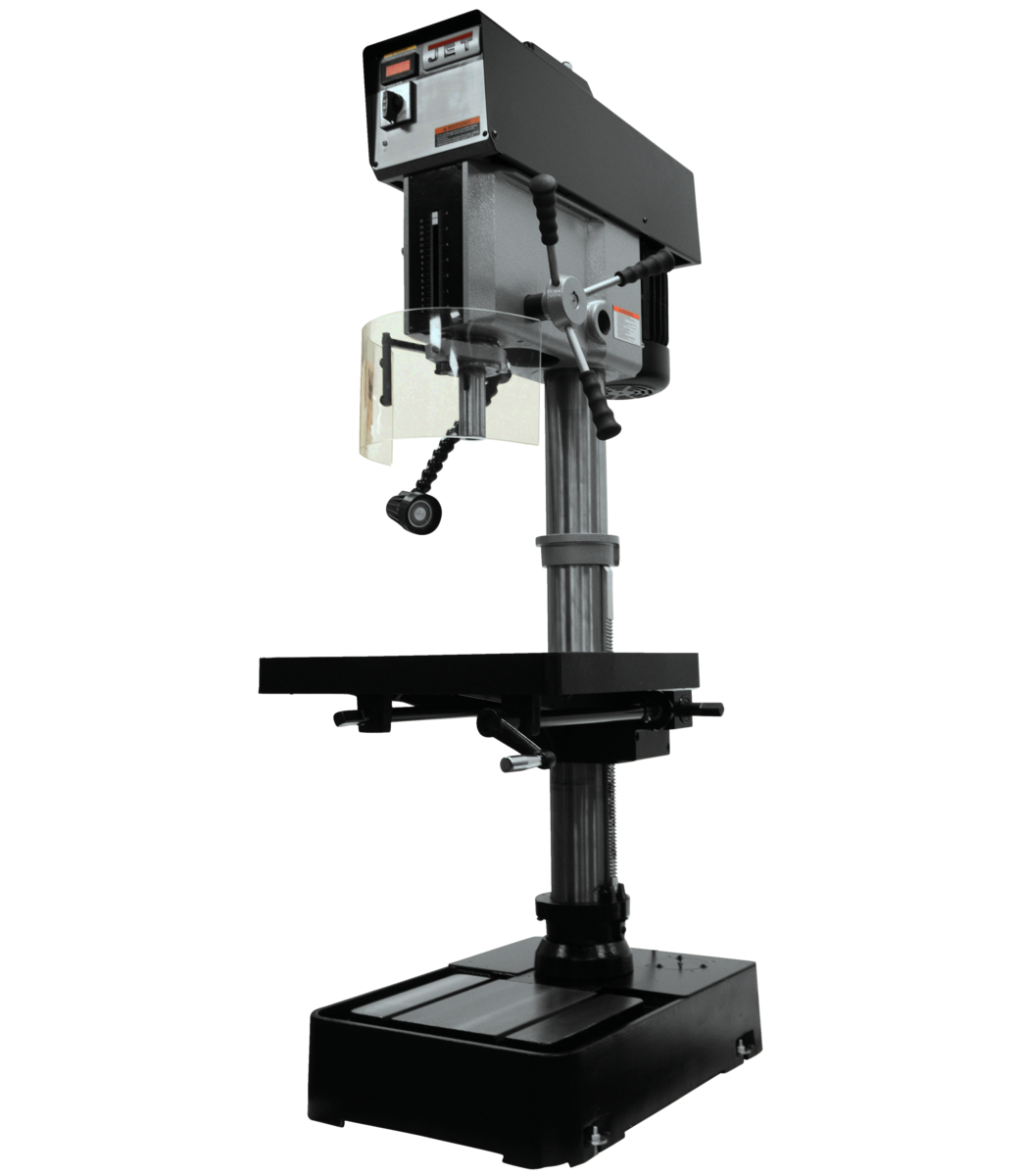

JDP-20VS-1, 20" VS Drill Press 1-PH

JDP-20VS-1, 20" VS Drill Press 1-PH

Product SKU: 354230

Regular price $5,299.00 USD
Regular price $5,299.00 USD Sale price $5,299.00 USD
Sale Sold out

Solid design and construction deliver precision operation and control. JET 20” Variable Speed Drill Presses combine variable speed spindles with a massively constructed head that increases accuracy and rigidity. That’s all on top of a steel column and a heavy-duty cast iron base.

Stock Number 354230
Assembled Machine Dimensions (L x W x H) (In.) 42-1/2 x 27 x 78-3/4
Base Dimensions (In.) 27 x 19
Base Size (In.) 27 x 19
Base Slots Number & Size (In.) 3 & 5/8
Column Diameter (In.) 4-1/2
Distance Column to Spindle (In.) 10-7/16
Drilling Capacity Cast Iron (In.) 1-1/4
Drilling Capacity Mild Steel (In.) 1
Drills to Center of Circle (In.) 20
Gross Weight (Lbs) 780
Model Number JDP-20VS-1
Motor (HP) 2HP, 115/ 230V, 1ph ,4P
Motor Power (HP) 2
Motor Voltage (V.) 115/230
Number of Spindle Speeds Variable
Overall Dimensions (L x W x H) (In.) 38.18 x27.16 x79.52
Prewired Voltage (V.) 115
Prop 65 Cancer and Reproductive Harm
Range of Spindle Speeds (RPM) 300 - 2,000
Spindle Distance to Base (In.) 44-1/2
Spindle Distance to Table (Max.) (In.) 30-1/4
Spindle Speed Range (RPM) 300 - 2000
Spindle Speed (RPM) 300 - 2000
Spindle Taper MT3
Spindle Taper (In. x TPI) MT-3
Spindle Travel (In.) 6
Style (Type) Variable Speed
Swing (In.) 20
T-Slot Centers (In.) 7-7/16
T-Slots Number and Size (In.) 3 and 5/8
Table Size (L x W) (In.) 22x18-3/4
Table Travel (In.) 20
Weight (Lbs.) 780
Work Table Weight Capacity (Lbs.) 154
View full details

Product Specifications

Jet - JDP-20VS-1, 20" VS Drill Press 1-PH

Click Here for Product Specs

SKU: 354230
