Jet

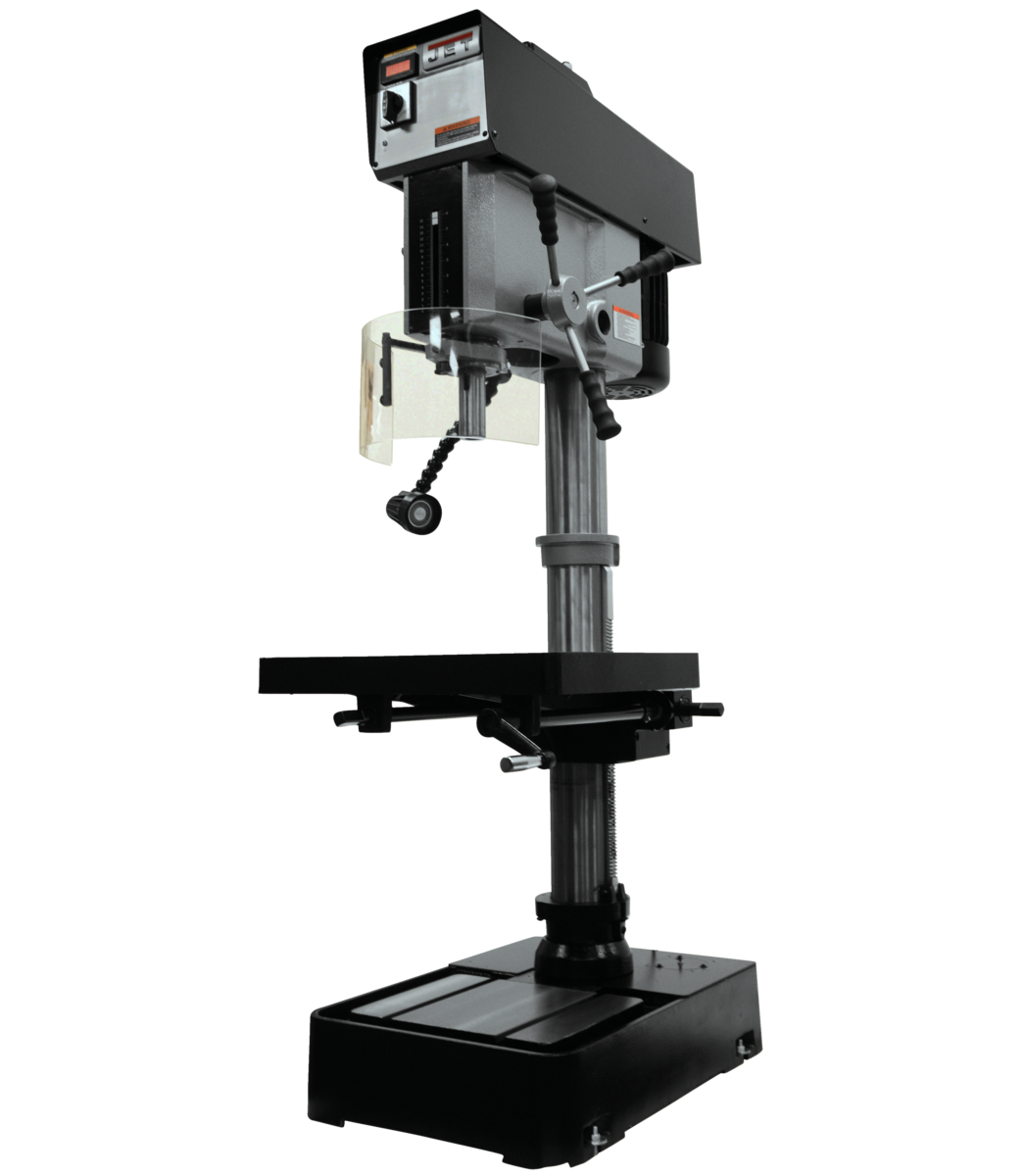

JDP-20VS-3, 20" VS Drill Press 3-PH

JDP-20VS-3, 20" VS Drill Press 3-PH

Product SKU: 354231

MSRP Price: $6390.0

Regular price $5,299.00 USD
Regular price $5,299.00 USD Sale price $5,299.00 USD
Sale Sold out

Free Shipping Available!

Solid design and construction deliver precision operation and control. JET 20” Variable Speed Drill Presses combine variable speed spindles with a massively constructed head that increases accuracy and rigidity. That’s all on top of a steel column and a heavy-duty cast iron base.

Stock Number 354231
Base Dimensions (In.) 27 x 19
Column Diameter (In.) 4-1/2
Drilling Capacity Cast Iron (In.) 1-1/2
Drilling Capacity Mild Steel (In.) 1-3/8
Drills to Center of Circle (In.) 20
Model Number JDP-20VS-3
Motor (HP) 2HP, 230/ 460V,3ph ,4P
Overall Dimensions (L x W x H) (In.) 38.18 x27.16 x79.52
Prop 65 Cancer and Reproductive Harm
Range of Spindle Speeds (RPM) 300 - 2,000
Spindle Distance to Base (In.) 44-1/2
Spindle Distance to Table (Max.) (In.) 30-1/4
Spindle Taper (In. x TPI) MT-3
Spindle Travel (In.) 6
Style (Type) Variable Speed
T-Slot Centers (In.) 7-7/16
Table Size (L x W) (In.) 22x18-3/4
Table Travel (In.) 20
Weight (Lbs.) 780
Work Table Weight Capacity (Lbs.) 154
View full details

Jet - JDP-20VS-3, 20" VS Drill Press 3-PH

Product Details

Features

- CSA/CUS Certified
- Front Mounted LED Spindle RPM Readout
- Front mounted positive control depth stop
- Head is massively constructed for more accuracy and rigidity & heavy duty cast iron design
- Drill Chuck not included
- Large Hand Grips designed with the users comfort in mind
- Large precision ground T-Slot production table for easy set ups
- Massive 3" quill diameter
- Table rotates 360° around the column
- Variable spindle speeds

Shipping Details

Shipping Type: LTL

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
