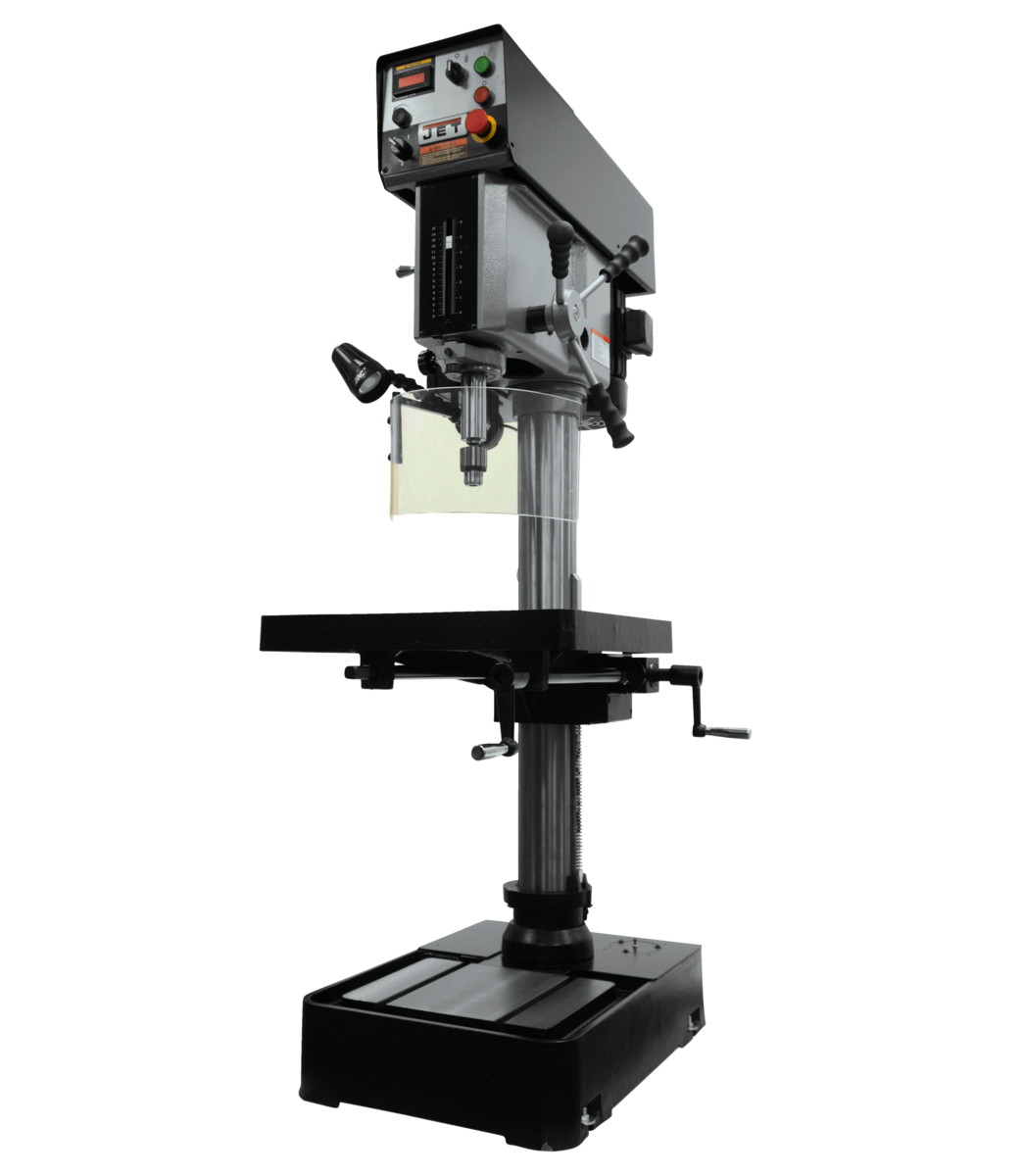

JDP-20VST, 20" HD VS Drill Press with Tapping 460V

JDP-20VST, 20" HD VS Drill Press with Tapping 460V

Product SKU: 354240

MSRP Price: $5839

Regular price $6,069.00 USD
Regular price $6,069.00 USD Sale price $6,069.00 USD
Sale Sold out

Free Shipping Available!

Solid design and construction deliver precision operation and control. JET 20” Variable Speed Drill Presses combine variable speed spindles and tapping with a massively constructed head that increases accuracy and rigidity. That’s all on top of a steel column and a heavy-duty cast iron base. CSA/CUS Certified.

Stock Number 354240
Base Dimensions (In.) 27 x 19
Column Diameter (In.) 4-1/2
Drilling Capacity Cast Iron (In.) 1-1/2
Drilling Capacity Mild Steel (In.) 1-3/8
Drills to Center of Circle (In.) 20
Model Number JDP-20VST
Motor (HP) 2HP, 230V,3ph
Overall Dimensions (L x W x H) (In.) 38.18 x27.16 x 79.52
Prewired Voltage (V.) 230
Prop 65 Cancer and Reproductive Harm
Range of Spindle Speeds (RPM) 150 - 2,000
Spindle Distance to Base (In.) 44-1/2
Spindle Distance to Table (Max.) (In.) 30-1/4
Spindle Taper (In. x TPI) MT-3
Spindle Travel (In.) 6
Style (Type) Variable Speed
Swing (In.) 20
T-Slot Centers (In.) 7-7/16
Table Size (L x W) (In.) 22x18-3/4
Table Travel (In.) 20
Tapping Capacity Cast Iron (In.) 3/4
Tapping Capacity Mild Steel (In.) 5/8
Weight (Lbs.) 780
Work Table Weight Capacity (Lbs.) 154
View full details

Jet - JDP-20VST, 20" HD VS Drill Press with Tapping 460V

Product Details


- CSA Coolant System
- Front Mounted LED Spindle RPM Readout
- Front mounted positive control depth stop
- Large Hand Grips designed with the users comfort in mind
- Large precision ground T-Slot production table for easy set ups
- Massive 3" quill diameter
- Table rotates 360° around the column
- Drill Chuck not included
- Tapping Capacity up to 3/4" in Mild Steel

Shipping Details

Shipping Type: LTL

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
