Jet

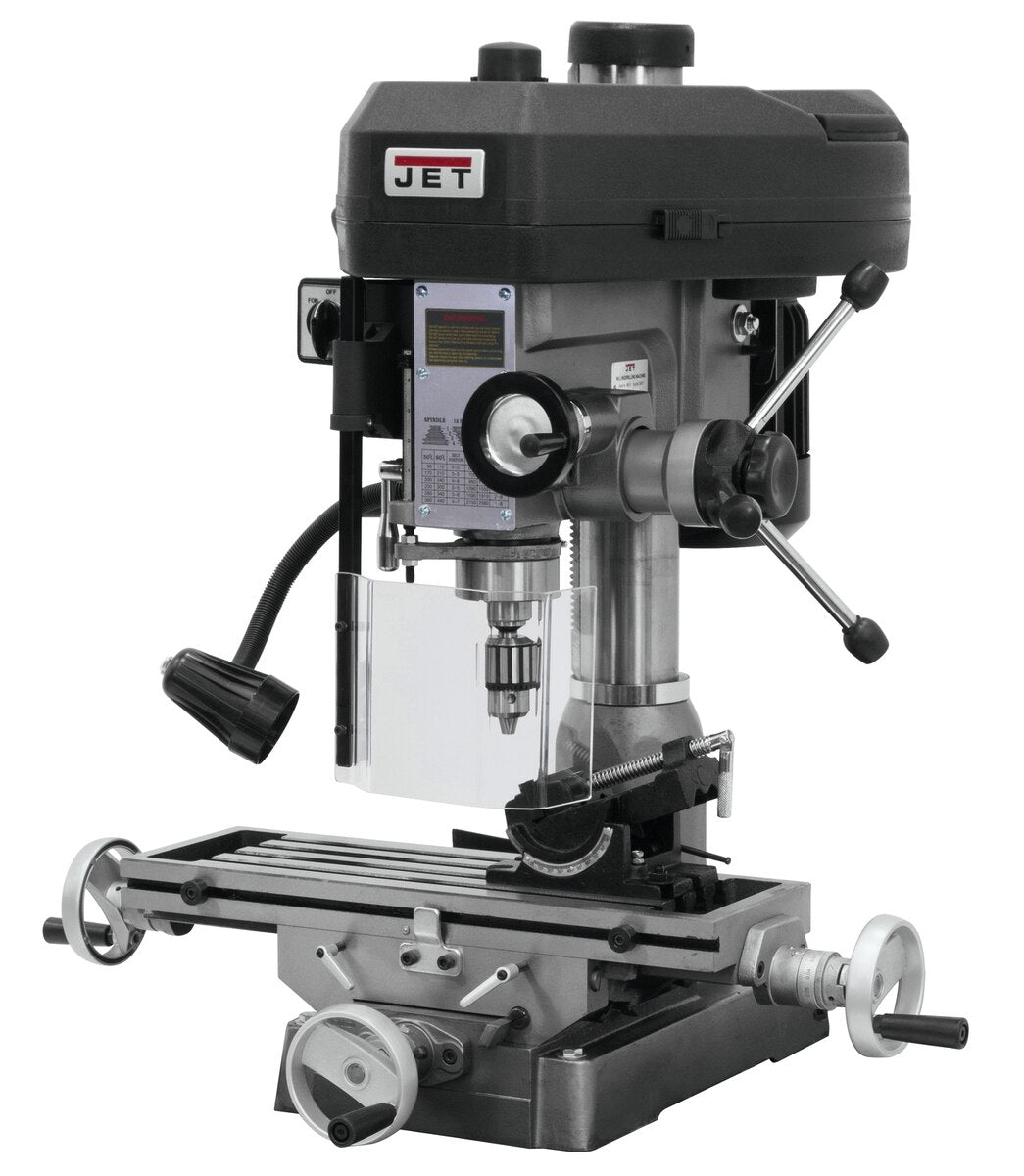

JMD-15 Mill/Drill With R-8 Taper 115/230V 1Ph

JMD-15 Mill/Drill With R-8 Taper 115/230V 1Ph

Product SKU: 350017

MSRP Price: $2599

Regular price $2,599.00 USD
Regular price $2,599.00 USD Sale price $2,599.00 USD
Sale Sold out

Free Shipping Available!

Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.

Stock Number 350017
Base Dimensions (In.) 12-1/2 x 19-3/4
Column Diameter (In.) 3-5/8
Drilling Capacity (In.) 1
Max Distance Spindle to Table (In.) 14-1/2
Model Number JMD-15
Motor (HP) 1 HP, 115/230V, 1Ph
Number of Spindle Speeds 12
Overall Dimensions (L x W x H) (In.) 38 x 37-1/2 x 42
Prop 65 Cancer and Reproductive Harm
Quill Diameter (In.) 2-7/16
Range of Spindle Speeds (RPM) 110 - 2,580
Spindle Taper (In. x TPI) R-8
Spindle Travel (In.) 3-1/2
Swing (In.) 14-1/2
T-Slot Centers (In.) 1-13/16
T-Slots Number and Size (In.) 4 and 9/16
Table Longitudinal Travel (In.) 14
Table Size (L x W) (In.) 7-1/2 x 23
Weight (Lbs.) 440
Work Table Weight Capacity (Lbs.) 350
View full details

Jet - JMD-15 Mill/Drill With R-8 Taper 115/230V 1Ph

Product Details

Features

- 1/2” Drill chuck, chuck arbor
- 360° head swivel
- Adjustable carbide facemill
- Base taper allows for easier clean up
- Easy to read external depth gauge
- Mill Drill Stand, p/n 320020, shown in some images, is optional
- One-piece cast iron column for added support
- UL Listed
-
-

Shipping Details

Shipping Type: LTL

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
