Jet

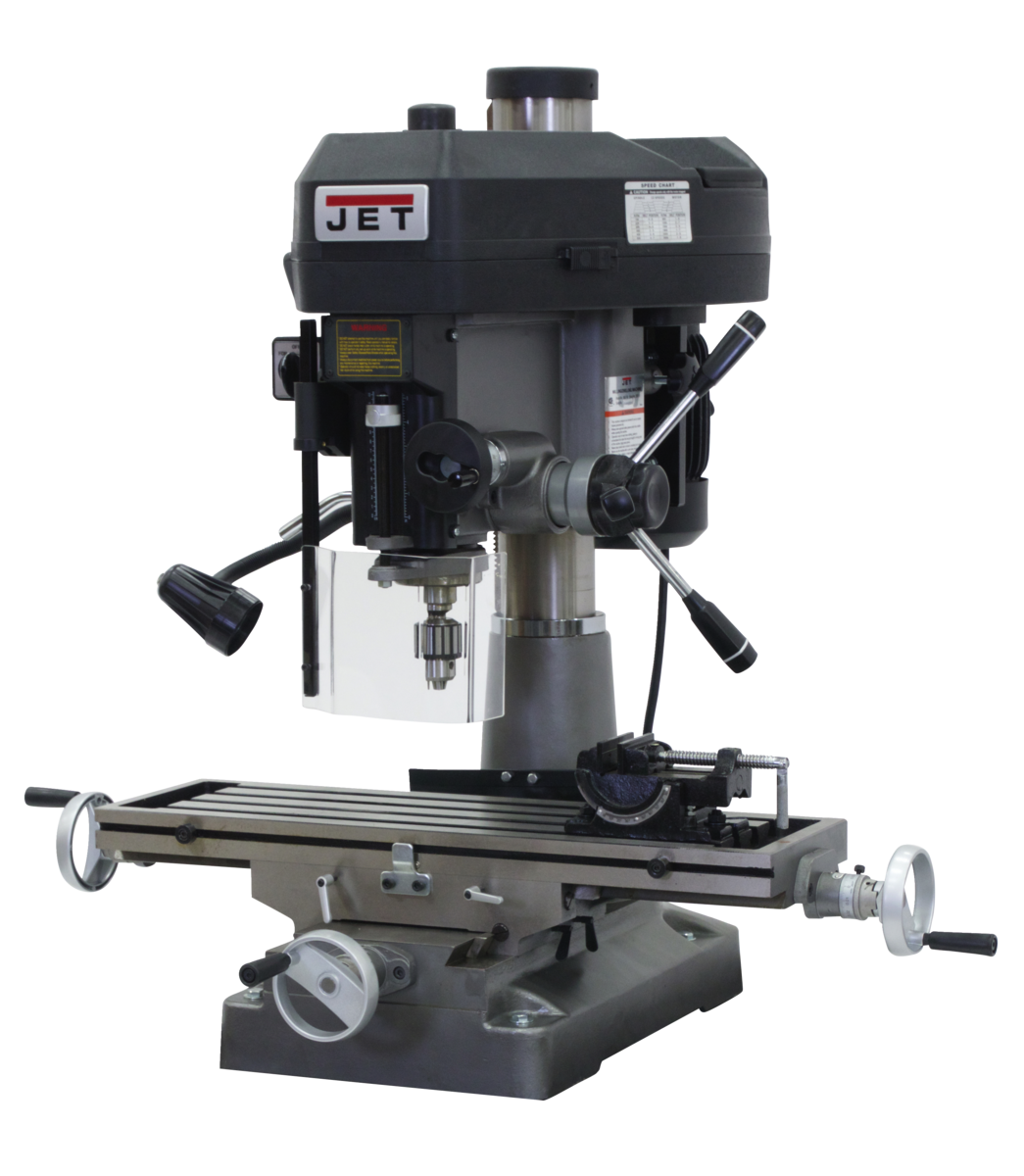

JMD-18 Mill/Drill With Newall NMS300 DRO and X-Axis Table Powerfeed
JMD-18 Mill/Drill With Newall NMS300 DRO and X-Axis Table Powerfeed
Product SKU: 350134
MSRP Price: $6689
Free Shipping Available!
Couldn't load pickup availability
Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.
| Stock Number | 350134 |
|---|---|
| Face Mill Capacity (In.) | 3 |
| Max Distance Spindle to Table (In.) | 17-1/2 |
| Model Number | JMD-18 |
| Motor (HP) | 2 HP, 115/230V, 1Ph |
| Number of Spindle Speeds | 12 |
| Overall Dimensions (L x W x H) (In.) | 47 x 40 x 51 |
| Prop 65 | Cancer and Reproductive Harm |
| Quill Diameter (In.) | 3 |
| Range of Spindle Speeds (RPM) | 150 - 3,000 |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel (In.) | 5 |
| T-Slot Centers (In.) | 1-13/16 |
| T-Slots Number and Size (In.) | 4 and 5/8 |
| Table Longitudinal Travel (In.) | 20-1/2 |
| Table Size (L x W) (In.) | 9-1/2 x 32-1/4 |
| Weight (Lbs.) | 660 |
| Work Table Weight Capacity (Lbs.) | 400 |
Jet - JMD-18 Mill/Drill With Newall NMS300 DRO and X-Axis Table Powerfeed
Product Details
Features
-
- 360° head swivel
- Adjustable carbide facemill
- Base taper allows for easier clean up
-
-
-
-
-
-
Shipping Details
Shipping Type: LTL
Warranty & Legal
Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
