Jet

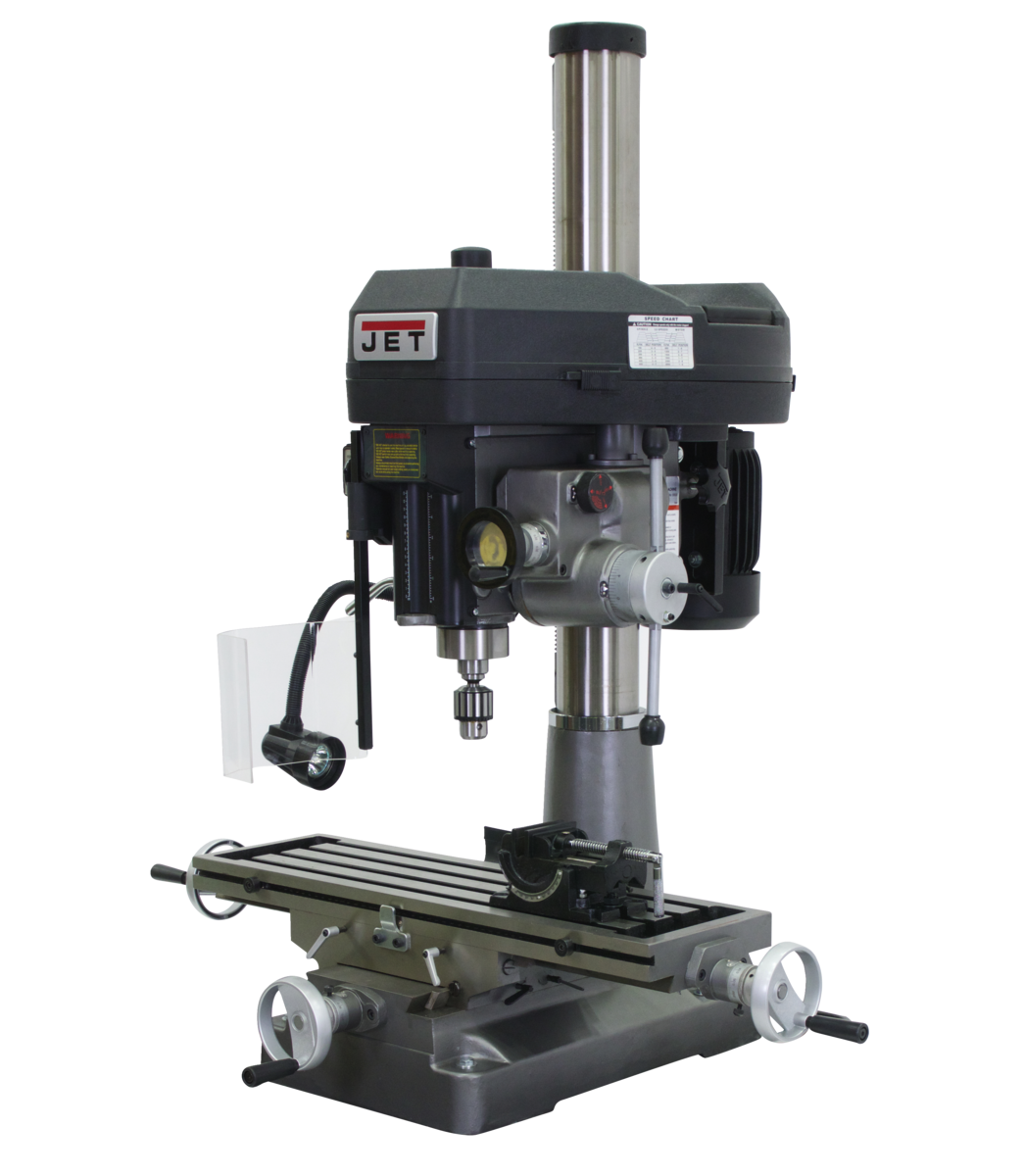

JMD-18PFN Mill/Drill With NEWALL DP700 DRO

JMD-18PFN Mill/Drill With NEWALL DP700 DRO

Product SKU: 350128

MSRP Price: $7099

Regular price $7,099.00 USD
Regular price $7,099.00 USD Sale price $7,099.00 USD
Sale Sold out

Free Shipping Available!

Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.

Stock Number 350128
Base Dimensions (In.) 15-3/4 x 23-3/4
Column Diameter (In.) 4-1/2
Face Mill Capacity (In.) 3
Max Distance Spindle to Table (In.) 28
Model Number JMD-18PFN
Motor (HP) 2 HP,115/230V, 1 Ph, Prewired 115V
Number of Spindle Speeds 12
Overall Dimensions (L x W x H) (In.) 47 x 40 x 51
Powerfeed Downfeed
Prop 65 Cancer and Reproductive Harm
Quill Diameter (In.) 3
Quill Down Feed Rates (IPR) 0.0047, 0.007, 0.001
Range of Spindle Speeds (RPM) 150 - 3,000
Spindle Taper (In. x TPI) R-8
Spindle Travel Auto (In.) 4-1/4
Spindle Travel (In.) 5
Swing (In.) 15-7/8
T-Slot Centers (In.) 1-13/16
T-Slots Number and Size (In.) 4 and 5/8
Table Longitudinal Travel (In.) 20-1/2
Table Size (L x W) (In.) 9-1/2 x 31-3/4
Weight (Lbs.) 700
Work Table Weight Capacity (Lbs.) 400



View full details

Jet - JMD-18PFN Mill/Drill With NEWALL DP700 DRO

Product Details

Features

- 1/2” Drill chuck, chuck arbor
- 360° head swivel
- Adjustable carbide facemill
- Base taper allows for easier clean up
- Easy to read internal depth gauge
- Heavy-duty power downfeed with manual feed (JMD-18PFN)
- Mill Drill Stand, p/n 320020, shown in some images, is optional
- One-piece cast iron column for added support
- Positive quick-stop knob and easy to read internal depth gauge
- UL Listed

Shipping Details

Shipping Type: LTL

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
