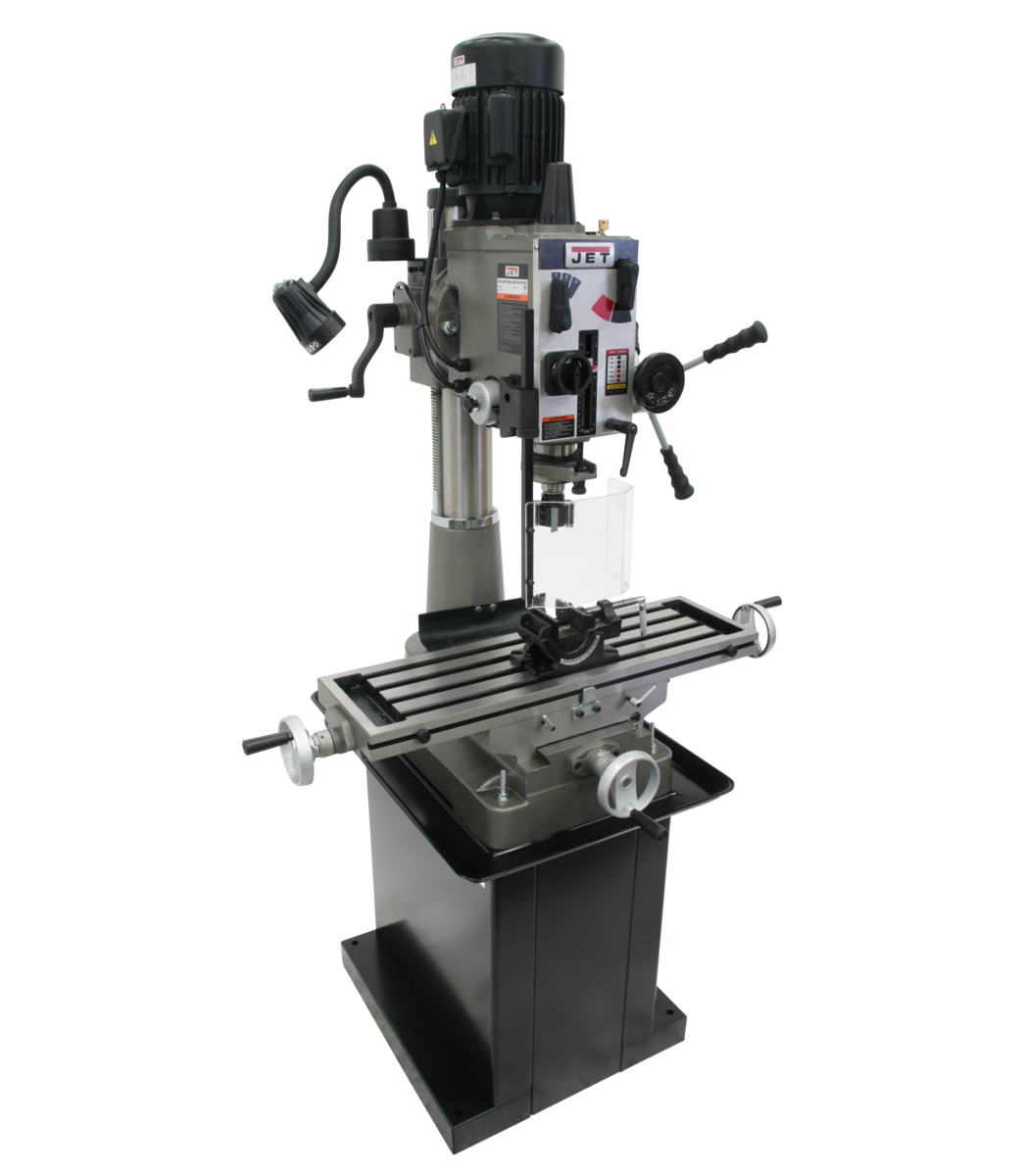

JMD-40GH Geared Head Mill Drill with Newall NMS300 2Axis DRO

JMD-40GH Geared Head Mill Drill with Newall NMS300 2Axis DRO

Product SKU: 351144

MSRP Price: $6899

$7,299.00 USD
$7,299.00 USD $7,299.00 USD
Sale Sold out

Free Shipping Available!

Engineered for precision drilling, the heavy-duty JMD-40GH Round Column Geared Head Mill Drill is loaded with intuitive features for maximum accuracy.

Stock Number 351144
Base Dimensions (In.) 24-1/4 x 15-15/16
Column Diameter (In.) 4-1/2
Face Mill Capacity (In.) 4
Max Distance Spindle to Table (In.) 15-3/4
Model Number JMD-40GH
Motor (HP) 1-1/2HP, 115/230V, 1Ph
Number of Spindle Speeds 6
Overall Dimensions (L x W x H) (In.) 28 x 39-1/4 x 42-1/2
Prop 65 Cancer and Reproductive Harm
Quill Diameter (In.) 3
Range of Spindle Speeds (RPM) 65, 130, 220, 480, 925, 1550rpm
Spindle Taper (In. x TPI) R-8
Spindle Travel (In.) 5
Swing (In.) 20-1/2
Table Longitudinal Travel (In.) 20-1/2
Weight (Lbs.) 694
View full details

Jet - JMD-40GH Geared Head Mill Drill with Newall NMS300 2Axis DRO

Product Details

Features

- Calibrated fine down feed built in
- CSA/CUS Certified
- Easy to read internal depth gauge
- Full power to the cutting tools through 6 speed geared head
- Heavy-duty design allows for a variety of precision drilling applications
- Mill Drill Stand, p/n 350045, shown in some images, is optional
- Milling table allows for movement
- R8 spindle allows use of all mill tooling
- Rapid spindle speed changes through quick-select gear shift levers
-

Shipping Details

Shipping Type: LTL

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
