Jet

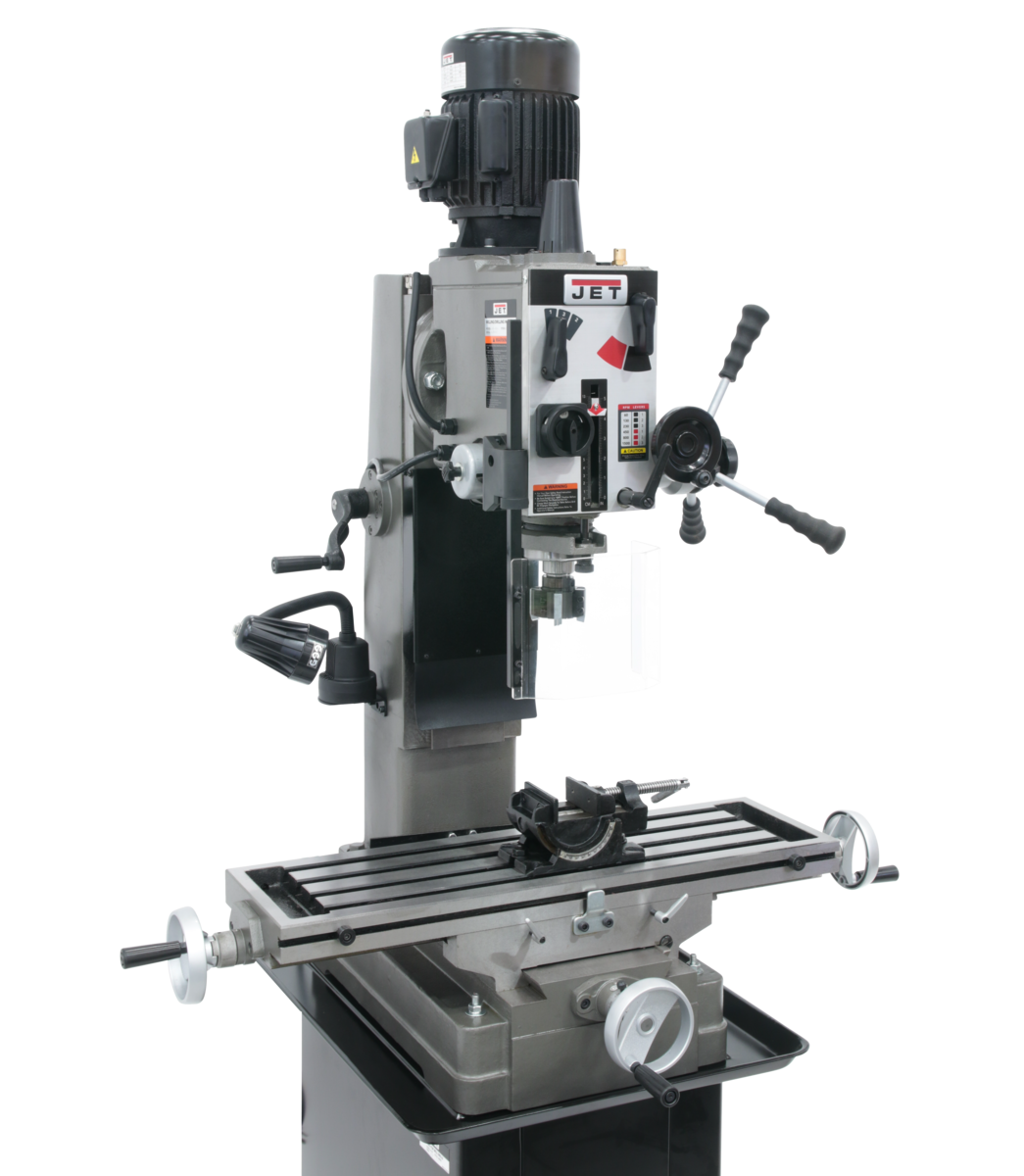

JMD-45GH Geared Head Square Column Mill Drill with Newall DP700 2-Axis DRO & X-Powerfeed

JMD-45GH Geared Head Square Column Mill Drill with Newall DP700 2-Axis DRO & X-Powerfeed

Product SKU: 351151

MSRP Price: $12917.14

Regular price $10,559.00 USD
Regular price $10,559.00 USD Sale price $10,559.00 USD
Sale Sold out

Free Shipping Available!

The heavy-duty JMD-45GH Square Column Geared Head Mill Drill is engineered to deliver the rigidity needed to perform a variety of precision drilling applications in high intensity environments.

Stock Number 351151
Base Dimensions (In.) 26-11/16 x 15-15/16
Face Mill Capacity (In.) 4
Max Distance Spindle to Table (In.) 18-1/8
Model Number JMD-45GH
Motor (HP) 1-1/2HP, 115/230V, 1Ph
Number of Spindle Speeds 6
Overall Dimensions (L x W x H) (In.) 29 x 36 x 50
Powerfeed X-Powerfeed
Prop 65 Cancer and Reproductive Harm
Quill Diameter (In.) 3
Range of Spindle Speeds (RPM) 65-1550
Spindle Taper (In. x TPI) R8
Spindle Travel (In.) 5
Swing (In.) 19-11/16
Table Longitudinal Travel (In.) 20-1/2
Table Size (L x W) (In.) 9-1/2 x 32-1/4
Weight (Lbs.) 794
View full details

Jet - JMD-45GH Geared Head Square Column Mill Drill with Newall DP700 2-Axis DRO & X-Powerfeed

Product Details

Features

- Calibrated fine down feed built in
- CSA/CUS Certified
- Easy to read internal depth gauge
- Full power to the cutting tools through 6 speed geared head
- Heavy-duty design allows for a variety of precision drilling applications
- Mill Drill Stand, p/n 350045, shown in some images, is optional
- Milling table allows for movement
- R8 spindle allows use of all mill tooling
- Rapid spindle speed changes through quick-select gear shift levers
- Square column with dovetail ways

Shipping Details

Shipping Type: LTL

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
