Jet

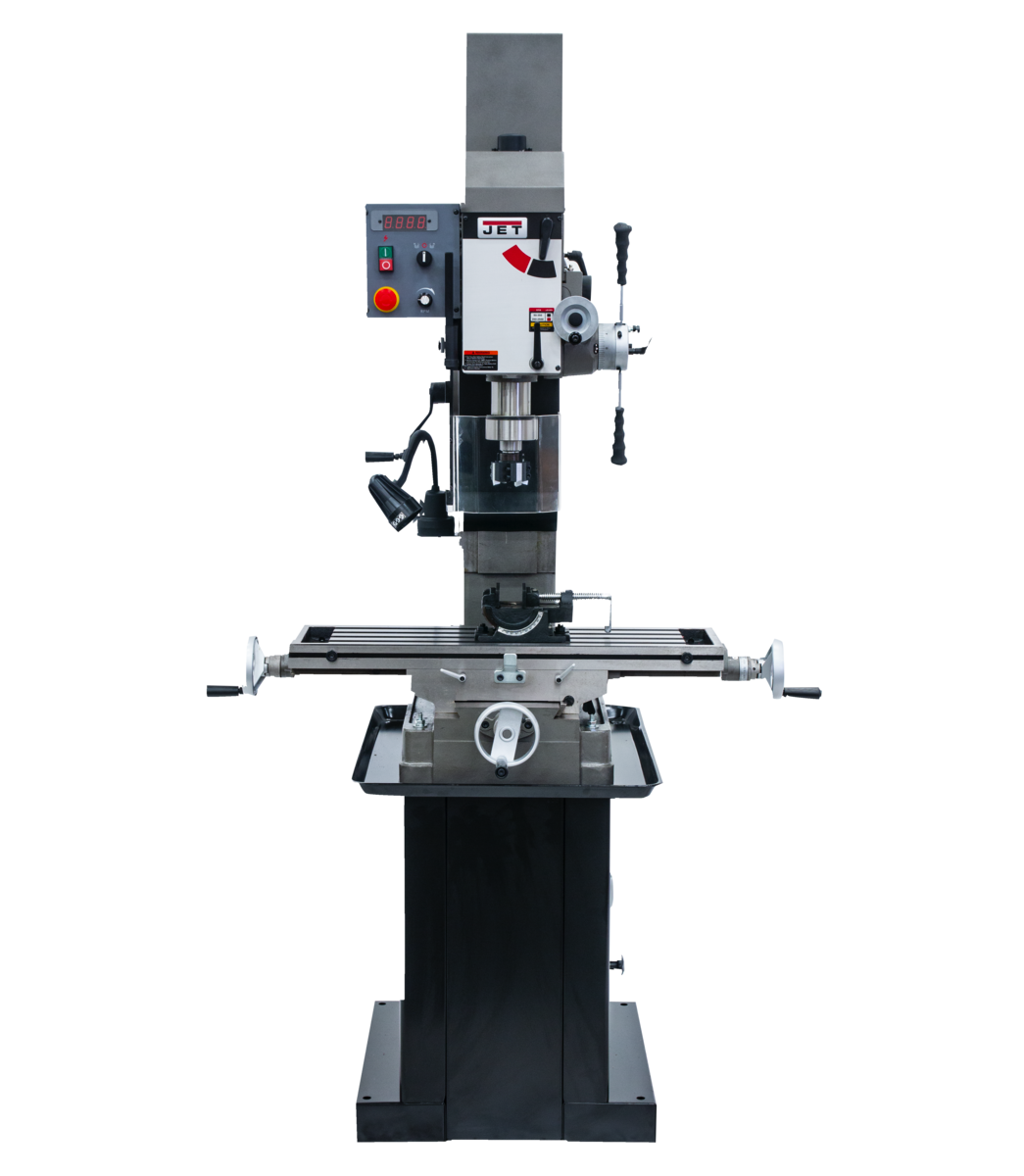

JMD-45VSPF Variable Speed Square Column Geared Head Mill Drill with Newall NMS300 2 Axis DRO

JMD-45VSPF Variable Speed Square Column Geared Head Mill Drill with Newall NMS300 2 Axis DRO

Product SKU: 351162

MSRP Price: $12172.86

Regular price $9,959.00 USD
Regular price $9,959.00 USD Sale price $9,959.00 USD
Sale Sold out

Free Shipping Available!

Engineered to maximize production, the heavy-duty JMD-45VSPF variable speed Square Column Geared Head Mill Drill with power downfeed capability delivers the rigidity needed to perform a variety of precision drilling applications in high intensity environments. CSA/CUS Certified.

Stock Number 351162
Base Dimensions (In.) 26-11/16 x 15-15/16
Face Mill Capacity (In.) 4
Max Distance Spindle to Table (In.) 18-1/8
Model Number JMD-45VSPF
Motor (HP) 1-1/2HP, 115/230V, 1Ph
Overall Dimensions (L x W x H) (In.) 29 x 36 x 50
Prop 65 Cancer and Reproductive Harm
Quill Diameter (In.) 3
Range of Spindle Speeds (RPM) 50-2500
Spindle Taper (In. x TPI) R8
Spindle Travel Auto (In.) 4-1/4
Spindle Travel (In.) 5
Swing (In.) 19-11/16
Table Longitudinal Travel (In.) 20-1/2
Table Size (L x W) (In.) 9-1/2 x 32-1/4
Weight (Lbs.) 827
View full details

Jet - JMD-45VSPF Variable Speed Square Column Geared Head Mill Drill with Newall NMS300 2 Axis DRO

Product Details

Features

- Easy to read internal depth gauge
- Full power to the cutting tools through Variable Speed geared head
- Heavy-duty design allows for a variety of precision drilling applications
- Mill Drill Stand, p/n 350045, shown in some images, is optional
- Milling table allows for movement
- R8 spindle allows use of all mill tooling
- Rapid spindle speed changes through quick-select gear shift levers
- Square column with dovetail ways
-
-

Shipping Details

Shipping Type: LTL

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
