Jet

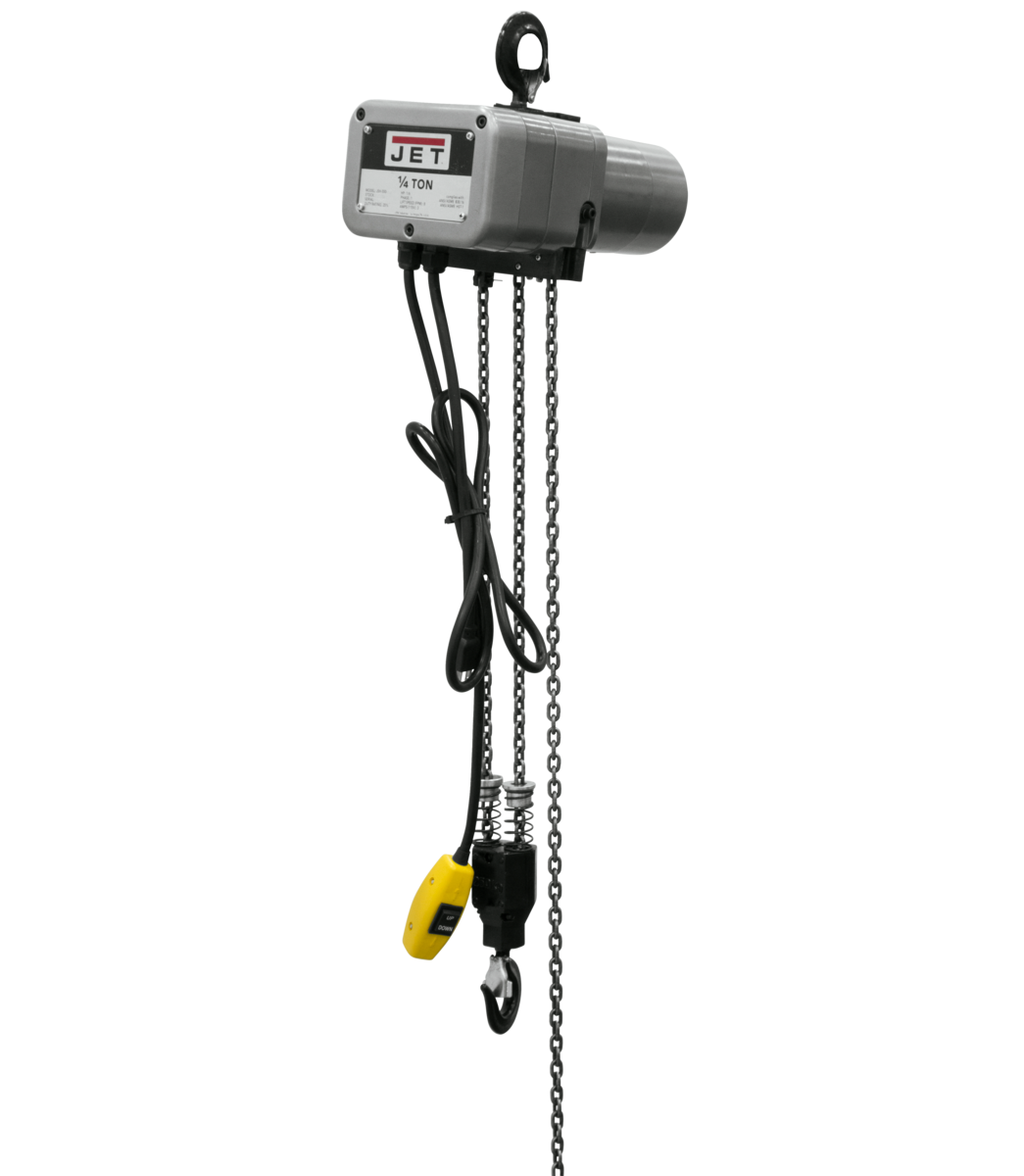

JSH-550-20, 1/4 Ton 20' Lift Electric Hoist, 115V

JSH-550-20, 1/4 Ton 20' Lift Electric Hoist, 115V

Product SKU: 110520

MSRP Price: $2168

Regular price $2,224.99 USD
Regular price $2,224.99 USD Sale price $2,224.99 USD
Sale Sold out

Free Shipping Available!

JET® JSH Series Electric Hoists combines safety, durability and portability to operate in light duty commercial and industrial applications. The die cast Aluminum housing keeps the hoist lightweight and easily portable. All models incorporate a slip clutch overload protection mechanism that prevents the hoist from lifting damaging loads above its rated capacity. They have a built-in thermal overload protection system that keeps the hoist from overheating. The industry proven magnetic disk brake increases safety by ensuring rapid stops and securing the load. The maintenance-free gear train incorporates a sealed oil bath, eliminating maintenance. The JET® JSH Series Electric Hoist is available in 1/8 ton and 1/4 ton capacities with standard lifts of 10, 15, and 20 feet (custom lifts available).

More Information
Stock Number 110520
Capacity (Lbs.) 500
Duty Cycle (%) 25
Duty Cycle Rating H3
Lift (Ft.) 20
Lifting Speed (FPM) 8
Load Capacity (Tons) 1/4
Max. Number of Starts (Per Hr.) 150
Max. On Time (Min. / Hr.) 15
Model Number JSH-550-20
Motor (HP) 1/6 HP, 115V, 1 Ph
Prop 65 Cancer and Reproductive Harm
Weight (Lbs.) 40.1
Headroom (In.) 17-1/10
Overall Width (In.) 8.61
Motor Current (Amps) 3
Enhanced Bullet 4 OVERLOAD PROTECTION: Slip clutch design prevents the hoist from lifting damaging loads above its rated capacity.
View full details

Jet - JSH-550-20, 1/4 Ton 20' Lift Electric Hoist, 115V

Product Details

Features

- Aluminum Housing- Aluminum alloy housing decreases the weight for convenient transportation
- Grade 80 Load Chain- Grade 80 black oxide coated load chain for durability
- Heat Treated Gears- Heat treated alloy steel geared drive train for long lasting durability
- JET VOLT and SSC Series Electric Hoists and JET ET Series Electric Trolleys are not rated or designed for outdoor use or wet environments
- Limit Switches- Upper and lower limiting switches increase safety by preventing the load chain from over traveling
-
-
-
-
-

Shipping Details

Shipping Type: Parcel

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
