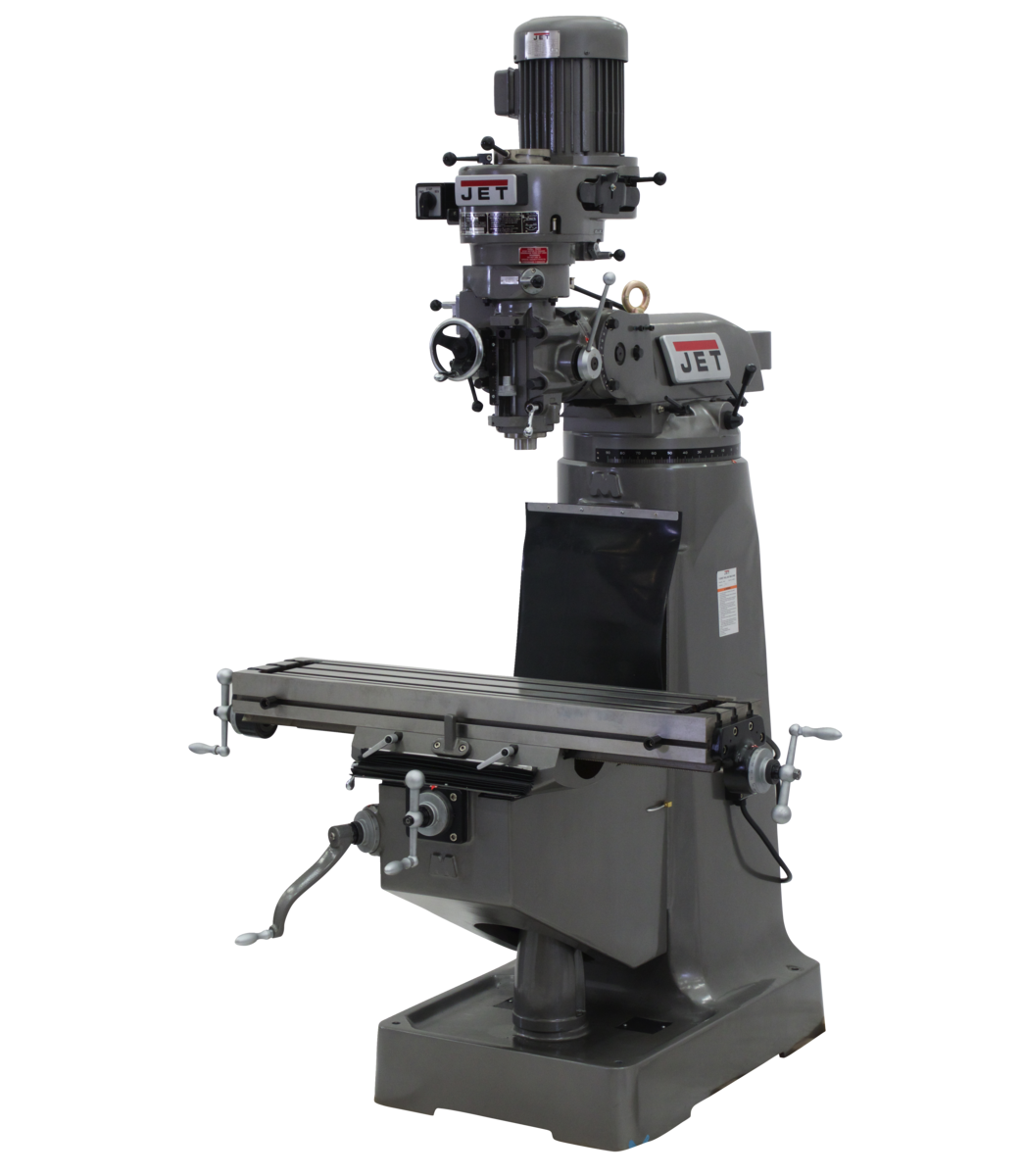

JTM-1 Mill With 3-Axis Newall NMS300 DRO (Quill) With X & Y-Axis Powerfeeds
JTM-1 Mill With 3-Axis Newall NMS300 DRO (Quill) With X & Y-Axis Powerfeeds
Product SKU: 692192
MSRP Price: $15859
Free Shipping Available!
Couldn't load pickup availability
The JTM-1 Mill With 3-Axis Newall DP500 DRO (Quill) With X & Y-Axis Powerfeeds has a three-stage power down feed with automatic stop, high precision Class 7 spindle bearings and the rugged stability of Certified Meehanite® castings which ensures you get everything you need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing, and JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty.
| Stock Number | 692192 |
|---|---|
| Collet Capacity | 1/8 - 7/8 |
| Distance Spindle to Column (Max.) (In.) | 19 |
| Max Distance Spindle to Table (In.) | 17-1/2 |
| Model Number | JTM-1 |
| Motor (HP) | 2 HP, 230V, 3Ph |
| Number of Spindle Speeds | 16 |
| Overall Dimensions (L x W x H) (In.) | 57 x 64 x 82 |
| Powerfeed | X and Y-Axis |
| Prop 65 | Cancer and Reproductive Harm |
| Quill Diameter (In.) | 3-3/8 |
| Quill Down Feed Rates (IPR) | .0015 - .003 - .006 |
| Range of Spindle Speeds (RPM) | 80 - 5,440 |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel (In.) | 5 |
| Style (Type) | Step Pulley R8 |
| T-Slot Centers (In.) | 2-1/2 |
| Table Cross Travel (In.) | 12-1/2 |
| Table Longitudinal Travel (In.) | 23-7/8 |
| Table Longitudinal Travel With Powerfeed (In.) | 20-2/7 |
| Table Size (L x W) (In.) | 9 x 42 |
| Travel of Knee (In.) | 14-1/2 |
| Travel of Ram (In.) | 13-3/8 |
| Weight (Lbs.) | 2200 |
| Work Table Weight Capacity (Lbs.) | 550 |
Jet - JTM-1 Mill With 3-Axis Newall NMS300 DRO (Quill) With X & Y-Axis Powerfeeds
Product Details
Features
-
- Internal coolant tank built into base for use with coolant system (Coolant pump not included)
- Large Diameter quill is chromed
- One shot lubrication system
-
-
-
-
-
-
Shipping Details
Shipping Type: LTL
Warranty & Legal
Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
