Jet

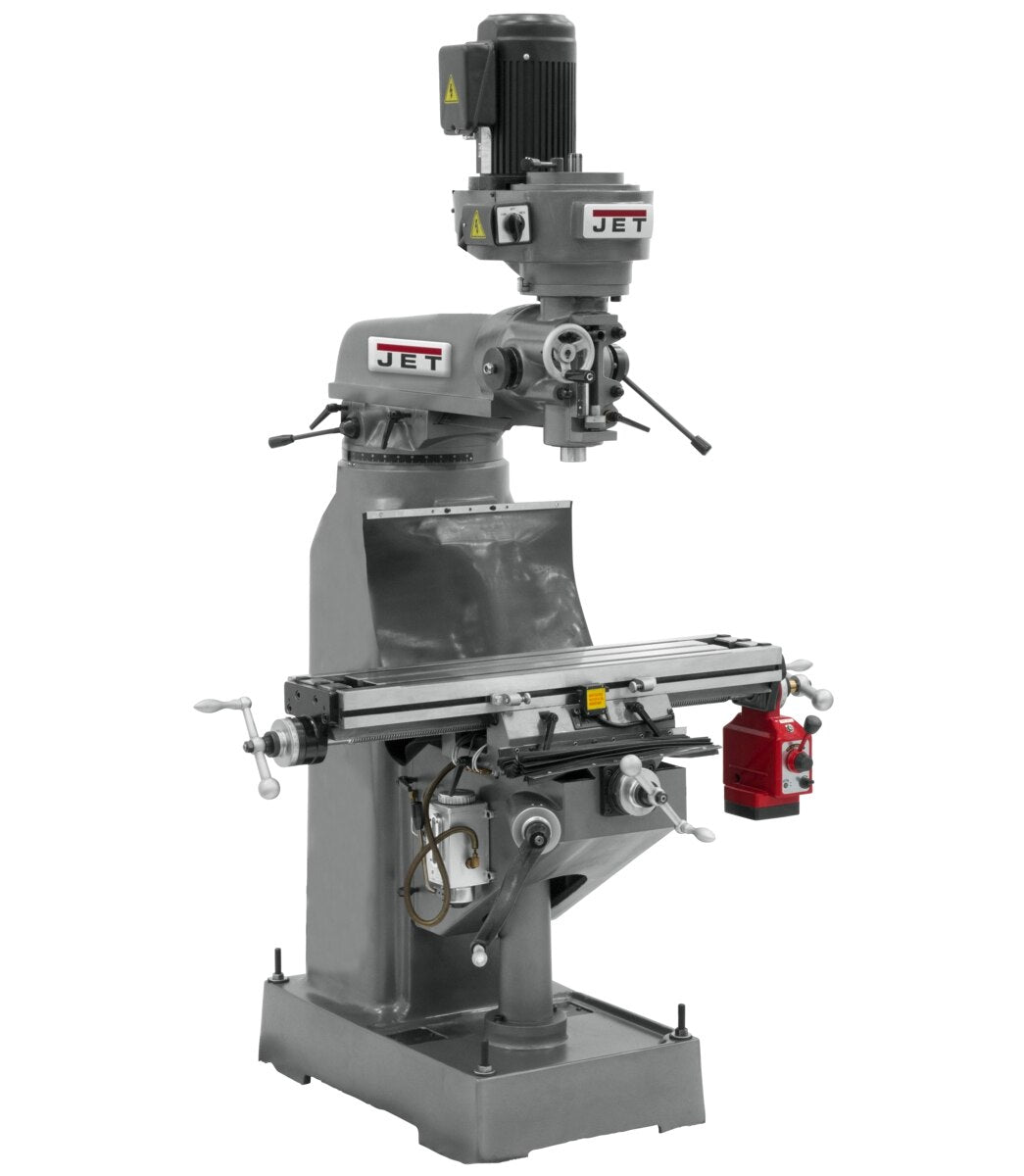

JTM-1 Step Pulley Milling Machine 230V 3Ph

JTM-1 Step Pulley Milling Machine 230V 3Ph

Product SKU: 690082

MSRP Price: $13607.14

Regular price $10,999.00 USD
Regular price $10,999.00 USD Sale price $10,999.00 USD
Sale Sold out

Free Shipping Available!

The Jet JTM-1, 9"x42" Table, 16 Spindle Speeds, 2HP, 3Ph, 230V has a three-stage power down feed with automatic stop, high precision Class 7 spindle bearings and the rugged stability of Certified Meehanite® Castings to ensure that every job is up to your standards. The internally cooled spindle head prevents seizing and precision engineering ensures superior results with all the features you've come to expect, all backed by the industry leading JET Two Year Warranty.

Stock Number 690082
Collet Capacity 1/8 - 7/8
Distance Spindle to Column (Max.) (In.) 19
Max Distance Spindle to Table (In.) 17-1/2
Model Number JTM-1
Motor (HP) 2 HP, 230V, 3Ph
Number of Spindle Speeds 16
Overall Dimensions (L x W x H) (In.) 57 x 64 x 82
Prop 65 Cancer and Reproductive Harm
Quill Diameter (In.) 3-3/8
Quill Down Feed Rates (IPR) .0015 - .003 - .006
Range of Spindle Speeds (RPM) 80 - 5,440
Spindle Taper (In. x TPI) R-8
Spindle Travel (In.) 5
Style (Type) Step Pulley R8
T-Slot Centers (In.) 2-1/2
Table Cross Travel (In.) 12-1/2
Table Longitudinal Travel (In.) 23-7/8
Table Longitudinal Travel With Powerfeed (In.) 20-2/7
Table Size (L x W) (In.) 9 x 42
Travel of Knee (In.) 14-1/2
Travel of Ram (In.) 13-3/8
Weight (Lbs.) 2200
Work Table Weight Capacity (Lbs.) 550
View full details

Jet - JTM-1 Step Pulley Milling Machine 230V 3Ph

Product Details

Features

- Heavy duty splined motor drive
- Internal coolant tank built into base for use with coolant system (Coolant pump not included)
- Large Diameter quill is chromed
- One shot lubrication system
- Precision bored and honed milling head
- Precision hardened and ground ways
- Satin chrome finished dials
- Tolerance test sheet included
-
-

Shipping Details

Shipping Type: LTL - Doc Del Only

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
