Product SKU: 690676

MSRP Price: $50729

Regular price $50,729.00 USD
Regular price $50,729.00 USD Sale price $50,729.00 USD
Sale Sold out

Free Shipping Available!

JET offers complete, factory-installed CNC packages with your choice of 2- or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite® casted JET Vertical Mills with CNC packages deliver accurate results every time. Menu-prompted conversational programming to easily create part programs, edit, reverse, change, delete, and copy or move steps. Simply follow the menu prompts and let MILLPWR G2 do the rest. Handwheels included for manual operation. All the features you've come to expect backed by the industry-leading JET Two Year Warranty.

Stock Number 690676
Collet Capacity 1/8 - 7/8
Column Width (In.) 20
Distance Spindle to Column (Max.) (In.) 26-3/4
Inverter Type Delta, B
Max Distance Spindle to Table (In.) 20-3/4
Model Number JTM-1050EVS2/230
Motor (HP) 3 HP, 230V, 3Ph
Number of Axis 3
Overall Dimensions (L x W x H) (In.) 66 x 63 x 87
Prop 65 Cancer and Reproductive Harm
Quill Diameter (In.) 3-3/8
Quill Down Feed Rates (IPR) .0015 - .003 - .006
Range of Spindle Speeds (RPM) 60 - 4,500
Saddle Width (In.) 11-1/2
Spindle Taper (In. x TPI) R-8
Spindle Travel (In.) 5
Style (Type) CNC
T-Slot Centers (In.) 2-1/2
Table Cross Travel (In.) 14-3/4
Table Longitudinal Travel (In.) 35-1/3
Table Longitudinal Travel With Powerfeed (In.) 29-7/8
Table Size (L x W) (In.) 10 x 50
Travel of Knee (In.) 16-1/8
Travel of Ram (In.) 15-7/8
Weight (Lbs.) 2860
Work Table Weight Capacity (Lbs.) 840
View full details

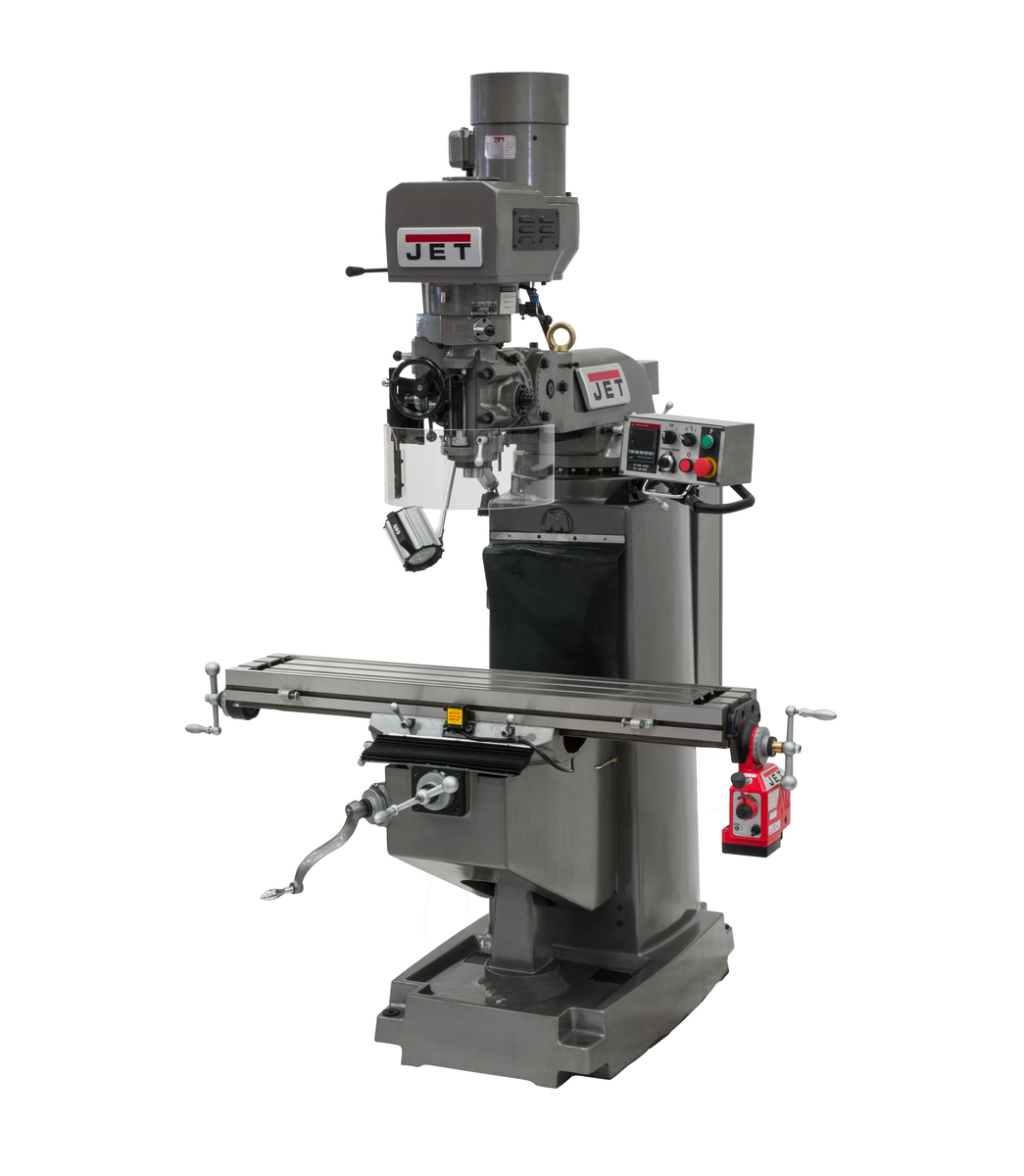

Jet - JTM-1050EVS2/230 3X MILL PWR CNC

Product Details


- 12.1" High resolution display (1024 x 768) with 3D graphics
- Available offline software
- Built-in calculator: Performs standard, trig, and geometry calculations and transfers them directly into part programs
- Closed loop feedback using Acu-Rite precision linear encoders with 0.00005" resolution
- CNC electronic variable speed vertical milling machine package for JTM-1050EVS
- Estimated run time feature
- Jog Control allows table movement, quickly from one location to another - using one axis at a time or any two axes simultaneously
- Powerful DC Servo motor assemblies that include mounting castings and hardware
- Precision ground ball screws eliminate backlash for precise lateral movements
- USB + Ethernet compatible

Shipping Details

Shipping Type: LTL

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
