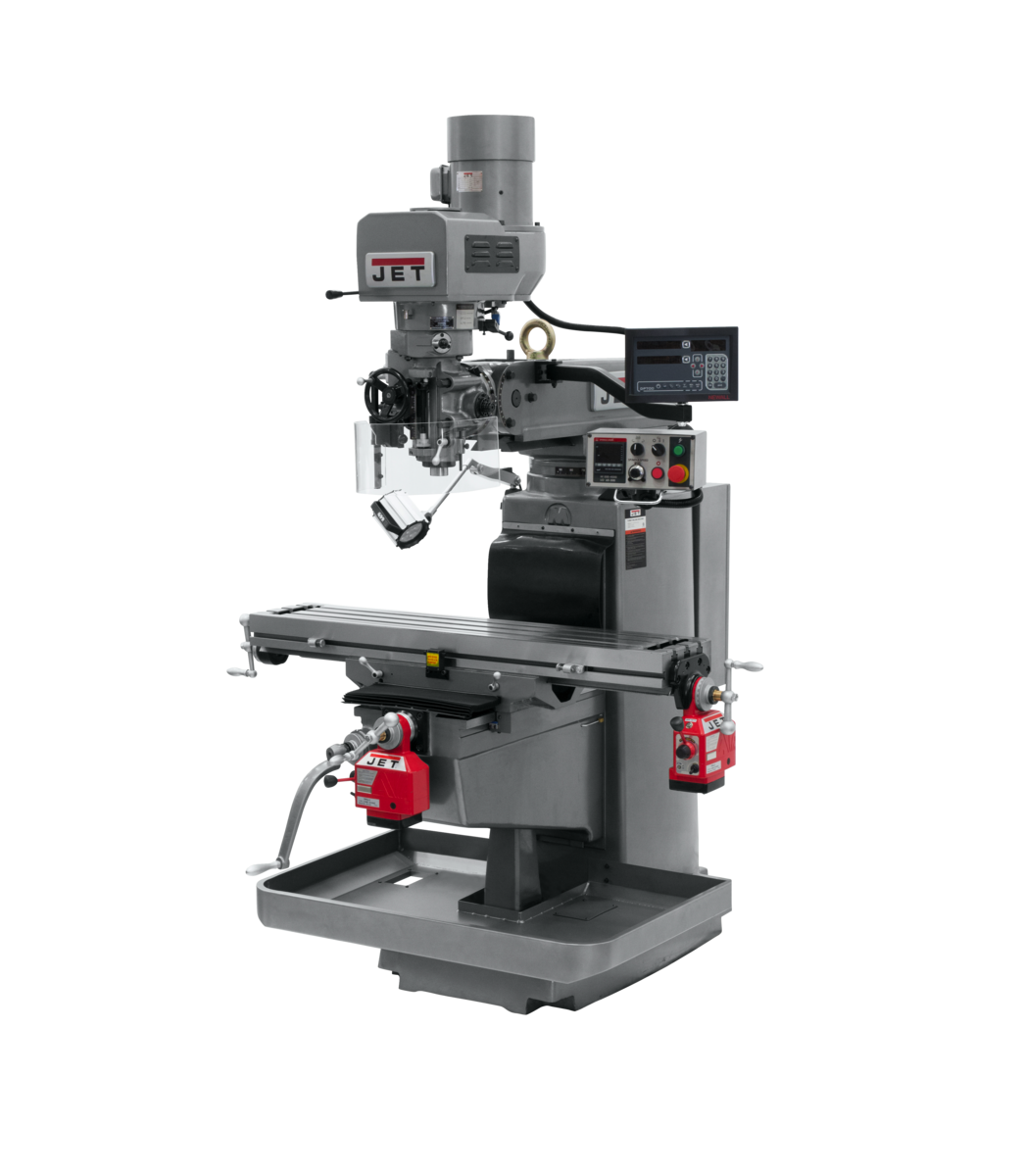

JTM-1050EVS2/230 Mill With Newall DP700 DRO With X and Y-Axis Powerfeeds

JTM-1050EVS2/230 Mill With Newall DP700 DRO With X and Y-Axis Powerfeeds

Product SKU: 690636

MSRP Price: $23959

$23,959.00 USD
$23,959.00 USD $23,959.00 USD
Sale Sold out

Free Shipping Available!

Constructed using the Certified Meehanite® casting process, the JTM-1050EVS2/230, 10" x 50" Electronic Variable Speed Milling Machine provides consistent and reliable operation. The newly designed column and base incorporates a rigid, robust design that is easily leveled without lifting the machine. JET Mills have features you've come to expect and are backed by the industry-leading JET Two Year Warranty with products CSA/CUS Certified.

Stock Number 690636
Collet Capacity 1/8 - 7/8
Column Width (In.) 20
Distance Spindle to Column (Max.) (In.) 26-3/4
Inverter Type Delta, B
Max Distance Spindle to Table (In.) 20-3/4
Model Number JTM-1050EVS2/230
Motor (HP) 3 HP, 230V, 3Ph
Number of Axis 2
Overall Dimensions (L x W x H) (In.) 66 x 63 x 87
Powerfeed X and Y-Axis
Prop 65 Cancer and Reproductive Harm
Quill Diameter (In.) 3-3/8
Quill Down Feed Rates (IPR) .0015 - .003 - .006
Range of Spindle Speeds (RPM) 60 - 4,500
Saddle Width (In.) 11-1/2
Spindle Taper (In. x TPI) R-8
Spindle Travel (In.) 5
Style (Type) EVS
T-Slot Centers (In.) 2-1/2
Table Cross Travel (In.) 14-3/4
Table Longitudinal Travel (In.) 35-1/3
Table Longitudinal Travel With Powerfeed (In.) 29-7/8
Table Size (L x W) (In.) 10 x 50
Travel of Knee (In.) 16-1/8
Travel of Ram (In.) 15-7/8
Weight (Lbs.) 2860
Work Table Weight Capacity (Lbs.) 840
View full details

Jet - JTM-1050EVS2/230 Mill With Newall DP700 DRO With X and Y-Axis Powerfeeds

Product Details

Features

- Automatic oiler releases 3 to 6 cc/cy of lubrication at adjustable time intervals
- Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
- Dual locks on all moveable surfaces
- Spindle head is internally cooled extending bearing, belt and motor life
- Swing away control box houses an e-stop and puts all controls at the operators fingertips
- Swing away safety shield
- Table and ways are hardened up to 54 HRC and precision ground for greater accuracy
- The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories
- The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
- The X and Y-Axis are coated with Turcite-B for reduced vibration and smooth movements

Shipping Details

Shipping Type: LTL - Doc Del Only

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
