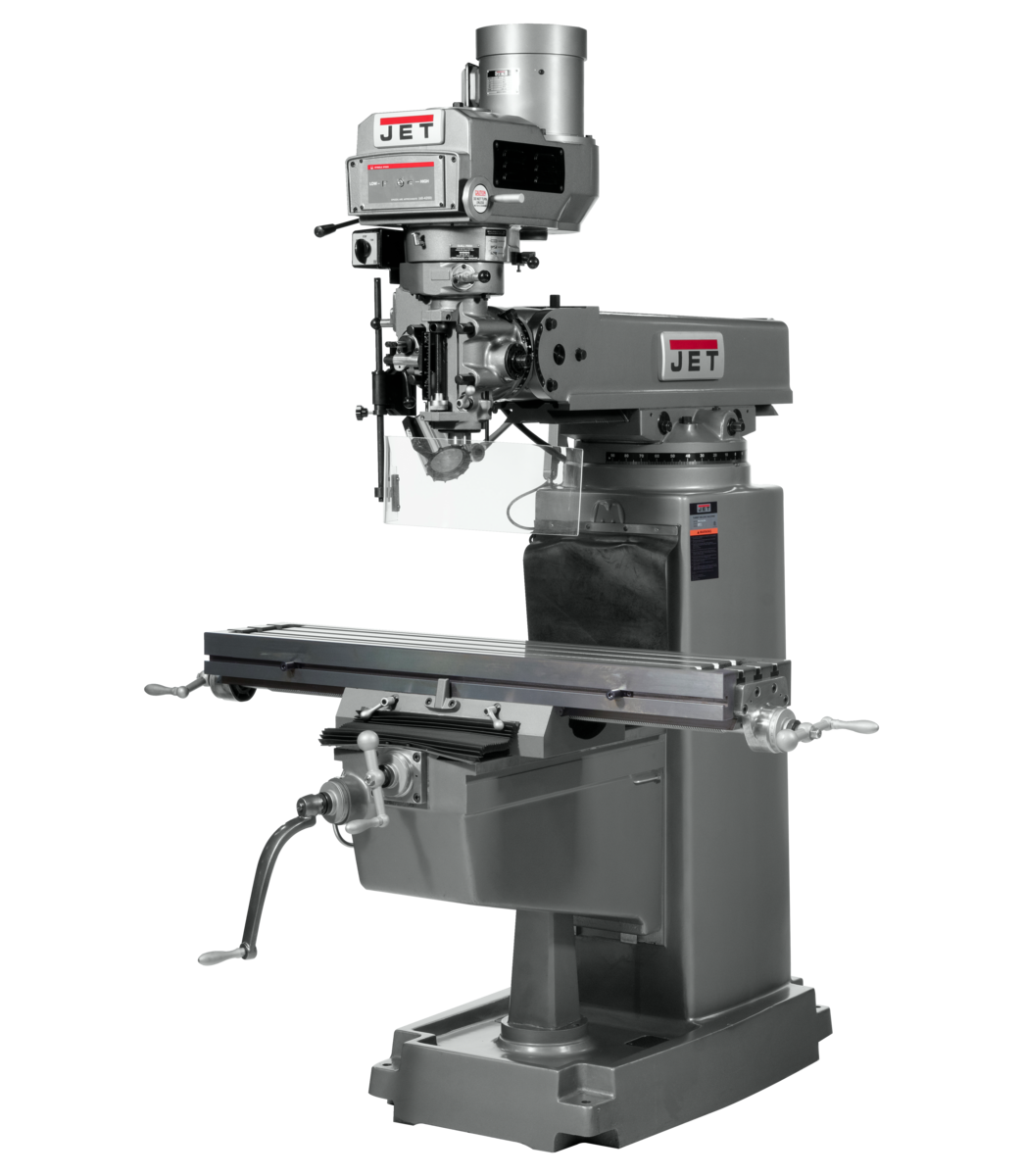

JTM-1050VS2 Mill With ACU-RITE 203 DRO With X-Axis Powerfeed, Power Draw Bar and 8" Riser Block

JTM-1050VS2 Mill With ACU-RITE 203 DRO With X-Axis Powerfeed, Power Draw Bar and 8" Riser Block

Product SKU: 690235

MSRP Price: $22999

Regular price $22,999.00 USD
Regular price $22,999.00 USD Sale price $22,999.00 USD
Sale Sold out

Free Shipping Available!

Featuring Meehanite® castings, a heavy-duty hardened and ground 10” x 50” table, and high precision class 7 precision bearings support the spindle, this Variable Speed Milling Machine provides consistent and reliable operation. An internal coolant tank is built into base for use with a coolant system (coolant pump not included). The newly designed column and base incorporates a rigid, robust design that is easily leveled without lifting the machine. JET Mills have features you've come to expect and are backed by the industry-leading JET Two Year Warranty.

Stock Number 690235
Collet Capacity 1/8 - 7/8
Distance Spindle to Column (Max.) (In.) 26
Max Distance Spindle to Table (In.) 19
Model Number JTM-1050VS2
Motor (HP) 3 HP, 230/460V, 3Ph
Number of Axis 2
Overall Dimensions (L x W x H) (In.) 96 x 78 x 88
Power Draw Bar Pneumatic
Powerfeed X-Axis
Prop 65 Cancer and Reproductive Harm
Quill Diameter (In.) 3-3/8
Quill Down Feed Rates (IPR) .0015 - .003 - .006
Range of Spindle Speeds (RPM) 70 - 3,800
Spindle Taper (In. x TPI) R-8
Spindle Travel (In.) 5
Style (Type) Variable Speed R8
T-Slot Centers (In.) 2-1/2
Table Cross Travel (In.) 15-1/4
Table Longitudinal Travel (In.) 35
Table Longitudinal Travel With Powerfeed (In.) 29-3/4
Table Size (L x W) (In.) 10 x 50
Travel of Knee (In.) 14-1/4
Travel of Ram (In.) 20-1/2
Weight (Lbs.) 2900
Work Table Weight Capacity (Lbs.) 720
View full details

Jet - JTM-1050VS2 Mill With ACU-RITE 203 DRO With X-Axis Powerfeed, Power Draw Bar and 8" Riser Block

Product Details

Features

- Adjustable gibs throughout
- Chrome lead screws on X and Y axis
- Chrome-plated motor shaft with bearing support at end
- Hardened and ground square vertical knee ways and cross ways
- Heavy duty motor drive
- Locks on all moveable surfaces
- One shot lubrication system
- Spindle head is internally cooled
- Three stage power downfeed with automatic stop
- Tolerance test sheet included

Shipping Details

Shipping Type: LTL - Doc Del Only

Warranty & Legal

Warranty: 2 Year
Prop 65 (CA Only): Cancer and Reproductive Harm
